CSG-670 - Echo Cut-Off Saw (Type 1E) (SN: 001001 - 999999) Engine, Crankcase, Cylinder Cover Parts Diagram

Cut-Off Saw (Type 1E)

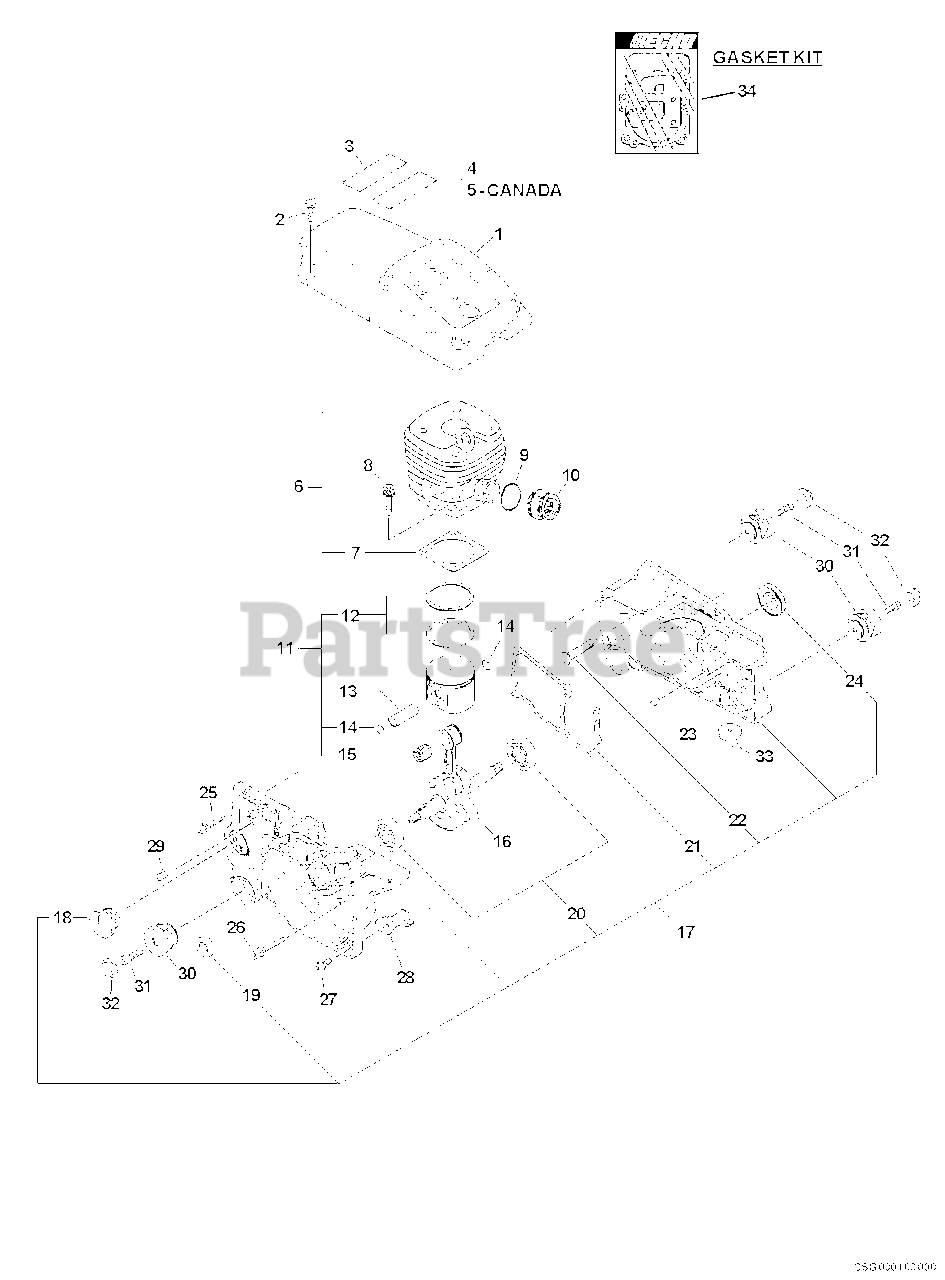

Engine, Crankcase, Cylinder Cover Parts Diagram

  • Title
1

Echo 10150607061

COVER, ENGINE

$71.99

$

Usually ships in 2-4 days

0

2

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

3

Echo 89034407060

LABEL - CAUTION

$1.49

$

Usually ships in 2-4 days

0

4

Echo 89017807060

LABEL - CAUTION

$2.99

$

Usually ships in 2-4 days

0

5

Echo 89031707060

LABEL - CAUTION

$1.99

$

Usually ships in 2-4 days

0

6

Echo 10100132431

CYLINDER KIT

Note: Includes ITEM 7

$230.99

$

Usually ships in 2-4 days

0

7

Echo 10101032431

GASKET, CYLINDER

$2.49

$

In Stock, only 1 left!

0

8

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

$1.99

$

In Stock, only 3 left!

0

10

Echo 13051032430

BELLOWS, INTAKE

$18.99

$

Usually ships in 2-4 days

0

11

Echo 10000032432

PISTON KIT

Note: Includes ITEMS 12-15

$100.99

$

In Stock, only 1 left!

0

12

Echo 10001132431

RING, PISTON

$12.99

$

Usually ships in 2-4 days

0

13

Echo 10001332430

PIN, PISTON

$7.99

$

Usually ships in 2-4 days

0

14

Echo 10001500230

RING, RETAINING

$0.99

$

Usually ships in 2-4 days

0

15

Echo 10001232430

BEARING, NEEDLE

$13.99

$

Usually ships in 2-4 days

0

16

Echo 10010006061

CRANKSHAFT ASSY

$208.99

$

Usually ships in 2-4 days

0

17

Echo 10020407062

CRANKCASE KIT
(Superseded to 10020407065)

Note: INCLUDES ITEMS 19-24

$198.99

$

Usually ships in 2-4 days

0

18

Echo 43601307061

CAP, OIL TANK

$4.49

$

In Stock, only 1 left!

0

19

Echo 10021219830

SEAL, OIL

$5.49

$

In Stock, only 1 left!

0

20

Echo 90081036202

BEARING, BALL - 6202

$9.99

$

In Stock, Qty 6

0

21

Echo 10024232430

GASKET, CRANKCASE

$5.99

$

Usually ships in 2-4 days

0

22

Echo 43301106060

STUD, GUIDE BAR

$15.99

$

Usually ships in 2-4 days

0

23

Echo 10021502830

PIN - LOCATING

$0.99

$

Usually ships in 2-4 days

0

24

Echo 10021232430

SEAL, OIL

$5.99

$

Usually ships in 2-4 days

0

25

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

26

Echo 90016205035

SCREW - 5X35

$1.49

$

In Stock, Qty 6

0

27

Echo 90023805014

SCREW - 5X14

$0.99

$

In Stock, Qty 12

0

28

$15.99

$

In Stock, only 1 left!

0

29

Echo 43611413930

VENT, TANK

$6.49

$

Usually ships in 2-4 days

0

30

$14.99

$

Usually ships in 2-4 days

0

31

Echo 90016205014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

32

Echo 10091819830

CAP, CUSHION

$1.99

$

In Stock, Qty 9

0

33

Echo 10025132430

CUSHION - A

$1.99

$

In Stock, only 2 left!

0

34

Echo 88900032530

GASKET KIT

$12.99

$

Usually ships in 2-4 days

0
