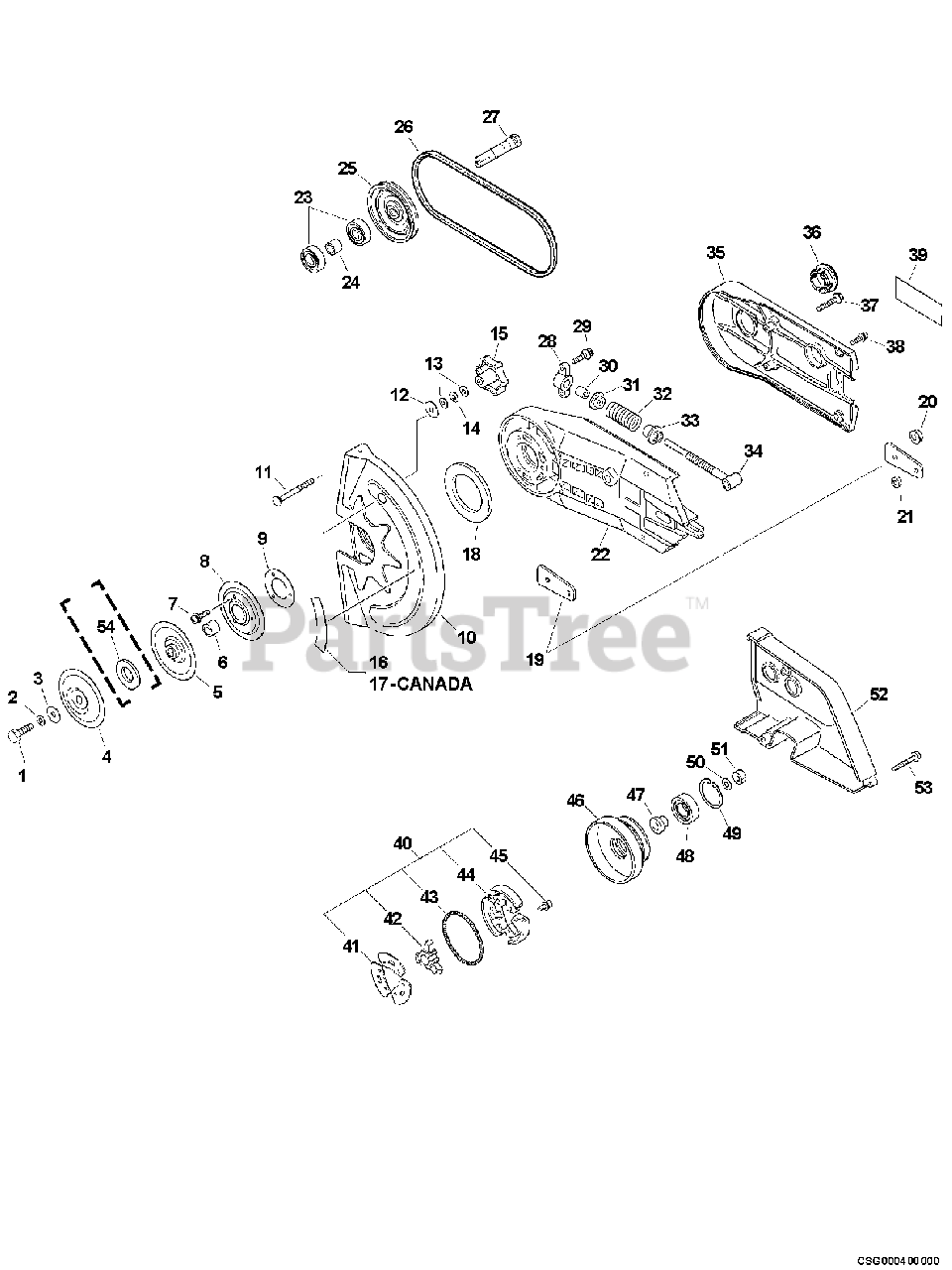

CSG-670 - Echo Cut-Off Saw (Type 1E) (SN: 001001 - 999999) Blade Cover, Arm Cover, Belt, Clutch Parts Diagram

Cut-Off Saw (Type 1E)

Blade Cover, Arm Cover, Belt, Clutch Parts Diagram

  • Title
1

Echo V206000160

BOLT - 10

$4.99

$

Usually ships in 2-4 days

0

2

Echo 90060500010

LOCKWASHER - 10

$0.99

$

In Stock, Qty 9

0

3

$4.99

$

Usually ships in 2-4 days

0

4

Echo 61101507062

FLANGE, CUTTER

$53.99

$

Usually ships in 2-4 days

0

5

Echo 61101407062

FLANGE, CUTTER

$36.99

$

Usually ships in 2-4 days

0

6

$11.99

$

Usually ships in 2-4 days

0

7

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 6

0

8

Echo C371000000

PLATE, CUTTER COVER

$11.99

$

Usually ships in 2-4 days

0

9

$1.99

$

Usually ships in 2-4 days

0

10

Echo 68901007061

COVER, BLADE

$148.99

$

Usually ships in 2-4 days

0

11

Echo 68902006060

BOLT - 10X70

$7.99

$

Usually ships in 2-4 days

0

12

$2.49

$

Usually ships in 2-4 days

0

13

Echo 90060000010

WASHER - 10

$0.99

$

In Stock, Qty 20+

0

14

Echo 90060500010

LOCKWASHER - 10

$0.99

$

In Stock, Qty 9

0

$32.99

$

Usually ships in 2-4 days

0

16

Echo 89018807060

LABEL - CAUTION
(Superseded to Discontinued)

$

$

Not available

17

$7.99

$

Usually ships in 2-4 days

0

18

$13.99

$

Usually ships in 2-4 days

0

19

Echo 61111706060

SPACER, ARM

$12.99

$

Usually ships in 2-4 days

0

20

Echo 43301912330

NUT - FLANGE
(Superseded to V265000200)

$1.99

$

In Stock, Qty 20+

0

21

Echo 61121906060

WASHER - 8

$3.99

$

Usually ships in 2-4 days

0

22

Echo 61111007060

COVER, V-BELT

$130.99

$

Usually ships in 2-4 days

0

23

Echo 90081206203

BEARING, BALL - 6203

$16.99

$

Usually ships in 2-4 days

0

24

Echo 61101106060

SPACER
(Superseded to Discontinued)

$

$

Not available

25

$40.99

$

Usually ships in 2-4 days

0

26

$54.99

$

Usually ships in 2-4 days

0

27

$38.99

$

Usually ships in 2-4 days

0

28

Echo 61121305260

SUPPORT
(Superseded to Discontinued)

$

$

Not available

29

Echo 90023805020

SCREW - 5X20

$0.99

$

Usually ships in 2-4 days

0

30

Echo 61121805260

SPACER, SHAFT
(Superseded to Discontinued)

$

$

Not available

31

Echo 61121705260

SEAT, SPRING
(Superseded to Discontinued)

$

$

Not available

32

Echo 61121605260

SPRING, ADJUST

$3.49

$

Usually ships in 2-4 days

0

33

Echo 61121405260

ADJUSTER

$13.99

$

Usually ships in 2-4 days

0

34

Echo 61121506060

ROD, ADJUST

$21.99

$

Usually ships in 2-4 days

0

35

Echo 61111107060

COVER, ARM - FRONT

$13.99

$

Usually ships in 2-4 days

0

36

$2.49

$

Usually ships in 2-4 days

0

37

Echo 90023805025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

38

Echo 90023805020

SCREW - 5X20

$0.99

$

Usually ships in 2-4 days

0

39

Echo 89011807060

LABEL - ECHO

$2.99

$

Usually ships in 2-4 days

0

40

Echo 17500006061

CLUTCH ASSY

$101.99

$

Usually ships in 2-4 days

0

41

Echo 17501916130

PLATE, CLUTCH

$3.49

$

Usually ships in 2-4 days

0

42

Echo 17501616130

HUB, CLUTCH

$29.99

$

Usually ships in 2-4 days

0

43

Echo 17501832430

SPRING, CLUTCH

$2.99

$

In Stock, only 1 left!

0

44

Echo 17500232431

CLUTCH SHOE SET

$61.99

$

In Stock, only 1 left!

0

45

Echo 90010504006

SCREW - 4X6

$0.99

$

In Stock, Qty 6

0

46

Echo 17500506060

DRUM, CLUTCH

$99.99

$

In Stock, only 1 left!

0

47

$18.99

$

In Stock, only 1 left!

0

48

Echo 90081206201

BEARING, BALL - 6201

$12.99

$

In Stock, only 2 left!

0

49

Echo 90070200032

RING, RETAINING - 32

$1.99

$

In Stock, Qty 13

0

50

Echo 17504403430

WASHER, CLUTCH

$6.99

$

Usually ships in 2-4 days

0

51

Echo 61032003830

NUT - 8 -- LEFT HAND

$4.49

$

In Stock, only 3 left!

0

52

Echo 61111607060

COVER, ARM

$17.99

$

In Stock, only 1 left!

0

53

Echo 90023805025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

54

Echo 61102207061

WHEEL ADAPTER - 25mm

Note: AVAILABLE SEPARATELY

$5.99

$

Usually ships in 2-4 days

0
