CS6-911519 - Kohler Command PRO Engine, Made for Vietnam, 6hp, 4.47kW Crankcase 2-7-12 TP-2504 Parts Diagram

Command PRO Engine, Made for Vietnam, 6hp, 4.47kW

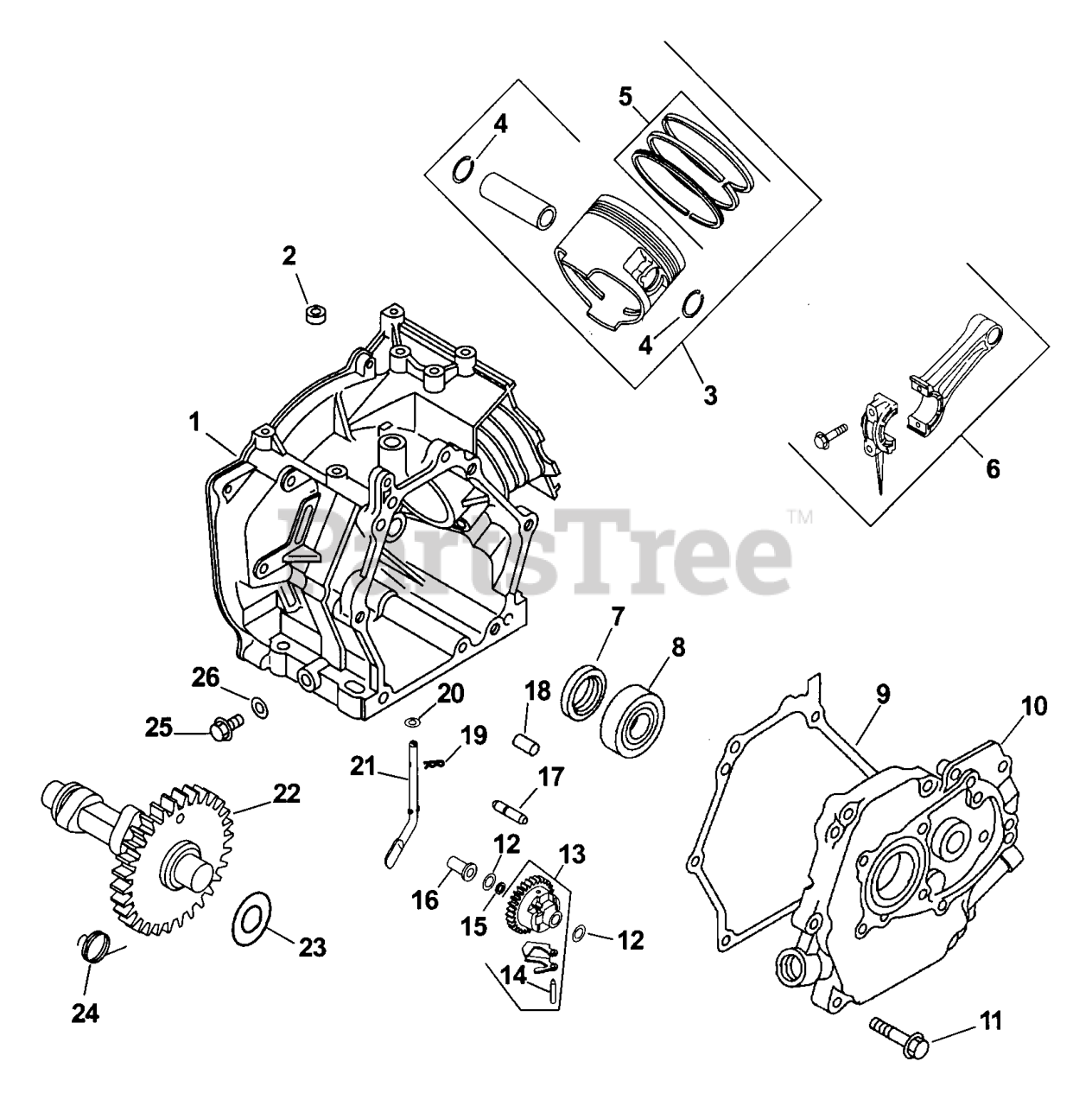

Crankcase 2-7-12 TP-2504 Parts Diagram

  • Title
1

Kohler 63 561 23-S

- DISCONTINUED

$

$

Not available

2

Kohler 63 032 07-S

SEAL, GOVERNOR CROSS SHAFT

$4.99

$

Usually ships in 2-5 days

0

3

Kohler 63 874 10-S

PISTON W/RING SET (STD)

$199.99

$

Usually ships in 2-5 days

0

6387411-S

Kohler 63 874 11-S

PISTON W/RING SET ( .25MM) - DISCONTINUED

$

$

Not available

6387412-S

Kohler 63 874 12-S

PISTON W/RING SET (+.50MM)

$

$

Not available

4

Kohler 63 018 03-S

RING, RETAINER

$2.49

$

Usually ships in 2-5 days

0

5

Kohler 63 108 16-S

STANDARD RING SET

$56.99

$

Usually ships in 2-5 days

0

6310817-S

Kohler 63 108 17-S

0.25MM RING SET

$50.99

$

Usually ships in 2-5 days

0

6310812-S

Kohler 63 108 12-S

RING SET, (.50MM) USE 63 108 18-S
(Superseded to 63 108 18-S)

$

$

Not available

6

Kohler 63 067 02-S

CONNECTING ROD

$128.99

$

Usually ships in 2-5 days

0

7

Kohler 63 032 06-S

SEAL, FRONT OIL

$15.99

$

Usually ships in 2-5 days

0

8

$37.99

$

Usually ships in 2-5 days

0

9

Kohler 63 041 15-S

GASKET, C.P.

$14.99

$

In Stock, only 1 left!

0

10

Kohler 63 009 07-S

CLOSURE PLATE - DISCONTINUED

$

$

Not available

11

Kohler 63 086 26-S

SCREW, FLANGE

$2.49

$

Usually ships in 2-5 days

0

12

$3.49

$

In Stock, only 2 left!

0

13

Kohler 63 043 07-S

GOVERNOR GEAR ASSEMBLY

Note: (Includes 14)

$44.99

$

Usually ships in 2-5 days

0

15

Kohler 63 018 01-S

SNAP RING

$2.49

$

Usually ships in 2-5 days

0

16

$4.99

$

Usually ships in 2-5 days

0

17

Kohler 63 144 08-S

SHAFT, FLYWEIGHT

$9.49

$

Usually ships in 2-5 days

0

18

Kohler 63 380 04-S

DOWEL PIN

$

$

Not available

$

$

Not available

20

$2.49

$

Usually ships in 2-5 days

0

21

Kohler 63 144 07-S

SHAFT, GOV CROSS

$22.99

$

Usually ships in 2-5 days

0

22

$

$

Not available

24

Kohler 63 089 01-S

SPRING, ACR

$8.49

$

Usually ships in 2-5 days

0

25

Kohler 63 139 07-S

PLUG, DRAIN

$3.49

$

Usually ships in 2-5 days

0

26

$3.49

$

Usually ships in 2-5 days

0

6321103-S

Kohler 63 211 03-S

BOLT, CONN ROD

$2.99

$

In Stock, only 1 left!

0

6346817-S

$

$

Not available
