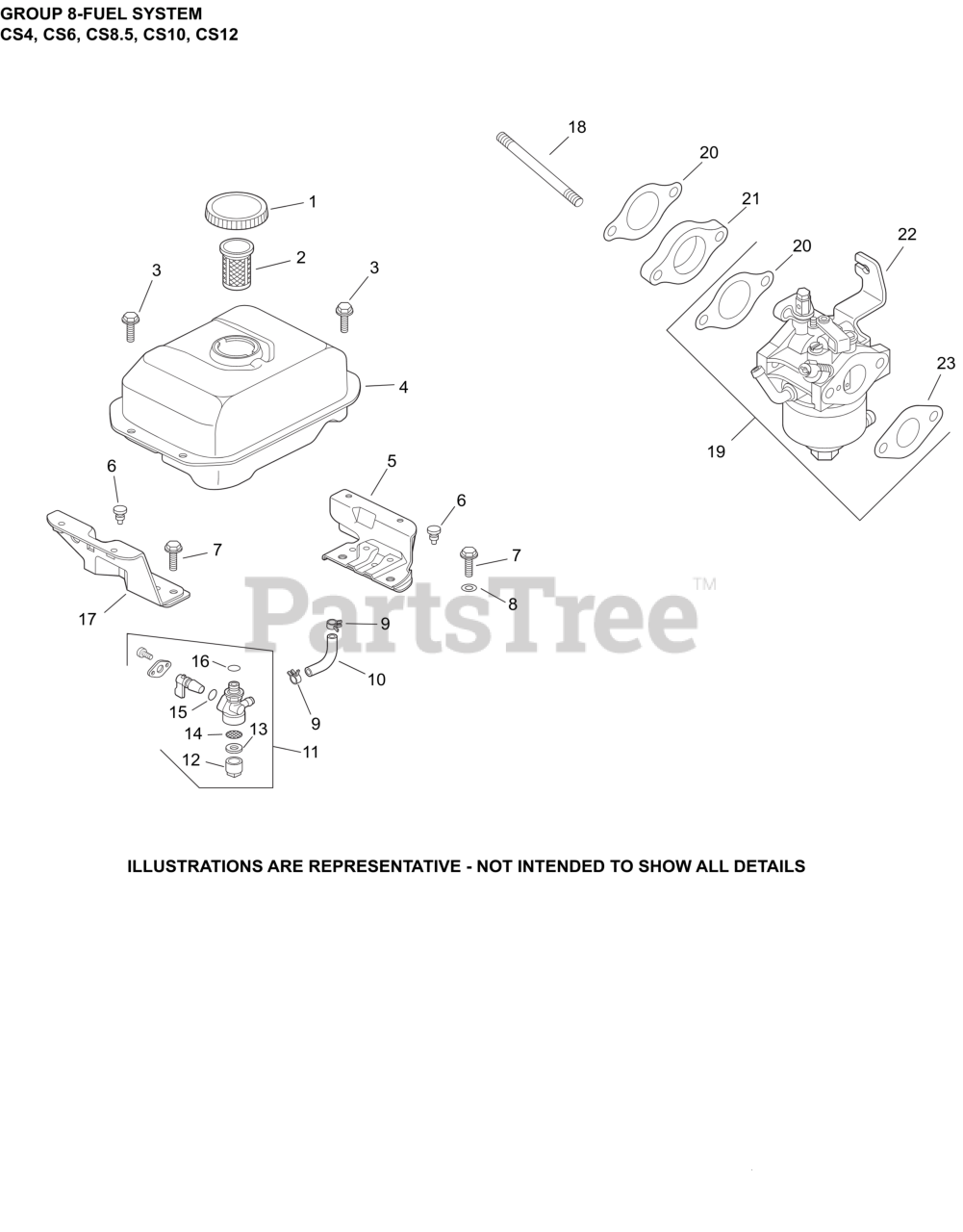

CS6-911518 - Kohler Command PRO Engine, Basic Version, 6hp, 4.47kW 08 Fuel System Parts Diagram

Command PRO Engine, Basic Version, 6hp, 4.47kW

08 Fuel System Parts Diagram

  • Title

1

Kohler 63 173 03-S

CAP, FUEL TANK

$25.99

$

Usually ships in 2-5 days

0

2

Kohler 63 444 01-S

STRAINER

$15.99

$

Usually ships in 2-5 days

0

3

Kohler 63 086 21-S

SCREW

$

$

Not available

4

Kohler 63 065 02-S

TANK, FUEL

$291.99

$

Usually ships in 2-5 days

0

5

Kohler 63 126 04-S

BRACKET, FUEL TANK

$35.99

$

Usually ships in 2-5 days

0

6

Kohler 63 139 04-S

PLUG

$2.49

$

Usually ships in 2-5 days

0

7

Kohler 63 086 14-S

SCREW

$2.49

$

In Stock, only 4 left!

0

8

Kohler 63 468 10-S

WASHER

$4.99

$

Usually ships in 2-5 days

0

9

Kohler 63 154 02-S

CLIP

$2.99

$

Usually ships in 2-5 days

0

10

Kohler 63 353 01-S

LINE, FUEL-DISCONTINUED

$

$

Not available

11

Kohler 63 462 02-S

VALVE, FUEL COCK ASSEMBLY

$46.99

$

In Stock, only 1 left!

0

12

Kohler 63 050 01-S

CUP, FILTER

$5.49

$

In Stock, only 1 left!

0

13

Kohler 63 041 09-S

GASKET

$3.49

$

In Stock, only 1 left!

0

14

Kohler 63 050 02-S

FILTER SCREEN-DISCONTINUED

$

$

Not available

16

Kohler 63 041 10-S

GASKET

$3.99

$

Usually ships in 2-5 days

0

17

Kohler 63 126 03-S

BRACKET-FUEL TANK

$29.99

$

Usually ships in 2-5 days

0

18

Kohler 63 072 03-S

STUD, CARBURETOR

$3.49

$

In Stock, only 1 left!

0

19

Kohler 63 853 05-S

KIT, CARBURETOR W/GASKET (CS6)

$220.99

$

In Stock, only 2 left!

0

20

Kohler 63 041 19-S

GASKET, INTAKE

$2.99

$

In Stock, Qty 13

0

21

Kohler 63 164 02-S

MANIFOLD, INTAKE

$21.99

$

In Stock, only 1 left!

0

NI

Kohler 63 032 23-S

SEAL, GAS CAP

$11.99

$

Usually ships in 2-5 days

0

NI

Kohler 63 041 28-S

GASKET, BOWL

$11.99

$

Usually ships in 2-5 days

0

NI

Kohler 63 041 29-S

GASKET, BOWL SCREW

$3.49

$

Usually ships in 2-5 days

0

NI

Kohler 63 086 71-S

SCREW, FLOAT BOWL

$8.99

$

Usually ships in 2-5 days

0

NI

Kohler 63 086 86-S

SCREW, PAN HEAD

$2.49

$

Usually ships in 2-5 days

0

NI

Kohler 63 153 09-S

O-RING, FUEL VALVE

$5.99

$

Usually ships in 2-5 days

0

NI

Kohler 63 173 07-S

CAP, CARBURETOR ADJUSTING

$

$

Not available
