CS6-911518 - Kohler Command PRO Engine, Basic Version, 6hp, 4.47kW 05 Ignition/Charging Parts Diagram

Command PRO Engine, Basic Version, 6hp, 4.47kW

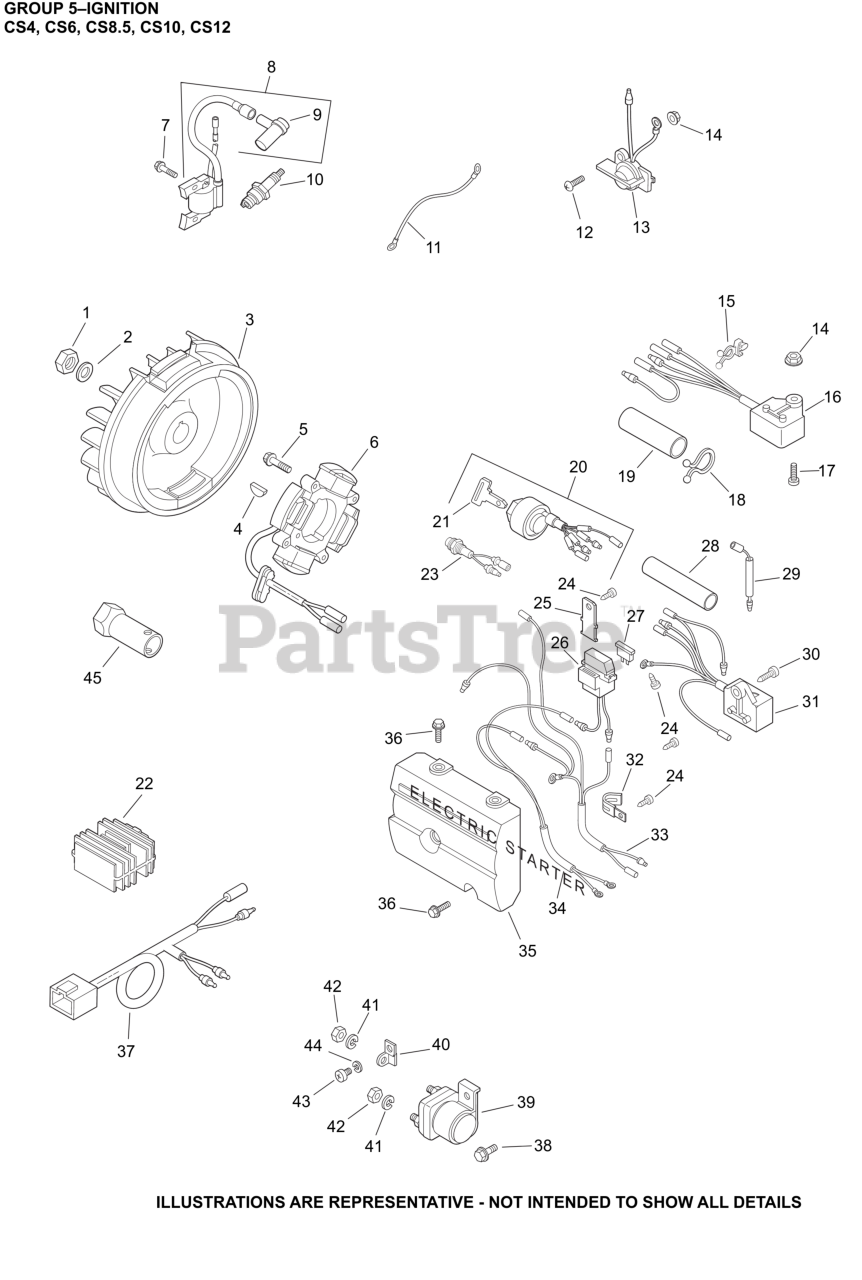

05 Ignition/Charging Parts Diagram

  • Title

1

Kohler 63 100 13-S

NUT, FLYWHEEL

$5.99

$

Usually ships in 2-5 days

0

2

Kohler 63 468 15-S

WASHER, F.W.

$2.49

$

Usually ships in 2-5 days

0

3

Kohler 63 025 03-S

FLYWHEEL, MANUAL ST - (#DSC)

$

$

Not available

4

Kohler 63 340 02-S

KEY, WOODRUFF

$11.99

$

In Stock, only 1 left!

0

7

Kohler 63 086 20-S

SCREW

$2.49

$

In Stock, only 1 left!

0

8

Kohler 63 755 06-S

IGNITION MODULE KIT-USE 63 755 40-S
(Superseded to 63 755 40-S)

$173.99

$

Usually ships in 2-5 days

0

9

Kohler 63 173 02-S

CAP ASSEMBLY

$32.99

$

Usually ships in 2-5 days

0

10

Kohler 66 132 01-S

SPARK PLUG

$8.99

$

Usually ships in 2-5 days

0

11

Kohler 63 518 07-S

LEAD,KILL

$32.99

$

Usually ships in 2-5 days

0

13

Kohler 63 099 02-S

STOP SWITCH

$34.99

$

Usually ships in 2-5 days

0

14

Kohler 63 100 05-S

NUT, STOP SWITCH-DISCONTINUED

$

$

Not available

15

Kohler 63 237 02-S

CLAMP, WIRE

$

$

Not available

15

Kohler 63 237 09-S

CLAMP

$

$

Not available

16

Kohler 63 099 11-S

OIL SWITCH ASSEMBLY -USE 63 099 03-S
(Superseded to 63 099 03-S)

$88.99

$

Usually ships in 2-5 days

0

19

Kohler 63 431 05-S

SLEEVE, WIRING

$

$

Not available

23

Kohler 63 352 01-S

OIL LIGHT

$98.99

$

Usually ships in 2-5 days

0
