CS6-911518 - Kohler Command PRO Engine, Basic Version, 6hp, 4.47kW 02 CrankCase Parts Diagram

Command PRO Engine, Basic Version, 6hp, 4.47kW

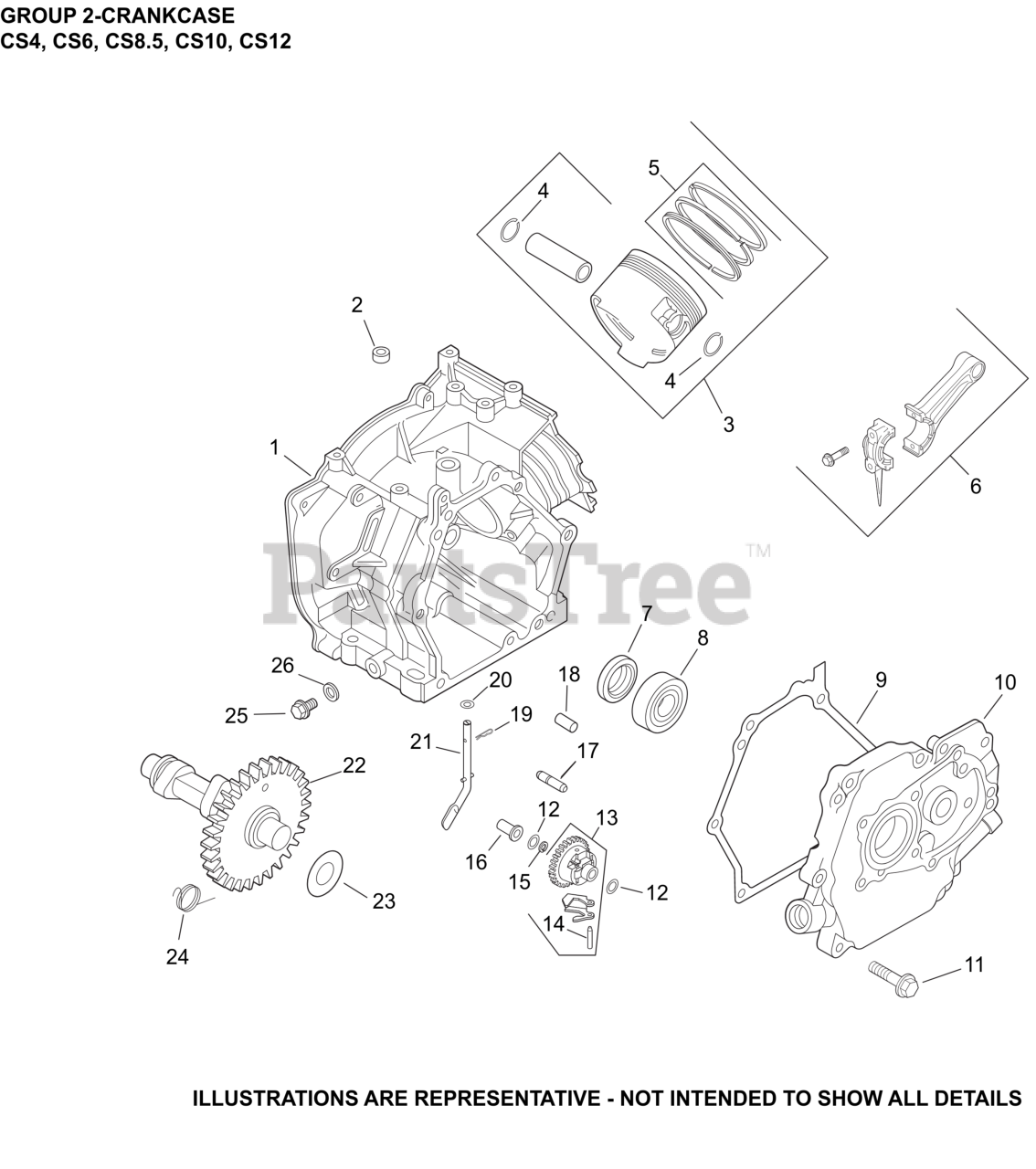

02 CrankCase Parts Diagram

  • Title

2

Kohler 63 032 07-S

SEAL, GOVERNOR CROSS SHAFT

$4.99

$

Usually ships in 2-5 days

0

3

Kohler 63 874 10-S

PISTON W/RING SET (STD)

$199.99

$

Usually ships in 2-5 days

0

3

Kohler 63 874 11-S

PISTON W/RING SET (+.25MM)-(#DSC)

$

$

Not available

3

Kohler 63 874 12-S

PISTON W/RING SET (+.50MM)-(#DSC)

$

$

Not available

4

Kohler 63 018 03-S

RING, RETAINER

$2.49

$

Usually ships in 2-5 days

0

5

Kohler 63 108 16-S

STANDARD RING SET

$56.99

$

Usually ships in 2-5 days

0

5

Kohler 63 108 17-S

0.25MM RING SET

$50.99

$

Usually ships in 2-5 days

0

6

Kohler 63 067 02-S

CONNECTING ROD

$128.99

$

Usually ships in 2-5 days

0

7

Kohler 63 032 06-S

SEAL, FRONT OIL

$15.99

$

Usually ships in 2-5 days

0

8

Kohler 63 030 05-S

BEARING

$37.99

$

Usually ships in 2-5 days

0

9

Kohler 63 041 15-S

GASKET, C.P.

$14.99

$

In Stock, only 1 left!

0

10

Kohler 63 009 06-S

CLOSURE PLATE, G.R.

$238.99

$

Usually ships in 2-5 days

0

11

Kohler 63 086 26-S

SCREW, FLANGE

$2.49

$

Usually ships in 2-5 days

0

12

Kohler 63 468 01-S

WASHER

$3.49

$

In Stock, only 2 left!

0

13

Kohler 63 043 04-S

GEAR, GOVERNOR -USE 63 043 07-S
(Superseded to 63 043 07-S)

$44.99

$

Usually ships in 2-5 days

0

13

Kohler 63 043 07-S

GOVERNOR GEAR ASSEMBLY

$44.99

$

Usually ships in 2-5 days

0

13

Kohler 63 044 02-S

USE 63 043 07-S GOVR GEAR ASSM
(Superseded to 63 043 07-S)

$44.99

$

Usually ships in 2-5 days

0

14

Kohler 63 380 01-S

PIN - USE APPL GOV GEAR ASSY

$

$

Not available

15

Kohler 63 018 01-S

SNAP RING

$2.49

$

Usually ships in 2-5 days

0

16

Kohler 63 241 03-S

COLLAR

$4.99

$

Usually ships in 2-5 days

0

17

Kohler 63 144 08-S

SHAFT, FLYWEIGHT

$9.49

$

Usually ships in 2-5 days

0

18

Kohler 63 380 04-S

DOWEL PIN

$

$

Not available

19

Kohler 63 154 03-S

CLIP

$

$

Not available

20

Kohler 63 468 08-S

WASHER

$2.49

$

Usually ships in 2-5 days

0

21

Kohler 63 144 07-S

SHAFT, GOV CROSS

$22.99

$

Usually ships in 2-5 days

0

22

Kohler 63 012 02-S

CAMSHAFT

$

$

Not available

23

Kohler 63 422 02-S

SHIM

$2.99

$

Usually ships in 2-5 days

0

24

Kohler 63 089 01-S

SPRING, ACR

$8.49

$

Usually ships in 2-5 days

0

25

Kohler 63 139 07-S

PLUG, DRAIN

$3.49

$

Usually ships in 2-5 days

0

26

Kohler 63 041 14-S

GASKET

$3.49

$

Usually ships in 2-5 days

0

NI

Kohler 63 108 18-S

RING SET, 0.50

$

$

Not available

NI

Kohler 63 211 03-S

BOLT, CONN ROD

$2.99

$

In Stock, only 1 left!

0

NI

Kohler 63 380 09-S

NSS - USE APPLICABLE PISTON/RING SET

$

$

Not available
