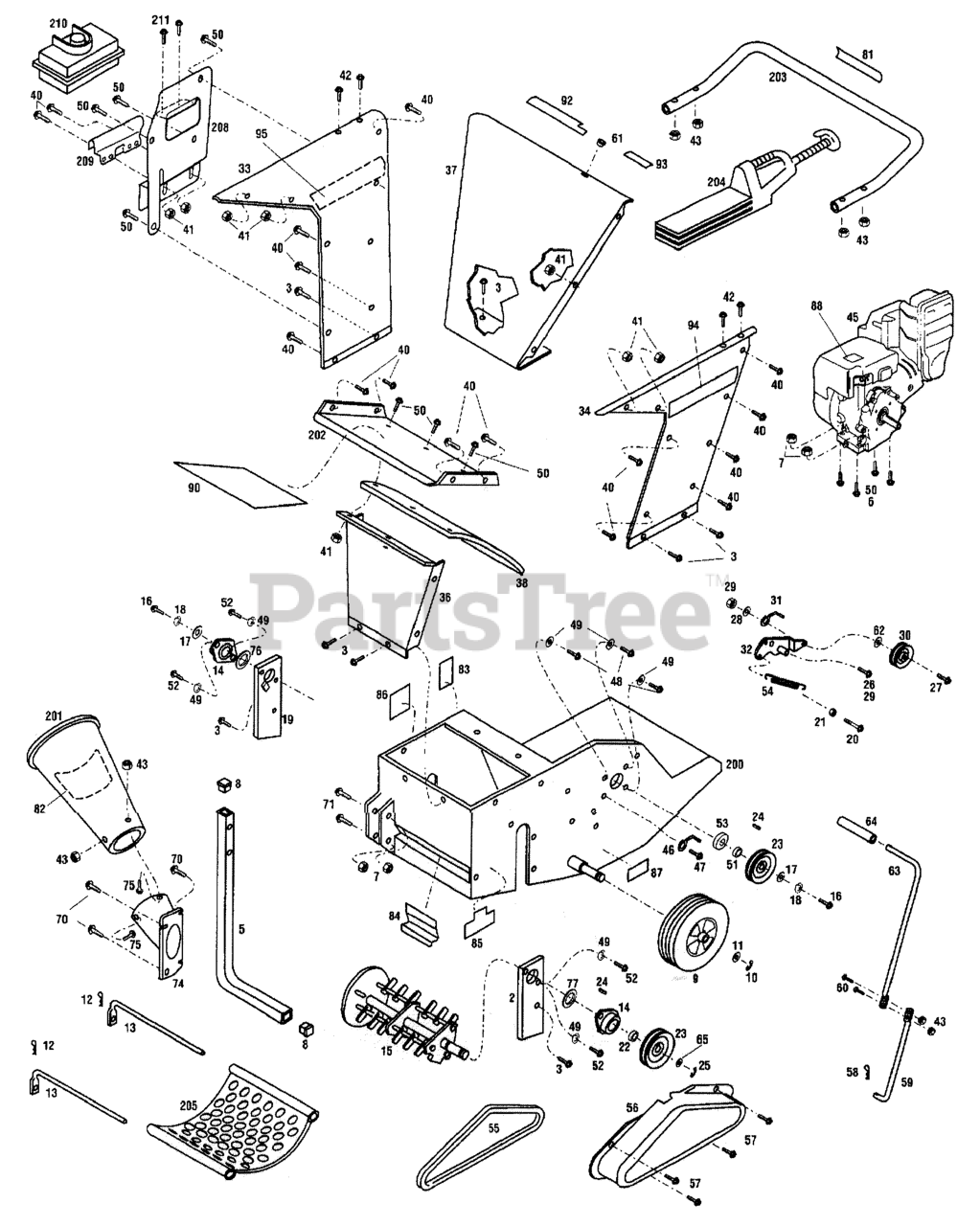

CS47330x37A - Murray Chipper/Shredder (2002) Illustration & Parts List Parts Diagram

Chipper/Shredder

Illustration & Parts List Parts Diagram

  • Title

2

Murray 1773249E110

Assembly, Left Closure

$

$

Currently unavailable

3

Murray CH1186327

Flange Screw, 5/16-18 x 1/2

$

$

Currently unavailable

5

Murray 1762619E701

Front Stand

$

$

Currently unavailable

6

Murray CH1186333

Flange Screw, 5/16-18 x 1-1/2

$

$

Currently unavailable

7

Murray 1186391

Flange Nut, 5/16-18

$

$

Currently unavailable

8

Murray 1762690MA

Plug Cap

$4.49

$

Usually ships in 2-12 days

0

9

Murray 1762684

Wheel

$47.99

$

Usually ships in 2-12 days

0

10

Murray 1908597

Ring, Retaining

$

$

Currently unavailable

11

Murray CH1107386

Washer, Flat

$

$

Currently unavailable

12

Murray 0031X6MA

Clip, Hairpin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

13

Murray 1762618MA

Rod, Retainer

$21.99

$

Usually ships in 2-12 days

0

14

UNKNOWN

$

$

Not available

15

Murray 1762606MA

Cylinder Assembly

Note: (See "Cylinder Assembly" illustration and parts list)

$

$

Not available

16

Murray 1770932

Screw, Hex 3/8-24 x 1-1/4

$

$

Currently unavailable

17

Murray 1701055

Washer, Flat
(Superseded to 1701055SM)

$61.99

$

Usually ships in 2-12 days

0

18

Murray 71062

Washer, Lock

$

$

Not available

19

Murray 1772912E110

Assembly, Right Closure

$

$

Currently unavailable

20

Murray 302636MA

Screw, Hex 5/16-18 x 1-1/4

$4.99

$

Usually ships in 2-12 days

0

21

Murray 71037

Nut, Hex 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

22

Murray 1185788

Collar, Locking

$

$

Currently unavailable

23

Murray 1762644MA

Pulley

$

$

Not available

24

Murray 9326MA

Key, Square

$4.99

$

Usually ships in 2-12 days

0

25

Murray 011X24MA

Ring, External Retaining

$4.49

$

Usually ships in 2-12 days

0

26

Murray 1736221

Bolt, Shoulder 3/8-16

$

$

Currently unavailable

27

Murray CH1100086

Screw, Hex 3/8-16 x 1-3/4

$

$

Currently unavailable

28

Murray 017X53MA

Washer, Flat
(Superseded to 703590)

$3.99

$

In Stock, Qty 10

0

29

Murray CH1110108

Nut, Toplock

$

$

Currently unavailable

30

Murray 1710567

Pulley, Idler

$8.99

$

Usually ships in 2-12 days

0

31

Murray 1762683

Guide, Belt

$

$

Currently unavailable

32

Murray 1762637E701

Assembly, Idler Arm

$

$

Currently unavailable

33

Murray 1762629E110

Panel, Right

$

$

Currently unavailable

34

Murray 1762630E110

Panel, Left

$

$

Currently unavailable

36

Murray 1762632E110

Panel, Front Bottom

$

$

Currently unavailable

37

Murray 1762633E110

Panel, Back

$

$

Currently unavailable

38

Murray 1816034

Flap, Rubber

$

$

Currently unavailable

40

Murray CH1186308

Screw, Flange 1/4-20 x 1/2

$

$

Currently unavailable

41

Murray 1186389

Nut, Flange 1/4-20

$

$

Currently unavailable

42

Murray CH1100811

Screw, Flange 1/4-20 x 1-1/2

$

$

Currently unavailable

43

Murray CH1110106

Nut, Toplock 1/4-20

$

$

Currently unavailable

45

Engine *

$

$

Not available

46

Murray 1752229

Guide, Belt
(Superseded to 1752229YP)

$9.49

$

Usually ships in 2-12 days

0

47

Murray 710097

Screw, Flange 5/16-24 x 3/4

$10.99

$

In Stock, only 1 left!

0

48

Murray CH1100029

Screw, Hex 5/16-24 x 5/8

$

$

Currently unavailable

49

Murray 071060

Washer, Lock

$3.49

$

In Stock, Qty 20+

0

50

Murray CH1186309

Screw, Flange 1/4-20 x 5/8

$

$

Currently unavailable

51

Murray 9935

Shim, Drive Sheave

$

$

Currently unavailable

52

Murray 1915769

Screw, Flange 5/16-18 x 3/4

$

$

Currently unavailable

53

Murray 1762635

Spacer, Drive Shaft

$

$

Currently unavailable

54

Murray 1766972MA

Spring, Extension

$

$

Not available

55

Murray 1762636MA

V-Belt

$25.99

$

In Stock, only 4 left!

0

56

Murray 1762663MA

Cover, Belt

$52.99

$

Usually ships in 2-12 days

0

57

Murray 0025X2MA

Screw
(Superseded to 704130)

$3.99

$

In Stock, Qty 7

0

58

Murray CH1100359

Pin, Cotter

$

$

Currently unavailable

59

Murray 1763105

Rod, Lower Clutch

$

$

Currently unavailable

60

Murray 01X121

Screw, Hex 1/4-20 x 3/4

$

$

Not available

61

Murray 9251

Bushing, Snap

$

$

Currently unavailable

62

Murray 1909311

Washer, Flat

$1.99

$

Usually ships in 2-12 days

0

63

Murray 1763104

Rod, Upper Clutch

$6.99

$

Usually ships in 2-12 days

0

64

Murray 1715685

Grip, Plastic

$1.99

$

Usually ships in 2-12 days

0

65

Murray 1915058

Washer, Thrust

$1.99

$

Usually ships in 2-12 days

0

70

Murray CH1100078

Screw, Flange 5/16-18 x 7/8

$

$

Currently unavailable

71

Murray CH1186334

Screw, Flange 5/16-18 x 1-3/4

$

$

Currently unavailable

74

Murray 1770363E110

Base, Chipper Chute

$

$

Currently unavailable

75

Murray 002X64MA

Bolt, Carriage

$4.49

$

In Stock, only 1 left!

0

76

Murray 1772910MA

Seal, Dust

$5.49

$

Usually ships in 2-12 days

0

77

Murray 1773254MA

Seal, Dust

$5.49

$

Usually ships in 2-12 days

0

81

Murray 48X2071MA

Decal, Combustible Material

$3.49

$

Usually ships in 2-12 days

0

82

Murray 48X2077MA

Decal, Danger

$1.99

$

Usually ships in 2-12 days

0

83

Murray 48X2079MA

Decal, Danger

$

$

Not available

84

Murray 48X2073

Decal, Front Hand Hazard

$

$

Currently unavailable

85

UNKNOWN

$

$

Not available

86

UNKNOWN

$

$

Not available

87

Murray 48X2072

Decal, Warning

$

$

Currently unavailable

88

Murray 48X2078

Decal, Warning Hot Surface

$

$

Currently unavailable

90

Murray 48X2076MA

Decal, Instructions

$4.49

$

Usually ships in 2-12 days

0

92

Murray 48X2074

Decal, Panel

$

$

Currently unavailable

93

UNKNOWN

$

$

Not available

94

Murray 48X4040

Decal, Logo

$

$

Currently unavailable

95

UNKNOWN

$

$

Not available

200

Murray 7401002

Assembly, Mainframe

Note: (Includes Ref. No. 83,84,87 & 88)

$

$

Currently unavailable

201

Murray 7401003

Assembly, Chute

Note: (Incl. Ref 82)

$

$

Currently unavailable

202

Murray 7401004

Assembly, Panel

Note: (Includes Ref. No. 90)

$

$

Currently unavailable

203

Murray 7401005

Assembly, Handlebar

Note: (Includes Ref. No. 81)

$

$

Currently unavailable

204

Murray 1763008MA

Kit, Leaf Tamper

$

$

Not available

205

Murray 1762665

Kit, Screen 3/4"

Note: (Item not included with unit, order separately.)

$

$

Currently unavailable

--

Murray 1762666

Kit, Screen 1"

Note: (Item not included with unit, order separately.)

$

$

Currently unavailable

--

Murray 1762664

Kit, Screen 3/8"

Note: (Item not included with unit, order separately.)

$

$

Currently unavailable

--

Murray 1762667

Kit, Screen 1-3/4"

Note: (Item not included with unit, order separately.)

$

$

Currently unavailable

--

Murray 1762668

Kit, Bar Grate

Note: (Item not included with unit, order separately.)

$

$

Currently unavailable

208

Murray 1918644E110

Bracket, Upper Mounting

$

$

Currently unavailable

209

Murray 1918645E110

Bracket, Lower Mounting

$

$

Currently unavailable

210

Murray 1918646

Tank, Fuel

$166.99

$

In Stock, Qty 10

0

211

Murray 1918673

Screw, Plastite

$1.99

$

Usually ships in 2-12 days

0

--

Murray F-021201L

Book, Instruction

$

$

Currently unavailable
