CS10-931611 - Kohler Command PRO Engine, Made for Gardner, 10hp, 7.46kW Starting System 7-7-13 (TP-2502-A) Parts Diagram

Command PRO Engine, Made for Gardner, 10hp, 7.46kW

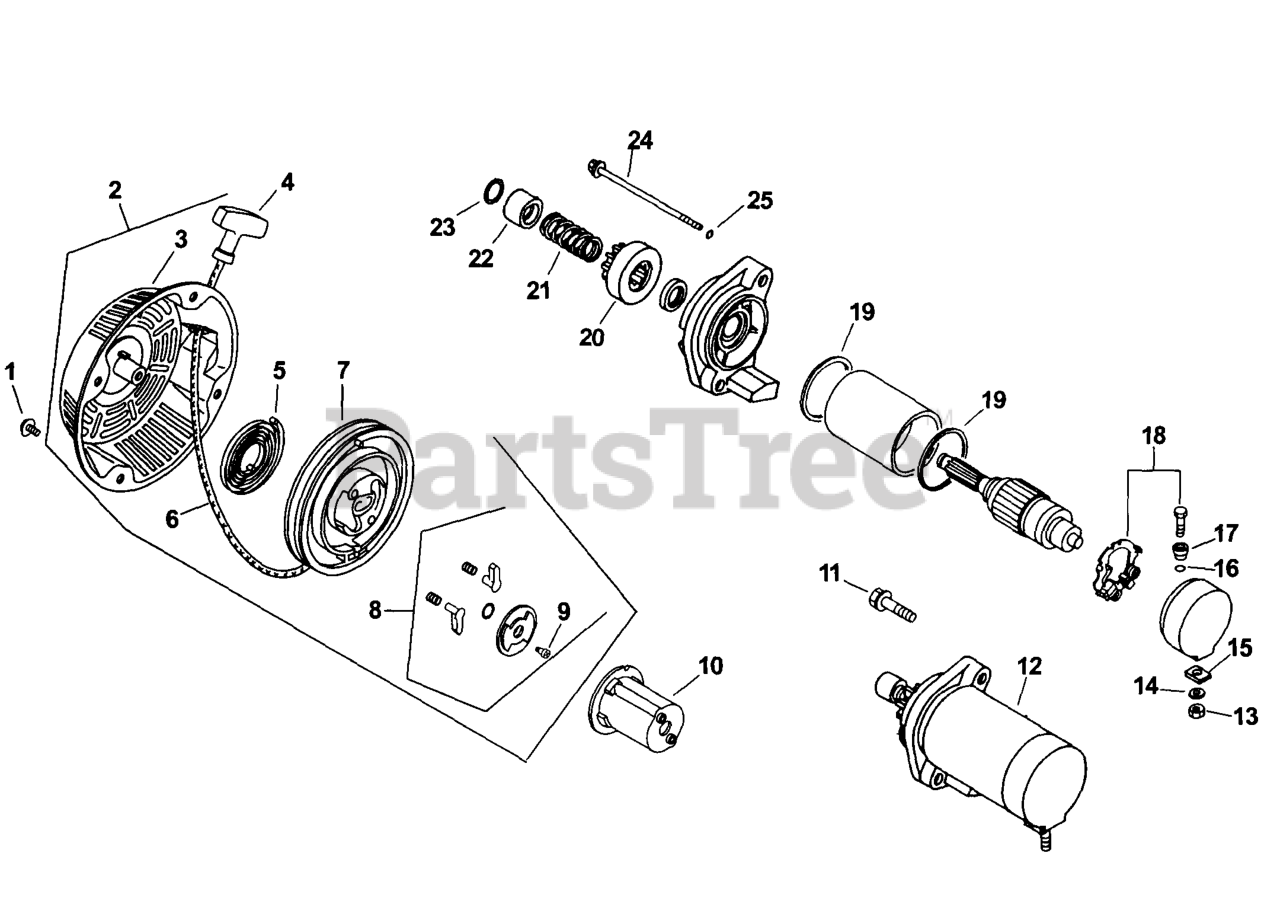

Starting System 7-7-13 (TP-2502-A) Parts Diagram

  • Title

1

Kohler 63 086 19-S

USE 63 086 11-S SCREW
(Superseded to 63 086 11-S)

$2.49

$

Usually ships in 2-5 days

0

2

Kohler 63 165 01-S

RETRACTABLE STARTER

Note: (Includes 3-9)

$181.99

$

Usually ships in 2-5 days

0

3

Kohler 63 081 01-S

HOUSING ASSEMBLY

$

$

Not available

4

Kohler 63 166 01-S

HANDLE

$

$

Not available

5

Kohler 63 089 07-S

SPRING, STARTER

$25.99

$

Usually ships in 2-5 days

0

6

Kohler 63 160 01-S

ROPE, STARTING

$11.99

$

Usually ships in 2-5 days

0

7

Kohler 63 093 01-S

PULLEY

$45.99

$

Usually ships in 2-5 days

0

8

Kohler 63 757 03-S

KIT,PAWL REPAIR - CS8.5,10,12

Note: (Includes 9)

$102.99

$

Usually ships in 2-5 days

0

9

Kohler 63 086 52-S

USE 63 086 18-S SCREW
(Superseded to 63 086 18-S)

$6.49

$

Usually ships in 2-5 days

0

10

Kohler 63 109 01-S

CUP, DRIVE

$38.99

$

Usually ships in 2-5 days

0

6311304-S

Kohler 63 113 04-S

DECAL, RET. STARTER

Note: (Not illustrated)

$11.99

$

Usually ships in 2-5 days

0
