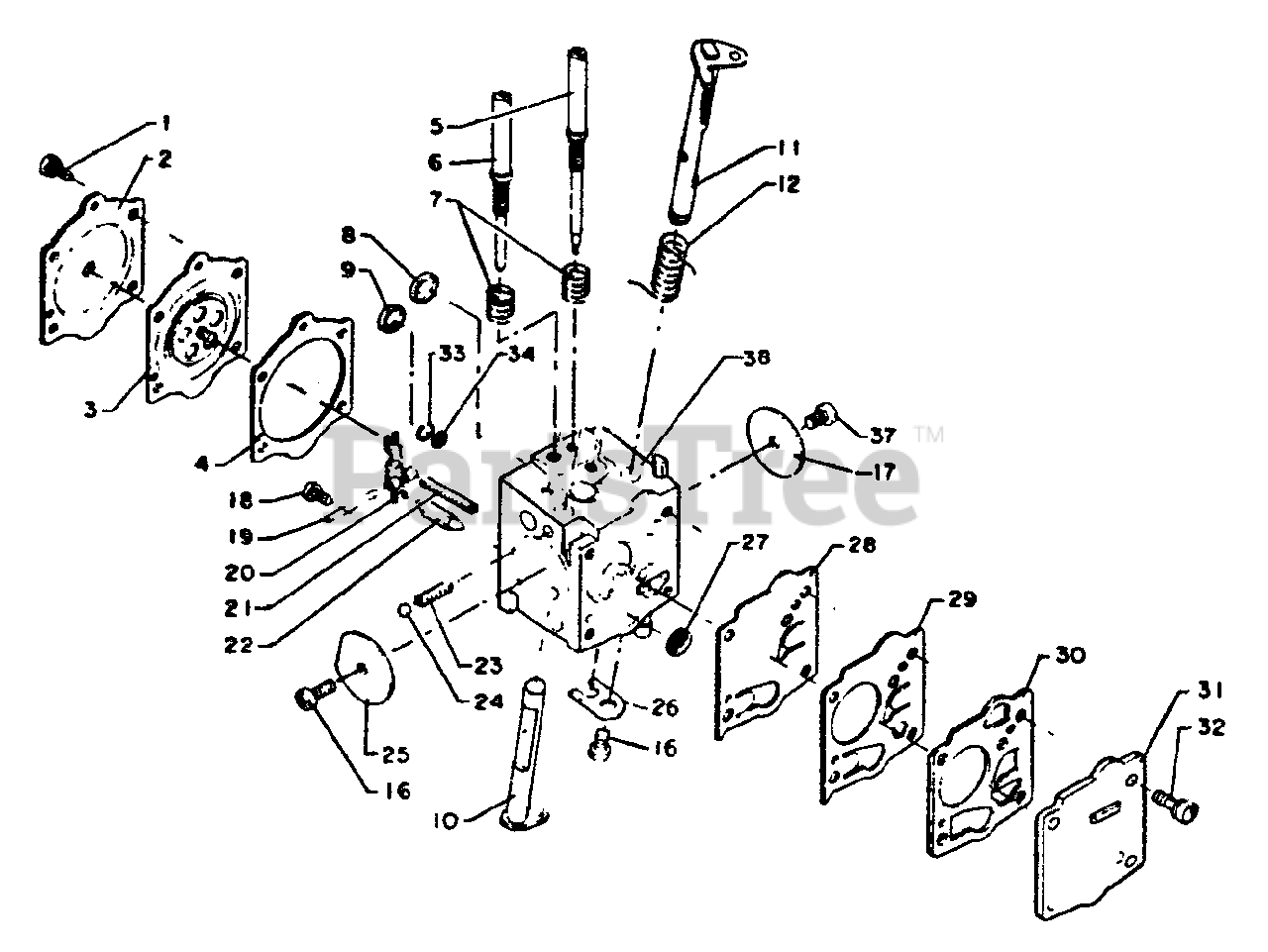

CS-900 EVL - Echo Chainsaw (SN: 06801 - 99999) Carburetor Parts Diagram

Chainsaw

Carburetor Parts Diagram

  • Title

Echo 12300014730

CARBURETOR
(Superseded to Discontinued)

$

$

Not available

1

------------------

SCREW

Note: Included in Repair Kit P/N 12310016430

$

$

Not available

2

Echo 12314210630

COVER, METERING
(Superseded to Discontinued)

$

$

Not available

3

------------------

DIAPHRAGM, METERING

Note: Included in Repair Kit P/N 12310016430 & Gasket/Diaphragm Kit P/N 12310110630

$

$

Not available

4

------------------

GASKET, METERING

Note: Included in Repair Kit P/N 12310016430 & Gasket/Diaphragm Kit P/N 12310110630

$

$

Not available

5

Echo 12311810630

NEEDLE - LOW SPEED
(Superseded to Discontinued)

$

$

Not available

6

Echo 12312010630

NEEDLE - HIGH SPEED
(Superseded to Discontinued)

$

$

Not available

7

------------------

SPRING

Note: Included in Repair Kit P/N 12310016430

$

$

Not available

8

------------------

PLUG, WELCH

Note: Included in Repair Kit P/N 12310016430

$

$

Not available

9

------------------

PLUG, WELCH

Note: Included in Repair Kit P/N 12310016430

$

$

Not available

10

Echo 12313114730

SHAFT, CHOKE
(Superseded to Discontinued)

$

$

Not available

11

Echo 12311714730

SHAFT, THROTTLE
(Superseded to Discontinued)

$

$

Not available

12

Echo 12311310631

SPRING, THROTTLE RETURN
(Superseded to Discontinued)

$

$

Not available

16

Echo 12315410630

SCREW
(Superseded to Discontinued)

$

$

Not available

17

Echo 12311614730

VALVE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

18

------------------

SCREW, METERING LEVER PIN

Note: Included in Repair Kit P/N 12310016430

$

$

Not available

19

------------------

PIN, METERING LEVER

Note: Included in Repair Kit P/N 12310016430

$

$

Not available

20

------------------

LEVER, METERING

Note: Included in Repair Kit P/N 12310016430

$

$

Not available

21

------------------

SPRING, METERING LEVER

Note: Included in Repair Kit P/N 12310016430

$

$

Not available

22

------------------

VALVE, INLET NEEDLE

Note: Included in Repair Kit P/N 12310016430

$

$

Not available

23

Echo 12313510631

SPRING
(Superseded to Discontinued)

$

$

Not available

24

Echo 12313610631

BALL, CHOKE
(Superseded to Discontinued)

$

$

Not available

25

Echo 12313210630

VALVE, CHOKE
(Superseded to Discontinued)

$

$

Not available

26

Echo 12312710631

RING, RETAINING
(Superseded to Discontinued)

$

$

Not available

27

------------------

STRAINER

Note: Included in Repair Kit P/N 12310016430

$

$

Not available

28

------------------

DIAPHRAGM, PURGE

Note: Included in Repair Kit P/N 12310016430 & Gasket/Diaphragm Kit P/N 12310110630

$

$

Not available

29

------------------

DIAPHRAGM

Note: Included in Repair Kit P/N 12310016430 & Gasket/Diaphragm Kit P/N 12310110630

$

$

Not available

30

------------------

GASKET, PURGE

Note: Included in Repair Kit P/N 12310016430 & Gasket/Diaphragm Kit P/N 12310110630

$

$

Not available

31

Echo 12312414730

COVER, PUMP
(Superseded to Discontinued)

$

$

Not available

32

Echo 12311010630

SCREW, PUMP COVER
(Superseded to Discontinued)

$

$

Not available

33

------------------

RING, RETAINING

Note: Included in Repair Kit P/N 12310016430

$

$

Not available

34

------------------

STRAINER

Note: Included in Repair Kit P/N 12310016430

$

$

Not available

37

Echo 12311410630

SCREW

$0.99

$

Usually ships in 2-4 days

0

38

------------------

BODY, CARBURETOR

$

$

Not available

38

Echo 12310016430

REPAIR KIT
(Superseded to Discontinued)

Note: Includes items 1,3,4,7,8,9,18,19,20,21,22,27,28,29,30,33 & 34

$

$

Not available

38

Echo 12310110630

DIAPHRAGM/GASKET KIT
(Superseded to Discontinued)

Note: Includes 3,4,28,29 & 30

$

$

Not available
