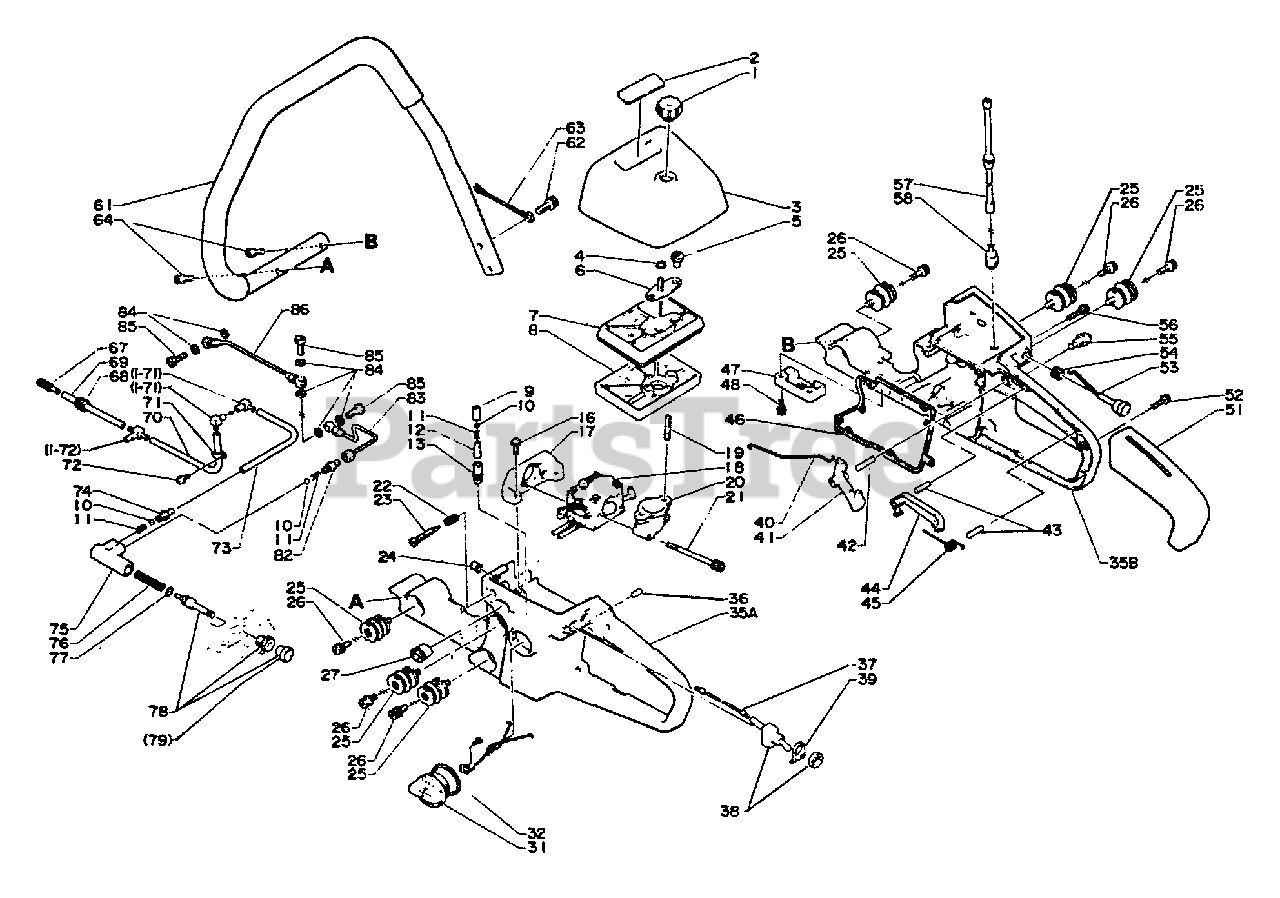

CS-900 EVL - Echo Chainsaw (SN: 00000 - 06800) Handles, Oiler Sys, Fuel Sys, Air Cleaner Parts Diagram

Chainsaw

Handles, Oiler Sys, Fuel Sys, Air Cleaner Parts Diagram

  • Title

1

Echo 13040600330

WINGNUT

$5.99

$

Usually ships in 2-4 days

0

2

Echo 89015114730

PLATE, MODEL
(Superseded to 89015114731)

$

$

Not available

3

Echo 13031314730

COVER, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

4

Echo 90070100011

RING, RETAINING - 11

$0.99

$

In Stock, Qty 7

0

Echo 13030014730

AIR CLEANER ASSY
(Superseded to 13030014731)

$

$

Not available

Echo 13130014730

VENT, FUEL TANK

$5.99

$

Usually ships in 2-4 days

0

9

Echo 13132614730

BREATHER
(Superseded to Discontinued)

$

$

Not available

10

Echo 43701200330

VALVE, BALL

$0.99

$

In Stock, Qty 8

0

11

Echo 43701300330

SPRING, VALVE
(Superseded to V450000290)

$0.99

$

In Stock, Qty 8

0

12

Echo 13132714730

BREATHER
(Superseded to Discontinued)

$

$

Not available

13

Echo 13132014730

CONNECTOR

$1.49

$

Usually ships in 2-4 days

0

16

Echo 90024205014

SCREW - 5X14

$0.99

$

In Stock, Qty 20+

0

17

Echo 13001314730

CASE, CARBURETOR
(Superseded to 13050014730)

$

$

Not available

18

Echo 12300014730

CARBURETOR
(Superseded to Discontinued)

$

$

Not available

19

Echo 13071214730

STUD
(Superseded to Discontinued)

$

$

Not available

20

Echo 13071114730

PIPE - INTAKE
(Superseded to Discontinued)

$

$

Not available

21

Echo 90016205075

SCREW - 5X75

$

$

Not available

22

Echo 12902014730

SPRING
(Superseded to Discontinued)

$

$

Not available

23

Echo 12901314730

SCREW, IDLE ADJUST

$1.49

$

Usually ships in 2-4 days

0

24

Echo 13211501460

GROMMET
(Superseded to 13211501461)

$1.49

$

In Stock, Qty 9

0

25

Echo 10090514730

CUSHION
(Superseded to 10090714730)

$

$

Not available

26

Echo 90016205015

SCREW - 5X15
(Superseded to Discontinued)

$

$

Not available

27

Echo 12901014730

GROMMET
(Superseded to Discontinued)

$

$

Not available

Echo 13100414730

CAP ASSY
(Superseded to 13100414731)

$10.99

$

Usually ships in 2-4 days

0

31

------------------

UNKNOWN

$

$

Not available

32

Echo 90072000029

O-RING - 29

$3.49

$

In Stock, Qty 18

0

35

Echo 35110014730

HANDLE ASSY - REAR
(Superseded to 35110014732)

$

$

Not available

35A

Echo 35110014730

HANDLE ASSY - REAR
(Superseded to 35110014732)

Note: See Ref No. 35, Rear handle set, P/N 35110014730

$

$

Not available

35B

Echo 35110014730

HANDLE ASSY - REAR
(Superseded to 35110014732)

Note: See Ref No. 35, Rear handle set, P/N 35110014730

$

$

Not available

36

Echo 10021502830

PIN - LOCATING

$0.99

$

Usually ships in 2-4 days

0

37

Echo 16202114730

LEAD - GROUND
(Superseded to Discontinued)

$

$

Not available

38

Echo 16340011130

IGNITION SWITCH ASSY

$7.49

$

In Stock, only 1 left!

0

39

Echo 89015714730

LABEL - STOP

$1.49

$

Usually ships in 2-4 days

0

40

Echo 17801114730

ROD, THROTTLE

$2.99

$

Usually ships in 2-4 days

0

41

Echo 17801014730

TRIGGER, THROTTLE

$4.99

$

Usually ships in 2-4 days

0

42

Echo 90034050025

PIN - SPRING -- 5X25
(Superseded to Discontinued)

$

$

Not available

43

Echo 90034040020

PIN - SPRING
(Superseded to Discontinued)

$

$

Not available

44

Echo 17809014730

LOCKOUT, THROTTLE

$3.49

$

Usually ships in 2-4 days

0

45

Echo 17809110531

SPRING, LOCKOUT LEVER

$1.99

$

In Stock, only 1 left!

0

46

Echo 13101114730

GASKET, FUEL TANK
(Superseded to 13101114731)

$3.49

$

Usually ships in 2-4 days

0

47

Echo 43761014730

COVER, PUMP
(Superseded to 43761014731)

$

$

Not available

48

Echo 90024204012

SCREW - 4X12

$0.99

$

In Stock, Qty 20+

0

51

Echo 35111114730

GRIP, HANDLE - REAR

$14.99

$

Usually ships in 2-4 days

0

52

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.49

$

In Stock, Qty 20+

0

53

Echo 17851014730

ROD, CHOKE
(Superseded to Discontinued)

$

$

Not available

54

Echo 17881002830

GROMMET

$0.99

$

Usually ships in 2-4 days

0

55

Echo 17830212330

LATCH, THROTTLE
(Superseded to 17830237930)

$9.99

$

In Stock, only 1 left!

0

56

Echo 90016204020

SCREW - 4X20

$1.49

$

In Stock, Qty 20+

0

57

Echo 13201014730

PIPE - FUEL

$7.49

$

Usually ships in 2-4 days

0

58

Echo 13120500230

FILTER, FUEL
(Superseded to 13120530830)

$9.49

$

In Stock, Qty 20+

0

61

Echo 35160614730

HANDLE - FRONT
(Superseded to 35160614731)

$

$

Not available

62

Echo 90016206020

SCREW - 6X20

$1.49

$

In Stock, only 4 left!

0

63

Echo 16201014730

LEAD - GROUND
(Superseded to 16201014731)

$2.99

$

Usually ships in 2-4 days

0

64

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

67

Echo 43620502832

FILTER, OIL

$8.99

$

Usually ships in 2-4 days

0

68

Echo 13211512330

GROMMET

$1.49

$

In Stock, Qty 20+

0

69

Echo 43720514730

PIPE - 3X6X220 -- BLACK
(Superseded to Discontinued)

Note: RePower BULK OPTION: 90015

$

$

Not available

70

Echo 43721114730

PIPE - 3X6X130

$3.99

$

Usually ships in 2-4 days

0

71

Echo 43741014730

CLIP
(Superseded to Discontinued)

$

$

Not available

72

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 10

0

73

Echo 43722814730

PIPE - OIL

$3.99

$

In Stock, only 1 left!

0

Echo 43710014730

OIL PUMP ASSY

$50.99

$

Usually ships in 2-4 days

0

10

Echo 43701200330

VALVE, BALL

$0.99

$

In Stock, Qty 8

0

11

Echo 43701300330

SPRING, VALVE
(Superseded to V450000290)

$0.99

$

In Stock, Qty 8

0

74

Echo 43701700330

CONNECTOR

$5.49

$

Usually ships in 2-4 days

0

75

Echo 43711000231

BODY, OIL PUMP
(Superseded to 43710200330)

$

$

Not available

76

Echo 43711100231

SPRING, OIL PUMP

$1.99

$

Usually ships in 2-4 days

0

77

Echo 90072000006

O-RING - 6

$1.49

$

In Stock, only 3 left!

0

78

Echo 43710114730

PISTON, OIL PUMP

$12.99

$

Usually ships in 2-4 days

0

79

Echo 43711914730

PUSH BUTTON
(Superseded to 43711914731)

$2.99

$

Usually ships in 2-4 days

0

82

Echo 43705200330

CONNECTOR
(Superseded to Discontinued)

$

$

Not available

83

Echo 43720614730

PIPE - OIL
(Superseded to Discontinued)

Note: ITEM IS NO LONGER AVAILABLE

$

$

Not available

84

Echo 13131000230

GASKET

$0.99

$

In Stock, only 2 left!

0

85

Echo 43722014730

BOLT
(Superseded to 43722014731)

$7.49

$

Usually ships in 2-4 days

0

86

Echo 43720714730

PIPE - OIL
(Superseded to Discontinued)

$

$

Not available
