CS-900 EVL - Echo Chainsaw (SN: 00000 - 06800) Engine, Starter, Ignition, Clutch, Exhaust, Chain Brake Parts Diagram

Chainsaw

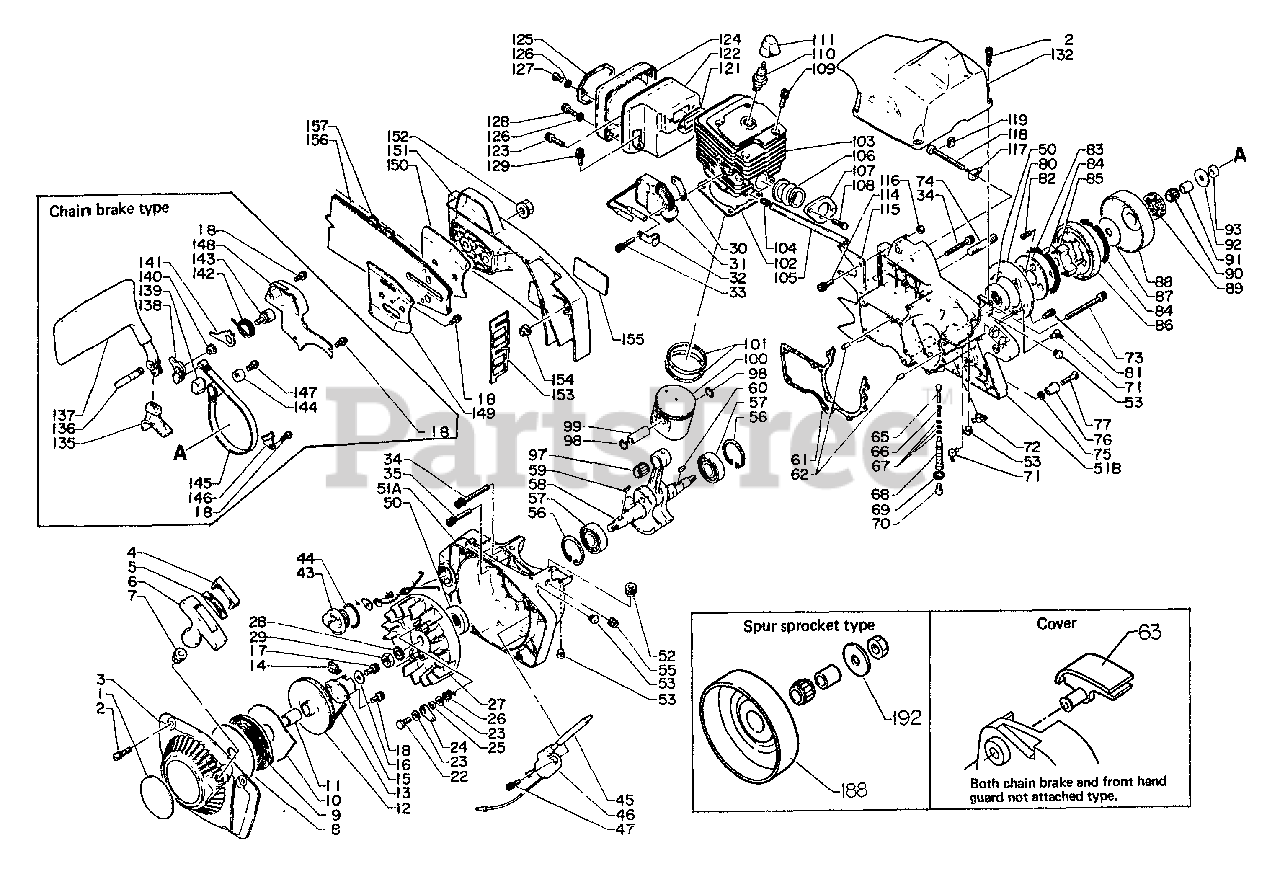

Engine, Starter, Ignition, Clutch, Exhaust, Chain Brake Parts Diagram

  • Title

1

Echo 89001210230

LABEL
(Superseded to 89001210231)

$

$

Not available

2

Echo 10151214730

SCREW - 5X20

$0.99

$

Usually ships in 2-4 days

0

Echo 17720014730

STARTER ASSY

$169.99

$

Usually ships in 2-4 days

0

3

Echo 10150714730

CASE, STARTER
(Superseded to Discontinued)

$

$

Not available

4

Echo 17724410630

CAP
(Superseded to Discontinued)

$

$

Not available

5

Echo 17722914730

WASHER

$1.99

$

Usually ships in 2-4 days

0

6

Echo 17722810631

GRIP, STARTER
(Superseded to Discontinued)

$

$

Not available

7

Echo 17722710630

GUIDE, ROPE
(Superseded to 17722707060)

$17.99

$

Usually ships in 2-4 days

0

8

Echo 17722110630

PLATE, STARTER

$5.99

$

Usually ships in 2-4 days

0

9

Echo 17722010630

SPRING, REWIND
(Superseded to 17722010631)

$15.99

$

Usually ships in 2-4 days

0

10

Echo 17724214730

PLATE, STARTER

$4.49

$

Usually ships in 2-4 days

0

11

Echo 17721610630

BUSHING

$1.99

$

Usually ships in 2-4 days

0

12

Echo 17721510631

REEL, ROPE
(Superseded to 17721510632)

$18.99

$

Usually ships in 2-4 days

0

13

Echo 17722614730

ROPE, STARTER

$6.49

$

In Stock, only 2 left!

0

14

Echo 17724610630

RETAINER, ROPE
(Superseded to 17724610631)

$

$

Not available

15

Echo 17724302833

CATCHER, PAWL

$10.99

$

Usually ships in 2-4 days

0

16

Echo 30021700610

WASHER

$0.99

$

In Stock, Qty 14

0

17

Echo 90016205015

SCREW - 5X15
(Superseded to Discontinued)

$

$

Not available

18

Echo 90024204012

SCREW - 4X12

$0.99

$

In Stock, Qty 20+

0

18

Echo 90024204012

SCREW - 4X12

$0.99

$

In Stock, Qty 20+

0

22

Echo 90010006016

BOLT - 6X16

$0.99

$

In Stock, only 2 left!

0

23

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 16

0

24

Echo 17721802830

PAWL, STARTER

$5.99

$

Usually ships in 2-4 days

0

25

Echo 17724702830

SPACER

$1.99

$

Usually ships in 2-4 days

0

26

Echo 17723414730

SPRING, RETURN

$2.49

$

Usually ships in 2-4 days

0

27

Echo 15080114730

FLYWHEEL
(Superseded to Discontinued)

$

$

Not available

28

Echo 90061100010

WASHER - 10

$0.99

$

In Stock, only 2 left!

0

29

Echo 10014402830

NUT

$1.49

$

In Stock, Qty 5

0

30

Echo 15061714730

SPACER
(Superseded to Discontinued)

$

$

Not available

31

Echo 15060114730

COIL, IGNITION
(Superseded to 15660114730)

$

$

Not available

32

Echo 15911214730

CLAMP
(Superseded to Discontinued)

$

$

Not available

33

Echo 90016205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

34

Echo 90016205050

SCREW - 5X50

$1.99

$

In Stock, Qty 15

0

35

Echo 90016205035

SCREW - 5X35

$1.49

$

In Stock, Qty 6

0

43

Echo 43600114730

CAP ASSY
(Superseded to 43600116430)

$

$

Not available

44

Echo 90072000025

O-RING - 25
(Superseded to Discontinued)

$

$

Not available

45

Echo 15061114730

TUBE

$1.49

$

Usually ships in 2-4 days

0

46

Echo 15062614730

COIL, IGNITION
(Superseded to 15662614730)

$

$

Not available

47

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.49

$

In Stock, Qty 20+

0

50

Echo 10021212130

SEAL, OIL

$5.99

$

In Stock, only 1 left!

0

51

Echo 10020014730

CRANKCASE KIT
(Superseded to 10020414730)

$

$

Not available

51A

Echo 10020014730

CRANKCASE KIT
(Superseded to 10020414730)

Note: See Ref No. 51, Crankcase set, P/N 10020014730

$

$

Not available

51B

Echo 10020014730

CRANKCASE KIT
(Superseded to 10020414730)

Note: See Ref No. 51, Crankcase set, P/N 10020014730

$

$

Not available

52

Echo 15311002830

GROMMET

$0.99

$

Usually ships in 2-4 days

0

53

Echo 10025114730

CUSHION
(Superseded to Discontinued)

$

$

Not available

55

Echo 13211501460

GROMMET
(Superseded to 13211501461)

$1.49

$

In Stock, Qty 19

0

56

Echo 90070200040

RING, RETAINING - 40

$1.99

$

Usually ships in 2-4 days

0

57

Echo 90081006203

BEARING, BALL - 6203

$11.99

$

Usually ships in 2-4 days

0

58

Echo 10010014730

CRANKSHAFT ASSY
(Superseded to 99010000009)

$

$

Not available

59

Echo 10014212330

KEY

$1.99

$

In Stock, Qty 14

0

60

Echo 90032203014

KEY - 3X14
(Superseded to 90032303014)

$1.49

$

In Stock, only 4 left!

0

61

Echo 10024214730

GASKET, CRANKCASE
(Superseded to 10024214731)

$2.99

$

Usually ships in 2-4 days

0

62

Echo 10021502830

PIN - LOCATING

$0.99

$

Usually ships in 2-4 days

0

63

Echo 10061212331

COVER
(Superseded to 10061212332)

$

$

Not available

65

Echo 43700203431

PUMP KIT
(Superseded to 43700003430)

$

$

Not available

66

Echo 43701902830

SPRING

$1.49

$

In Stock, Qty 6

0

67

Echo 43702002830

O-RING - 5

$1.99

$

Usually ships in 2-4 days

0

68

------------------

UNKNOWN

$

$

Not available

69

Echo 43705911133

LOCKWASHER

$2.99

$

Usually ships in 2-4 days

0

70

Echo 43701611131

SCREW
(Superseded to 90022005010)

$0.99

$

In Stock, Qty 7

0

71

Echo 43723914730

FITTING, GREASE

$7.99

$

Usually ships in 2-4 days

0

72

Echo 43724014730

CONNECTOR
(Superseded to 43730714730)

$

$

Not available

73

Echo 90016205065

SCREW - 5X65

$2.99

$

In Stock, Qty 10

0

74

Echo 43301110630

STUD, GUIDE BAR

$3.99

$

In Stock, only 1 left!

0

75

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

76

Echo 43300612830

CATCHER, CHAIN
(Superseded to 43300012830)

$

$

Not available

77

Echo 90022005025

SCREW - 5X25

$0.99

$

In Stock, only 1 left!

0

80

Echo 17531014730

SEAL, DUST
(Superseded to Discontinued)

$

$

Not available

81

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 6

0

82

Echo 90021205012

SCREW - 5X12
(Superseded to 90021805012)

$0.99

$

Usually ships in 2-4 days

0

83

Echo 17501910631

PLATE, CLUTCH
(Superseded to Discontinued)

$

$

Not available

Echo 17500014730

CLUTCH ASSY
(Superseded to Discontinued)

$

$

Not available

84

Echo 17501814730

SPRING, CLUTCH

$2.99

$

Usually ships in 2-4 days

0

85

Echo 17501614730

HUB, CLUTCH
(Superseded to Discontinued)

$

$

Not available

86

Echo 17501714730

SHOE, CLUTCH
(Superseded to Discontinued)

$

$

Not available

87

Echo 17501510630

WASHER, CLUTCH
(Superseded to Discontinued)

$

$

Not available

88

Echo 17500614730

DRUM, CLUTCH

$66.99

$

Usually ships in 2-4 days

0

89

Echo 17503310630

SPROCKET, RIM
(Superseded to 105130)

$11.99

$

Usually ships in 2-4 days

0

90

Echo 10001200130

BEARING, NEEDLE
(Superseded to 17501230831)

$13.99

$

In Stock, only 1 left!

0

91

Echo 17501300230

SPACER

$9.99

$

Usually ships in 2-4 days

0

92

Echo 17501414730

WASHER, CLUTCH

$2.49

$

Usually ships in 2-4 days

0

93

Echo 10012903430

LOCKNUT
(Superseded to 61032003830)

$4.49

$

In Stock, only 3 left!

0

97

Echo 10001214730

BEARING, NEEDLE

$17.99

$

Usually ships in 2-4 days

0

98

Echo 10001500230

RING, RETAINING

$0.99

$

Usually ships in 2-4 days

0

99

Echo 10001314730

PIN, PISTON

$7.99

$

Usually ships in 2-4 days

0

100

Echo 10001014730

PISTON
(Superseded to 10001014731)

$104.99

$

Usually ships in 2-4 days

0

101

Echo 10001114730

RING, PISTON
(Superseded to 10001114731)

$

$

Not available

102

Echo 10101014730

GASKET, CYLINDER
(Superseded to 10101014731)

$1.99

$

Usually ships in 2-4 days

0

103

Echo 10101114730

CYLINDER
(Superseded to 99010000014)

$

$

Not available

104

Echo 10026710630

CONNECTOR

$3.99

$

Usually ships in 2-4 days

0

105

Echo 43722814730

PIPE - OIL

$3.99

$

In Stock, only 1 left!

0

106

Echo 13051014730

BELLOWS, INTAKE
(Superseded to 13050014730)

$

$

Not available

107

Echo 13051214730

RETAINER
(Superseded to 13050014730)

$

$

Not available

108

Echo 90024205020

SCREW - 5X20
(Superseded to 90024205022)

$0.99

$

In Stock, Qty 8

0

109

Echo 90010506020

SCREW - 6X20

$1.49

$

In Stock, only 3 left!

0

110

Echo 15901010630

SPARK PLUG -- BPM-7A
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0

110

Echo 15901010230

SPARK PLUG -- BPMR-7A

$3.99

$

In Stock, Qty 20+

0

111

Echo 15900500331

CAP, SPARK PLUG

$10.99

$

Usually ships in 2-4 days

0

114

Echo 90010505015

SCREW - 5X15

$1.49

$

Usually ships in 2-4 days

0

115

Echo 88021014730

SPIKE
(Superseded to Discontinued)

$

$

Not available

116

Echo 43302000830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 20+

0

117

Echo 43301410630

TENSIONER, CHAIN
(Superseded to 43301410631)

$6.49

$

Usually ships in 2-4 days

0

118

Echo 43301614730

SCREW, TENSIONER

$11.99

$

Usually ships in 2-4 days

0

119

Echo 43302814730

CLIP

$0.99

$

In Stock, Qty 6

0

121

Echo 14551014730

GASKET, EXHAUST
(Superseded to 14551014731)

$

$

Not available

122

Echo 14580614730

CASE, MUFFLER
(Superseded to 14580614731)

$

$

Not available

123

Echo 90010605018

SCREW - 5X18

$1.49

$

Usually ships in 2-4 days

0

124

Echo 14580714730

MUFFLER
(Superseded to Discontinued)

$

$

Not available

125

Echo 14586114730

LID, MUFFLER
(Superseded to Discontinued)

$

$

Not available

126

Echo 90061000005

LOCKWASHER - 5

$0.99

$

Usually ships in 2-4 days

0

127

Echo 14564303730

SCREW - 5X8
(Superseded to Discontinued)

$

$

Not available

128

Echo 14564310630

SCREW - 5X16

$0.99

$

Usually ships in 2-4 days

0

129

Echo 90010645012

SCREW - 5X12

$

$

Currently unavailable

132

Echo 10151414730

COVER, ENGINE
(Superseded to 10151414732)

$

$

Not available

Echo 43310014730

CHAIN BRAKE ASSY
(Superseded to Discontinued)

$

$

Not available

18

Echo 90024204012

SCREW - 4X12

$0.99

$

In Stock, Qty 20+

0

135

Echo 43331212330

COVER, BRAKE
(Superseded to Discontinued)

$

$

Not available

136

Echo 43311312330

SCREW

$3.49

$

In Stock, only 1 left!

0

137

Echo 43310514730

HANDLE, BRAKE
(Superseded to Discontinued)

$

$

Not available

138

Echo 43311714730

CONNECTOR
(Superseded to Discontinued)

$

$

Not available

139

Echo 43331314730

SEAL, DUST

$0.99

$

Usually ships in 2-4 days

0

140

Echo 43311512330

SPACER

$1.49

$

In Stock, Qty 5

0

141

Echo 43311912330

STOPPER

$4.49

$

In Stock, only 4 left!

0

142

Echo 43311412330

SPRING, RETURN
(Superseded to Discontinued)

$

$

Not available

143

Echo 43313412330

BOLT

$6.99

$

In Stock, only 1 left!

0

144

Echo 43314214730

ADJUSTER, BRAKE BAND
(Superseded to Discontinued)

$

$

Not available

145

Echo 43312314730

BAND, BRAKE
(Superseded to Discontinued)

$

$

Not available

146

Echo 43314414730

RETAINER, BRAKE BAND
(Superseded to Discontinued)

$

$

Not available

147

Echo 90024205014

SCREW - 5X14

$0.99

$

In Stock, Qty 20+

0

148

Echo 43331014730

COVER, BRAKE

$5.99

$

Usually ships in 2-4 days

0

149

Echo 43301314730

PLATE, GUIDE - INNER

$5.49

$

Usually ships in 2-4 days

0

150

Echo 43301214730

PLATE, GUIDE - OUTER
(Superseded to 43300714730)

$

$

Not available

151

Echo 43301014730

GUARD, SPROCKET
(Superseded to 43301014731)

$

$

Not available

152

Echo 43301910631

NUT - FLANGE

$2.49

$

Usually ships in 2-4 days

0

153

Echo 43302514730

PAD

$2.49

$

Usually ships in 2-4 days

0

154

Echo 43303014730

PIN - LOCATING
(Superseded to Discontinued)

$

$

Not available

155

Echo 89002102831

LABEL - ECHO
(Superseded to 89002102832)

$

$

Not available

156

Echo 43032810630

GUIDE BAR - 65H63

$

$

Currently unavailable

157

Echo 43113310631

SAW CHAIN - 52CP80E

$

$

Currently unavailable

188

Echo 17520614730

DRUM, CLUTCH
(Superseded to Discontinued)

Note: Spur sprocket type

$

$

Not available

192

Echo 17521414730

WASHER
(Superseded to Discontinued)

Note: Spur sprocket type

$

$

Not available
