CS-802 S - Echo Chainsaw Fuel System Parts Diagram

Chainsaw

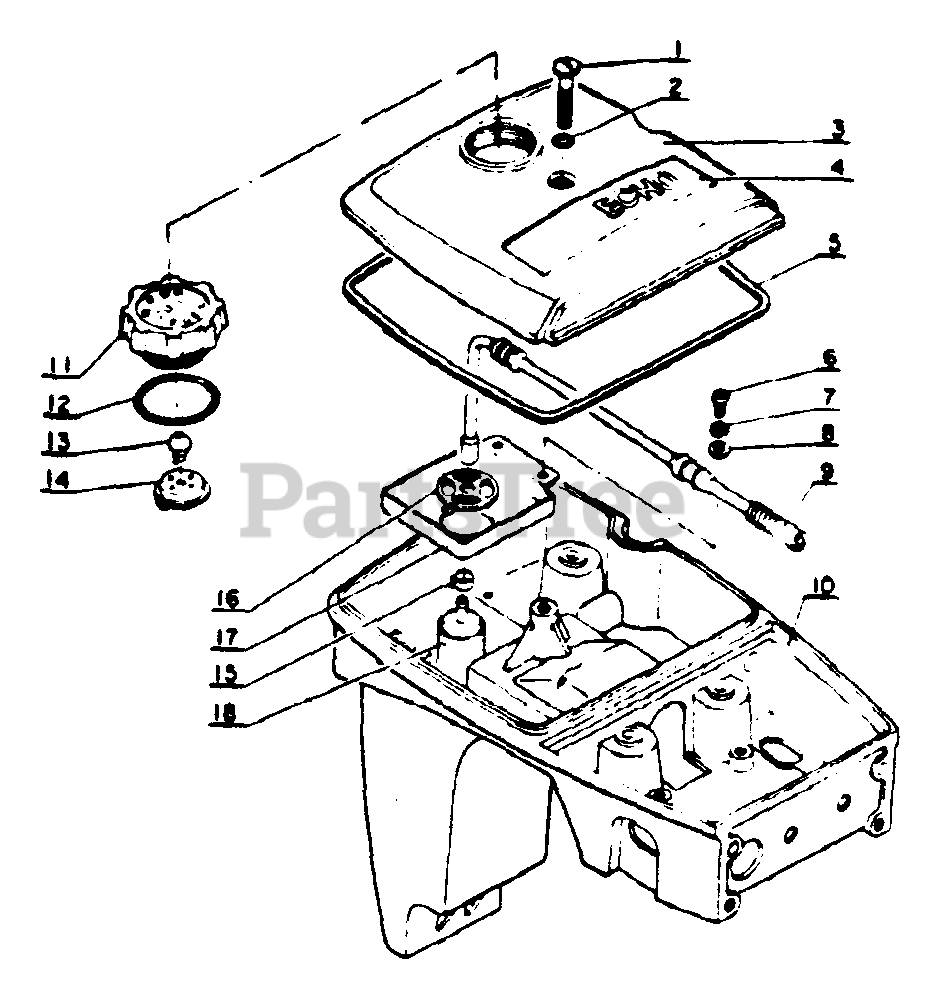

Fuel System Parts Diagram

  • Title

1

Echo 13101400430

SCREW
(Superseded to Discontinued)

$

$

Not available

2

Echo 13101300430

O-RING
(Superseded to 90072000006)

$1.49

$

In Stock, only 3 left!

0

3

Echo 13101200430

LID, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

4

Echo 89001300630

LABEL - ECHO

$

$

Currently unavailable

5

Echo 13101100430

GASKET, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

6

Echo 90021004010

SCREW - 4X10
(Superseded to 90022004010)

$0.99

$

Usually ships in 2-4 days

0

7

Echo 90060500004

LOCKWASHER - 4

$0.99

$

In Stock, Qty 20+

0

8

Echo 90060000004

WASHER - 4

$0.99

$

In Stock, Qty 12

0

9

Echo 13201000630

PIPE - FUEL
(Superseded to Discontinued)

$

$

Not available

10

Echo 13101000630

TANK, FUEL

$

$

Currently unavailable

11

Echo 13101700430

CAP
(Superseded to Discontinued)

$

$

Not available

12

Echo 13102800230

O-RING
(Superseded to 90072000029)

$3.49

$

In Stock, Qty 18

0

13

Echo 13131400330

VENT

$11.99

$

Usually ships in 2-4 days

0

14

Echo 13120500430

HOLDER, VENT

$

$

Currently unavailable

15

Echo 13201300630

RETAINER, PIPE
(Superseded to Discontinued)

$

$

Not available

16

Echo 13211200630

Fuel pipe spacer

$

$

Currently unavailable

17

Echo 13210500631

Fuel pipe supporter

$

$

Currently unavailable

18

Echo 13120500230

FILTER, FUEL
(Superseded to 13120530830)

$9.49

$

In Stock, Qty 20+

0
