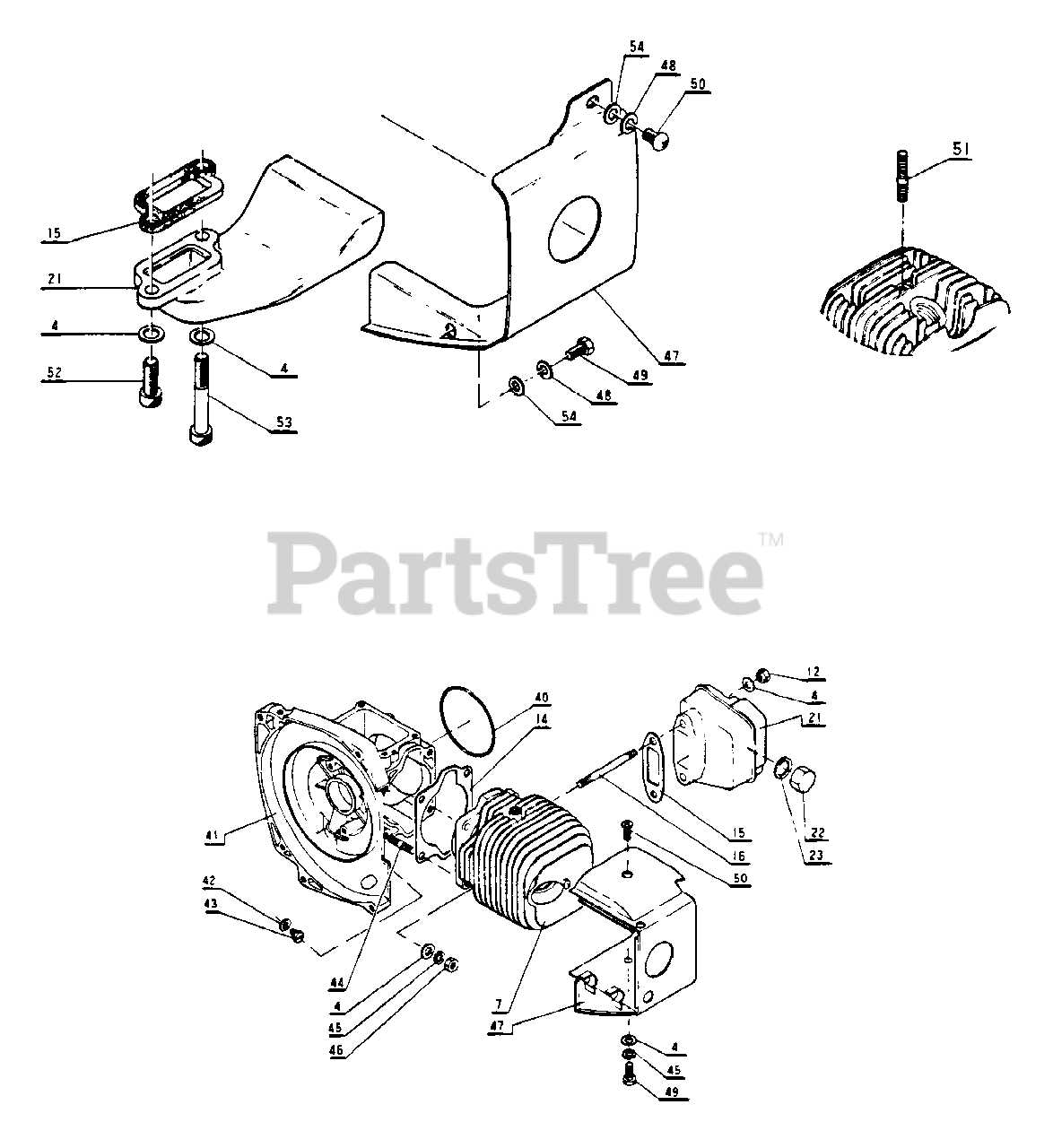

CS-802 S - Echo Chainsaw Engine, Exhaust Parts Diagram

Chainsaw

Engine, Exhaust Parts Diagram

  • Title

4

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 16

0

7

Echo 10101100432

CYLINDER
(Superseded to Discontinued)

$

$

Not available

12

Echo 14571300630

LOCKNUT - 6

$1.49

$

Usually ships in 2-4 days

0

14

Echo 10101000430

GASKET, CYLINDER
(Superseded to Discontinued)

$

$

Not available

15

Echo 14551000430

GASKET, EXHAUST
(Superseded to Discontinued)

$

$

Not available

16

Echo 10101400630

STUD
(Superseded to Discontinued)

$

$

Not available

21

Echo 14560500631

MUFFLER
(Superseded to Discontinued)

$

$

Not available

22

Echo 14562300630

CAP
(Superseded to Discontinued)

$

$

Not available

23

Echo 14562400630

GASKET, CAP
(Superseded to Discontinued)

$

$

Not available

40

Echo 10024200430

O-RING
(Superseded to Discontinued)

$

$

Not available

41

Echo 10020600630

CRANKCASE
(Superseded to Discontinued)

$

$

Not available

42

Echo 10025000430

PACKING
(Superseded to Discontinued)

$

$

Not available

43

Echo 10024800430

BOLT

$

$

Currently unavailable

44

Echo 10021400430

STUD
(Superseded to Discontinued)

$

$

Not available

45

Echo 90060500006

LOCKWASHER - 6

$0.99

$

In Stock, only 2 left!

0

46

Echo 90050000006

LOCKNUT - 6

$0.99

$

In Stock, Qty 20+

0

47

Echo 10150600631

SHIELD, CYLINDER
(Superseded to Discontinued)

$

$

Not available

48

------------------

WASHER - SPRING

Note: Not used on this model

$

$

Not available

49

Echo 90010006012

SCREW - 6X12

$0.99

$

Usually ships in 2-4 days

0

50

Echo 90020406012

SCREW - 6X12

$

$

Currently unavailable

51

------------------

STUD

Note: Not used on this model

$

$

Not available

52

------------------

BOLT

Note: Not used on this model

$

$

Not available

53

------------------

BOLT

Note: Not used on this model

$

$

Not available

54

------------------

WASHER

Note: Not used on this model

$

$

Not available
