CS-8002 - Echo Chainsaw (SN: 36001406 - 36999999) Handle Parts Diagram

Chainsaw

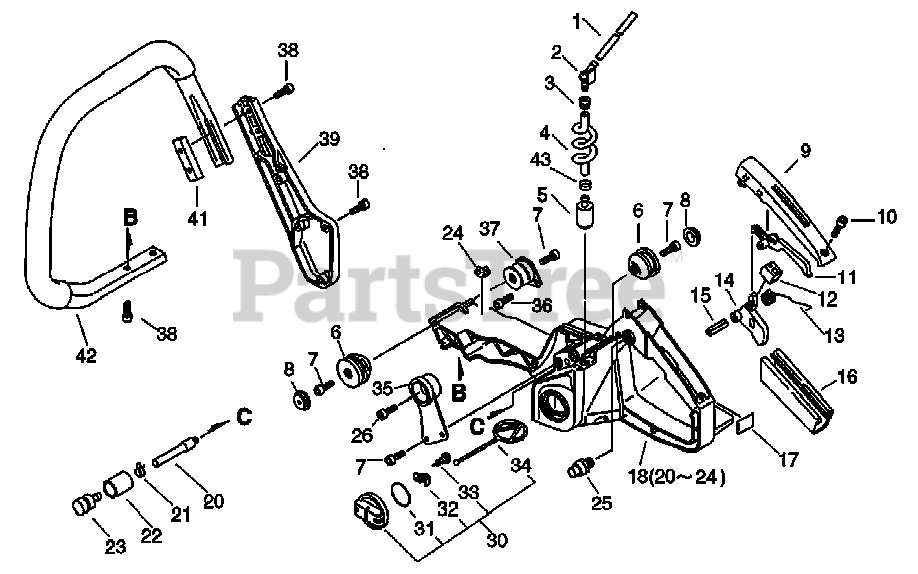

Handle Parts Diagram

  • Title

1

Echo 13201202960

PIPE - 3X6X120 -- BLACK
(Superseded to 13201202961)

$4.49

$

Usually ships in 2-4 days

0

1

Echo 13201202960

PIPE - 3X6X120 -- BLACK
(Superseded to 13201202961)

$4.49

$

Usually ships in 2-4 days

0

2

Echo 13201119831

CONNECTOR, PIPE
(Superseded to 13201133031)

$4.49

$

In Stock, only 1 left!

0

2

Echo 13201119831

CONNECTOR, PIPE
(Superseded to 13201133031)

$4.49

$

In Stock, only 1 left!

0

3

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.49

$

In Stock, Qty 19

0

3

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.49

$

In Stock, Qty 19

0

4

Echo 13201030830

PIPE - BLACK
(Superseded to 13201030831)

$5.99

$

Usually ships in 2-4 days

0

4

Echo 13201030830

PIPE - BLACK
(Superseded to 13201030831)

$5.99

$

Usually ships in 2-4 days

0

5

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

$9.49

$

In Stock, Qty 20+

0

5

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

$9.49

$

In Stock, Qty 20+

0

6

Echo 10091030830

CUSHION

$9.99

$

In Stock, only 2 left!

0

6

Echo 10091030830

CUSHION

$9.99

$

In Stock, only 2 left!

0

7

Echo 90016205014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

7

Echo 90016205014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

8

Echo 10091819830

CAP, CUSHION

$1.99

$

In Stock, Qty 8

0

8

Echo 10091819830

CAP, CUSHION

$1.99

$

In Stock, Qty 8

0

9

Echo 35115530131

COVER, HANDLE

$7.49

$

In Stock, only 4 left!

0

9

Echo 35115530131

COVER, HANDLE

$7.49

$

In Stock, only 4 left!

0

10

Echo 90016204014

SCREW - 4X14

$1.49

$

In Stock, Qty 5

0

10

Echo 90016204014

SCREW - 4X14

$1.49

$

In Stock, Qty 5

0

11

Echo 17809030130

LOCKOUT, THROTTLE

$3.99

$

Usually ships in 2-4 days

0

11

Echo 17809030130

LOCKOUT, THROTTLE

$3.99

$

Usually ships in 2-4 days

0

12

Echo 17807332430

CUSHION, THROTTLE

$2.99

$

Usually ships in 2-4 days

0

12

Echo 17807332430

CUSHION, THROTTLE

$2.99

$

Usually ships in 2-4 days

0

13

Echo 17804319830

SPRING, TRIGGER

$2.49

$

In Stock, Qty 10

0

13

Echo 17804319830

SPRING, TRIGGER

$2.49

$

In Stock, Qty 10

0

14

Echo 17801019830

TRIGGER, THROTTLE

$4.49

$

Usually ships in 2-4 days

0

14

Echo 17801019830

TRIGGER, THROTTLE

$4.49

$

Usually ships in 2-4 days

0

15

Echo 90034250025

PIN - SPRING -- 5X25

$1.49

$

In Stock, Qty 10

0

15

Echo 90034250025

PIN - SPRING -- 5X25

$1.49

$

In Stock, Qty 10

0

16

Echo 35111119830

GRIP, HANDLE
(Superseded to 35111119831)

$6.49

$

Usually ships in 2-4 days

0

16

Echo 35111119830

GRIP, HANDLE
(Superseded to 35111119831)

$6.49

$

Usually ships in 2-4 days

0

17

Echo 89015739130

LABEL - STOP
(Superseded to 89015739131)

$2.49

$

Usually ships in 2-4 days

0

17

Echo 89015739130

LABEL - STOP
(Superseded to 89015739131)

$2.49

$

Usually ships in 2-4 days

0

18

Echo 35110330832

HANDLE ASSY - REAR -- ORANGE
(Superseded to 35110330833)

$169.99

$

Usually ships in 2-4 days

0

18

Echo 35110330832

HANDLE ASSY - REAR -- ORANGE
(Superseded to 35110330833)

$169.99

$

Usually ships in 2-4 days

0

20

Echo 43721031730

PIPE - 3X5X55 -- BLACK
(Superseded to 43721031731)

$9.49

$

In Stock, only 1 left!

0

20

Echo 43721031730

PIPE - 3X5X55 -- BLACK
(Superseded to 43721031731)

$9.49

$

In Stock, only 1 left!

0

20

Echo 43721031730

PIPE - 3X5X55 -- BLACK
(Superseded to 43721031731)

$9.49

$

In Stock, only 1 left!

0

20

Echo 43721031730

PIPE - 3X5X55 -- BLACK
(Superseded to 43721031731)

$9.49

$

In Stock, only 1 left!

0

21

Echo 13011100530

CLIP - 5.5

$0.99

$

In Stock, Qty 20+

0

21

Echo 13011100530

CLIP - 5.5

$0.99

$

In Stock, Qty 20+

0

22

Echo 13132840630

COVER, VENT

$6.49

$

In Stock, Qty 13

0

22

Echo 13132840630

COVER, VENT

$6.49

$

In Stock, Qty 13

0

23

Echo 13130056430

VENT, FUEL TANK
(Superseded to 13130056431)

$7.49

$

In Stock, Qty 11

0

23

Echo 13130056430

VENT, FUEL TANK
(Superseded to 13130056431)

$7.49

$

In Stock, Qty 11

0

24

Echo 10025230830

CUSHION

$0.99

$

In Stock, Qty 10

0

24

Echo 10025230830

CUSHION

$0.99

$

In Stock, Qty 10

0

25

Echo 17830212330

LATCH, THROTTLE
(Superseded to 17830237930)

$9.99

$

In Stock, only 1 left!

0

25

Echo 17830212330

LATCH, THROTTLE
(Superseded to 17830237930)

$9.99

$

In Stock, only 1 left!

0

26

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

26

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

30

Echo 13100419831

CAP ASSY
(Superseded to 13100419832)

$9.49

$

Usually ships in 2-4 days

0

30

Echo 13100419831

CAP ASSY
(Superseded to 13100419832)

$9.49

$

Usually ships in 2-4 days

0

31

Echo 90072020029

O-RING - 29

$3.49

$

Usually ships in 2-4 days

0

31

Echo 90072020029

O-RING - 29

$3.49

$

Usually ships in 2-4 days

0

33

Echo 90024603008

SCREW - 3X8

$

$

Not available

33

Echo 90024603008

SCREW - 3X8

$

$

Not available

34

Echo 13105119830

CONNECTOR, CAP
(Superseded to A365000050)

$2.49

$

In Stock, Qty 20+

0

34

Echo 13105119830

CONNECTOR, CAP
(Superseded to A365000050)

$2.49

$

In Stock, Qty 20+

0

35

Echo 10091730830

CUSHION

$22.99

$

Usually ships in 2-4 days

0

35

Echo 10091730830

CUSHION

$22.99

$

Usually ships in 2-4 days

0

36

Echo 90016204010

SCREW - 4X10

$1.49

$

In Stock, Qty 5

0

36

Echo 90016204010

SCREW - 4X10

$1.49

$

In Stock, Qty 5

0

37

Echo 10092230830

CUSHION

$11.99

$

In Stock, only 1 left!

0

37

Echo 10092230830

CUSHION

$11.99

$

In Stock, only 1 left!

0

38

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

38

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

39

Echo 35161460830

BRACKET, HANDLE

$30.99

$

Usually ships in 2-4 days

0

39

Echo 35161460830

BRACKET, HANDLE

$30.99

$

Usually ships in 2-4 days

0

41

Echo 30511406060

BRACKET

$6.99

$

Usually ships in 2-4 days

0

41

Echo 30511406060

BRACKET

$6.99

$

Usually ships in 2-4 days

0

42

Echo 35160660830

HANDLE - FRONT
(Superseded to 35160660831)

$72.99

$

Usually ships in 2-4 days

0

42

Echo 35160660830

HANDLE - FRONT
(Superseded to 35160660831)

$72.99

$

Usually ships in 2-4 days

0

43

Echo 13201326630

CLIP - 6.5
(Superseded to V490001230)

$0.99

$

In Stock, Qty 20+

0

43

Echo 13201326630

CLIP - 6.5
(Superseded to V490001230)

$0.99

$

In Stock, Qty 20+
