CS-8002 - Echo Chainsaw (SN: 36001001 - 36001405) Air Cleaner, Carburetor, Muffler Parts Diagram

Chainsaw

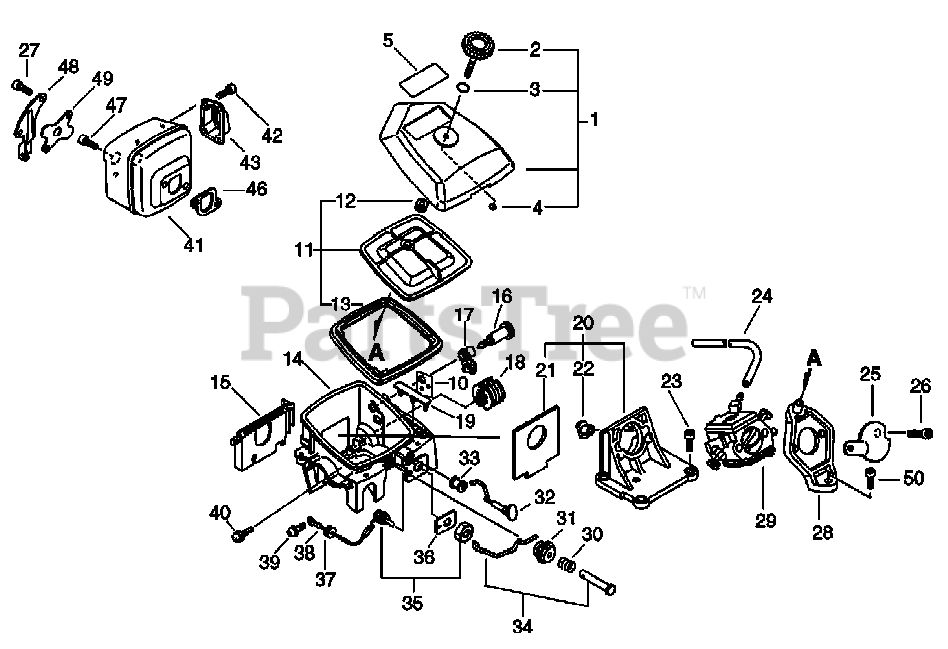

Air Cleaner, Carburetor, Muffler Parts Diagram

  • Title
1

Echo 13030230830

AIR FILTER COVER ASSY
(Superseded to P021042221)

$17.99

$

Usually ships in 2-4 days

0

1

Echo 13030230830

AIR FILTER COVER ASSY
(Superseded to P021042221)

$17.99

$

Usually ships in 2-4 days

0

2

Echo 13040630830

THUMBSCREW

$5.99

$

Usually ships in 2-4 days

0

2

Echo 13040630830

THUMBSCREW

$5.99

$

Usually ships in 2-4 days

0

3

Echo 90072000010

O-RING - 10

$1.49

$

Usually ships in 2-4 days

0

3

Echo 90072000010

O-RING - 10

$1.49

$

Usually ships in 2-4 days

0

4

Echo 90072000003

O-RING - 3

$1.49

$

In Stock, Qty 9

0

4

Echo 90072000003

O-RING - 3

$1.49

$

In Stock, Qty 9

0

5

Echo X503009160

LABEL - MODEL
(Superseded to Discontinued)

$

$

Not available

5

Echo X503009160

LABEL - MODEL
(Superseded to Discontinued)

$

$

Not available

10

Echo 89016960830

LABEL - ADJUSTING
(Superseded to Discontinued)

$

$

Not available

10

Echo 89016960830

LABEL - ADJUSTING
(Superseded to Discontinued)

$

$

Not available

11

Echo 13030330831

FILTER, AIR
(Superseded to P200000740)

$27.99

$

In Stock, only 1 left!

0

11

Echo 13030330831

FILTER, AIR
(Superseded to P200000740)

$27.99

$

In Stock, only 1 left!

0

12

$0.99

$

In Stock, Qty 7

0

12

$0.99

$

In Stock, Qty 7

0

$8.99

$

Usually ships in 2-4 days

0

$8.99

$

Usually ships in 2-4 days

0

14

Echo 13030630830

CASE, CARBURETOR

$64.99

$

Usually ships in 2-4 days

0

14

Echo 13030630830

CASE, CARBURETOR

$64.99

$

Usually ships in 2-4 days

0

15

Echo 10152930830

PLATE, GUIDE

$11.99

$

Usually ships in 2-4 days

0

15

Echo 10152930830

PLATE, GUIDE

$11.99

$

Usually ships in 2-4 days

0

16

Echo 12901330831

SCREW, IDLE ADJUST

$

$

Not available

16

Echo 12901330831

SCREW, IDLE ADJUST

$

$

Not available

17

$5.99

$

Usually ships in 2-4 days

0

17

$5.99

$

Usually ships in 2-4 days

0

18

$24.99

$

Usually ships in 2-4 days

0

18

$24.99

$

Usually ships in 2-4 days

0

19

Echo 13033930830

PLUG
(Superseded to Discontinued)

$

$

Not available

19

Echo 13033930830

PLUG
(Superseded to Discontinued)

$

$

Not available

20

Echo 13000730830

INSULATOR, INTAKE
(Superseded to 13000730832)

$14.99

$

In Stock, only 1 left!

0

20

Echo 13000730830

INSULATOR, INTAKE
(Superseded to 13000730832)

$14.99

$

In Stock, only 1 left!

0

21

Echo 13001230830

SEAL, DUST

$2.99

$

Usually ships in 2-4 days

0

21

Echo 13001230830

SEAL, DUST

$2.99

$

Usually ships in 2-4 days

0

22

Echo 13002019830

NUT
(Superseded to Discontinued)

$

$

Not available

22

Echo 13002019830

NUT
(Superseded to Discontinued)

$

$

Not available

23

Echo 90016205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

23

Echo 90016205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

24

Echo 13011030830

PIPE - IMPULSE
(Superseded to 13011030831)

$2.99

$

In Stock, only 2 left!

0

24

Echo 13011030830

PIPE - IMPULSE
(Superseded to 13011030831)

$2.99

$

In Stock, only 2 left!

0

25

Echo 12901119831

PLATE, PREVENT

$3.49

$

Usually ships in 2-4 days

0

25

Echo 12901119831

PLATE, PREVENT

$3.49

$

Usually ships in 2-4 days

0

26

Echo 90016205055

SCREW - 5X55

$2.49

$

Usually ships in 2-4 days

0

26

Echo 90016205055

SCREW - 5X55

$2.49

$

Usually ships in 2-4 days

0

27

Echo 90016205014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

27

Echo 90016205014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

28

Echo 13040530830

BRACKET, AIR CLEANER
(Superseded to 13040530831)

$8.49

$

Usually ships in 2-4 days

0

28

Echo 13040530830

BRACKET, AIR CLEANER
(Superseded to 13040530831)

$8.49

$

Usually ships in 2-4 days

0

29

Echo 12300038832

CARBURETOR HDA-153B

$138.99

$

Usually ships in 2-4 days

0

29

Echo 12300038832

CARBURETOR HDA-153B

$138.99

$

Usually ships in 2-4 days

0

30

$1.99

$

In Stock, only 3 left!

0

30

$1.99

$

In Stock, only 3 left!

0

31

Echo 17811419830

GUIDE, THROTTLE ROD

$1.99

$

In Stock, Qty 5

0

31

Echo 17811419830

GUIDE, THROTTLE ROD

$1.99

$

In Stock, Qty 5

0

32

Echo 17851030830

ROD, CHOKE

$5.99

$

Usually ships in 2-4 days

0

32

Echo 17851030830

ROD, CHOKE

$5.99

$

Usually ships in 2-4 days

0

33

$1.49

$

Usually ships in 2-4 days

0

33

$1.49

$

Usually ships in 2-4 days

0

34

Echo 17830730830

ROD, THROTTLE

$7.49

$

In Stock, only 1 left!

0

34

Echo 17830730830

ROD, THROTTLE

$7.49

$

In Stock, only 1 left!

0

35

Echo 16340030830

IGNITION SWITCH ASSY

$10.99

$

In Stock, only 1 left!

0

35

Echo 16340030830

IGNITION SWITCH ASSY

$10.99

$

In Stock, only 1 left!

0

36

Echo 89015719830

LABEL - STOP

$4.99

$

Usually ships in 2-4 days

0

36

Echo 89015719830

LABEL - STOP

$4.99

$

Usually ships in 2-4 days

0

37

$0.99

$

In Stock, only 4 left!

0

37

$0.99

$

In Stock, only 4 left!

0

38

Echo 16202130830

LEAD - GROUND

$4.49

$

Usually ships in 2-4 days

0

38

Echo 16202130830

LEAD - GROUND

$4.49

$

Usually ships in 2-4 days

0

39

Echo 90024204008

SCREW - 4X8

$0.99

$

In Stock, Qty 8

0

39

Echo 90024204008

SCREW - 4X8

$0.99

$

In Stock, Qty 8

0

40

Echo 90022004008

SCREW - 4X8

$0.99

$

In Stock, only 3 left!

0

40

Echo 90022004008

SCREW - 4X8

$0.99

$

In Stock, only 3 left!

0

41

$96.99

$

Usually ships in 2-4 days

0

41

$96.99

$

Usually ships in 2-4 days

0

42

Echo 90016204010

SCREW - 4X10

$1.49

$

In Stock, Qty 5

0

42

Echo 90016204010

SCREW - 4X10

$1.49

$

In Stock, Qty 5

0

43

Echo 14586130830

LID, MUFFLER

$5.99

$

Usually ships in 2-4 days

0

43

Echo 14586130830

LID, MUFFLER

$5.99

$

Usually ships in 2-4 days

0

46

Echo 14551030830

GASKET, EXHAUST

$2.99

$

In Stock, only 1 left!

0

46

Echo 14551030830

GASKET, EXHAUST

$2.99

$

In Stock, only 1 left!

0

47

Echo 90016206020

SCREW - 6X20

$1.49

$

In Stock, only 4 left!

0

47

Echo 90016206020

SCREW - 6X20

$1.49

$

In Stock, only 4 left!

0

48

Echo 14571130830

BRACKET, MUFFLER

$6.49

$

Usually ships in 2-4 days

0

48

Echo 14571130830

BRACKET, MUFFLER

$6.49

$

Usually ships in 2-4 days

0

49

Echo 14581331730

COVER, MUFFLER

$3.49

$

In Stock, only 1 left!

0

49

Echo 14581331730

COVER, MUFFLER

$3.49

$

In Stock, only 1 left!

0

50

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

50

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0
