CS-8000 - Echo Chainsaw (Type 1E) (SN: 001001 - 999999) Cylinder Parts Diagram

Chainsaw (Type 1E)

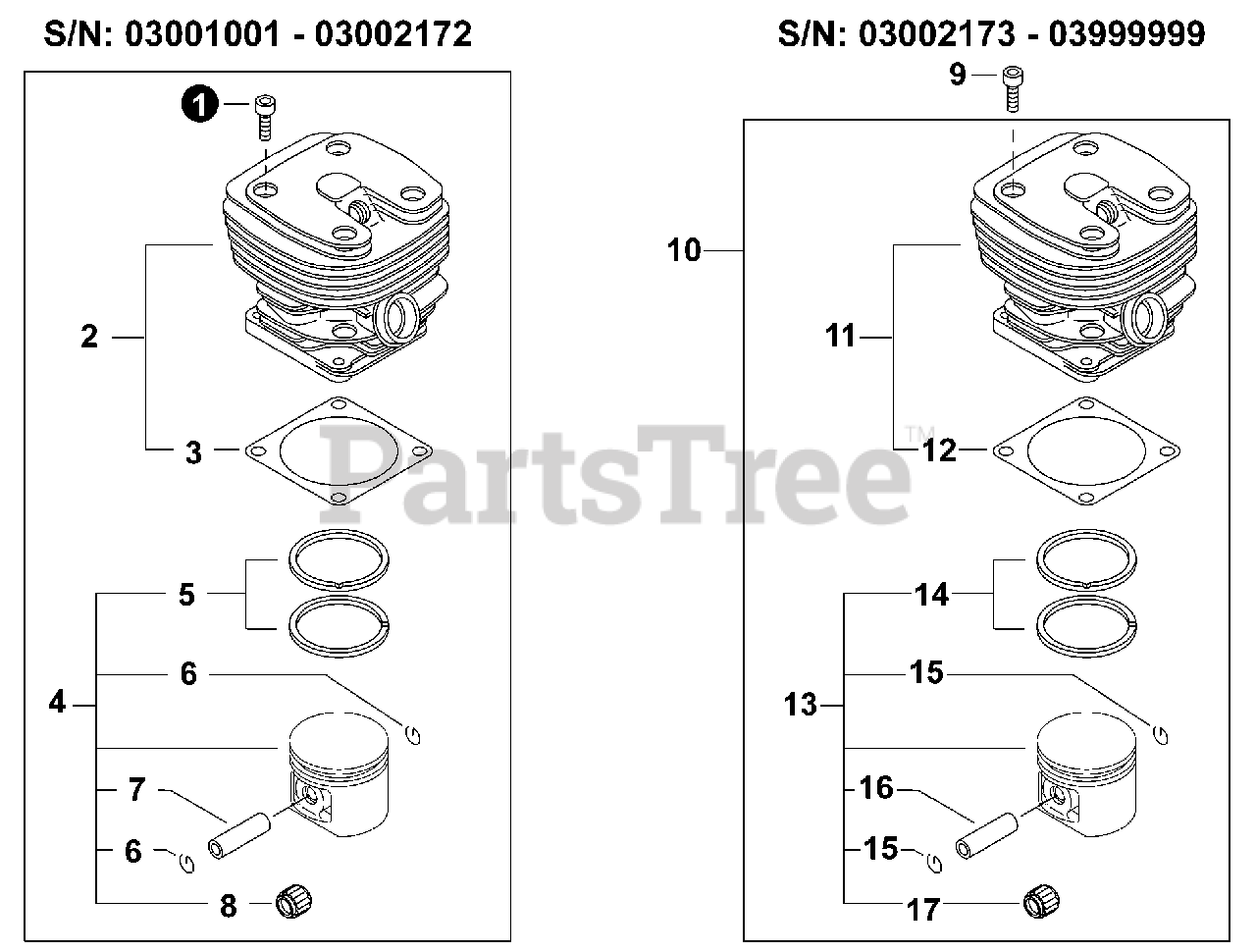

Cylinder Parts Diagram

  • Title
1

Echo 90016206025

BOLT 6x25

$1.49

$

Usually ships in 2-4 days

0

2

Echo 10100130833

CYLINDER KIT
(Superseded to P050005320)

Note: Includes item 3

$285.99

$

Usually ships in 2-4 days

0

3

Echo 10101030830

GASKET, CYLINDER

$2.99

$

In Stock, only 1 left!

0

4

Echo 10000030832

PISTON KIT
(Superseded to P050005320)

Note: Includes items 5-8

$285.99

$

Usually ships in 2-4 days

0

5

Echo 10001130831

RING, PISTON

$7.99

$

Usually ships in 2-4 days

0

6

Echo 10001530830

RING, RETAINING

$0.99

$

Usually ships in 2-4 days

0

7

Echo 10001330830

PIN, PISTON

$7.99

$

Usually ships in 2-4 days

0

8

Echo 10001230830

BEARING, NEEDLE

$18.99

$

Usually ships in 2-4 days

0

9

Echo 90016206025

BOLT 6x25

$1.49

$

Usually ships in 2-4 days

0

10

Echo P050005320

CYLINDER/PISTON KIT
(Superseded to P050005321)

Note: Includes items 11-17

$285.99

$

Usually ships in 2-4 days

0

11

Echo P021005410

CYLINDER ASSY

Note: Includes item 12

$187.99

$

Usually ships in 2-4 days

0

12

Echo 10101030830

GASKET, CYLINDER

$2.99

$

In Stock, only 1 left!

0

13

Echo P021005420

PISTON KIT
(Superseded to P021005421)

Note: Includes items 14-17

$91.99

$

In Stock, only 1 left!

0

14

Echo 10001130831

RING, PISTON

$7.99

$

Usually ships in 2-4 days

0

15

Echo 10001530830

RING, RETAINING

$0.99

$

Usually ships in 2-4 days

0

16

Echo V611000000

PIN, PISTON

$8.49

$

Usually ships in 2-4 days

0

17

Echo 10001230830

BEARING, NEEDLE

$18.99

$

Usually ships in 2-4 days

0
