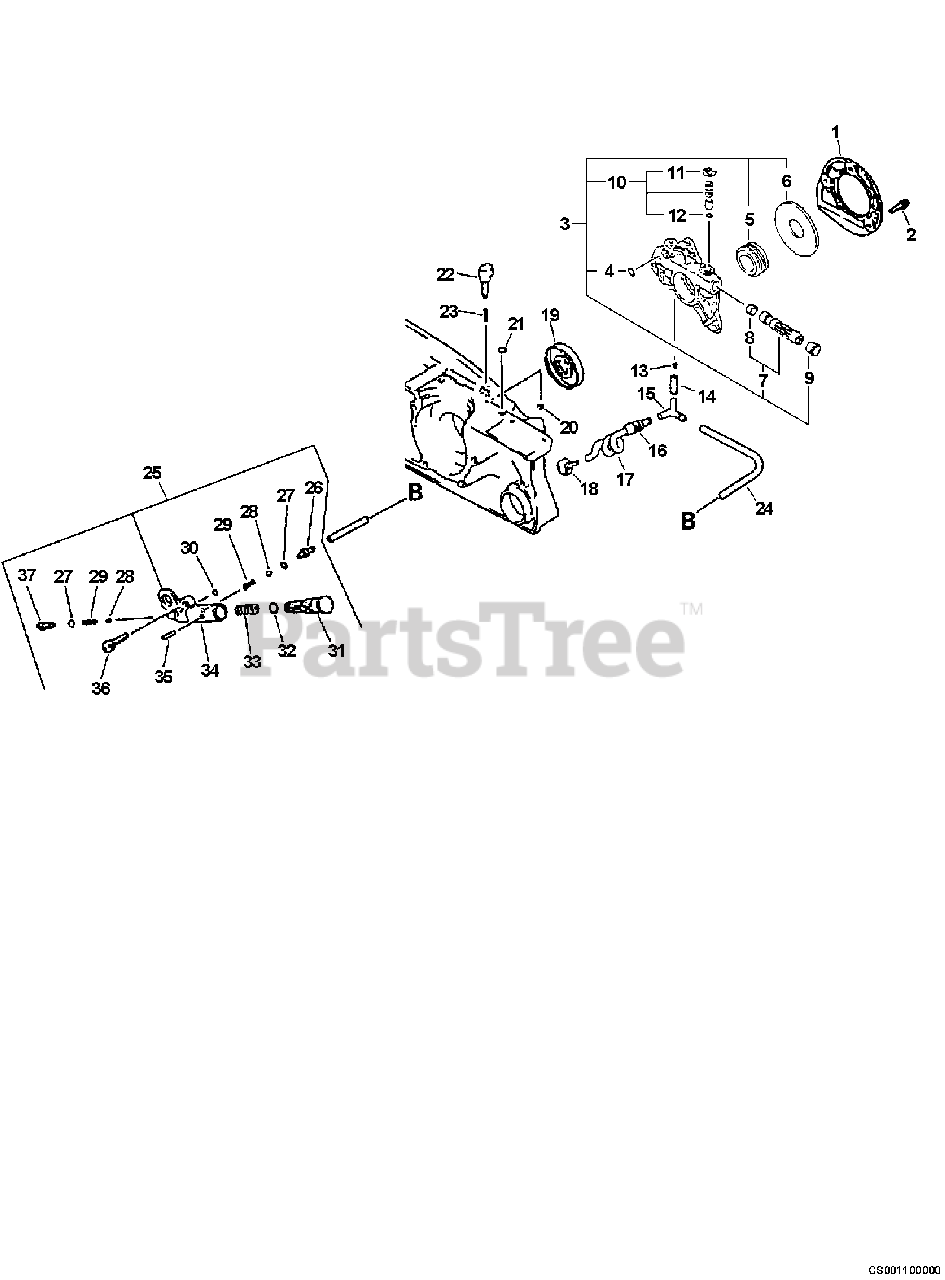

CS-8000 - Echo Chainsaw (Type 1E) (Original Version) Auto-Oiler Parts Diagram

Chainsaw (Type 1E)

Auto-Oiler Parts Diagram

  • Title
1

Echo 43760537630

COVER, OIL PUMP

$5.49

$

Usually ships in 2-4 days

0

2

Echo 90016204014

SCREW - 4X14

$1.49

$

In Stock, Qty 5

0

3

Echo 43700237530

AUTO-OILER ASSY

Note: INCLUDES ITEMS 4-12

$92.99

$

Usually ships in 2-4 days

0

4

Echo 90072000003

O-RING - 3

$1.49

$

In Stock, Qty 10

0

5

Echo 43700419931

GEAR - WORM

$39.99

$

In Stock, only 1 left!

0

6

Echo 43706630130

WASHER - 12

$10.99

$

Usually ships in 2-4 days

0

7

Echo 43700632330

PLUNGER KIT

Note: Includes ITEM 8

$27.99

$

Usually ships in 2-4 days

0

8

$4.99

$

Usually ships in 2-4 days

0

9

Echo 43706219830

CAP, PLUNGER

$1.99

$

Usually ships in 2-4 days

0

10

Echo 43700935430

CONTROL PIN ASSY

Note: Includes ITEMS 11-12

$21.99

$

Usually ships in 2-4 days

0

$0.99

$

Usually ships in 2-4 days

0

12

$2.99

$

Usually ships in 2-4 days

0

13

Echo V490001230

CLIP - 6.5

$0.99

$

In Stock, Qty 20+

0

14

Echo 43721132430

PIPE - 3X6X20 -- BLACK

$2.49

$

Usually ships in 2-4 days

0

15

Echo 43721232430

CONNECTOR, PIPE

$3.99

$

Usually ships in 2-4 days

0

16

$1.49

$

In Stock, Qty 20+

0

17

Echo 43721038330

PIPE - OIL
(Superseded to 43721038331)

$5.49

$

In Stock, Qty 15

0

18

Echo 43620514730

FILTER, OIL

$8.99

$

In Stock, only 3 left!

0

19

Echo 10021330830

SEAL, OIL

$5.99

$

In Stock, only 1 left!

0

20

Echo 90070000003

RING, RETAINING - 3

$0.99

$

In Stock, Qty 6

0

21

Echo 90072000003

O-RING - 3

$1.49

$

In Stock, Qty 10

0

22

Echo 43703938730

DIAL, AUTO-OILER

$2.99

$

In Stock, only 1 left!

0

23

$1.49

$

In Stock, only 2 left!

0

24

Echo 43721030830

PIPE - 3X6X210 -- BLACK
(Superseded to 43721030831)

Note: RePower BULK OPTION: 90015

$5.99

$

In Stock, only 3 left!

0

25

Echo 43710038832

OIL PUMP ASSY

Note: INCLUDES ITEMS 26-37

$21.99

$

Usually ships in 2-4 days

0

26

$3.49

$

Usually ships in 2-4 days

0

27

$1.49

$

In Stock, Qty 5

0

28

Echo 43701200330

VALVE, BALL

$0.99

$

In Stock, Qty 8

0

29

$0.99

$

In Stock, Qty 8

0

30

Echo 90072000003

O-RING - 3

$1.49

$

In Stock, Qty 10

0

31

Echo 43711238731

PISTON, OIL PUMP

$4.49

$

In Stock, only 1 left!

0

32

Echo 90072000007

O-RING - 7

$0.99

$

In Stock, only 1 left!

0

33

$1.49

$

In Stock, only 4 left!

0

34

Echo 43711019831

BODY, OIL PUMP

$7.99

$

Usually ships in 2-4 days

0

35

Echo 90034520016

PIN - SPRING -- 2X16

$1.99

$

Usually ships in 2-4 days

0

36

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

37

Echo 43712110130

ADAPTER, OIL PUMP

$4.99

$

Usually ships in 2-4 days

0
