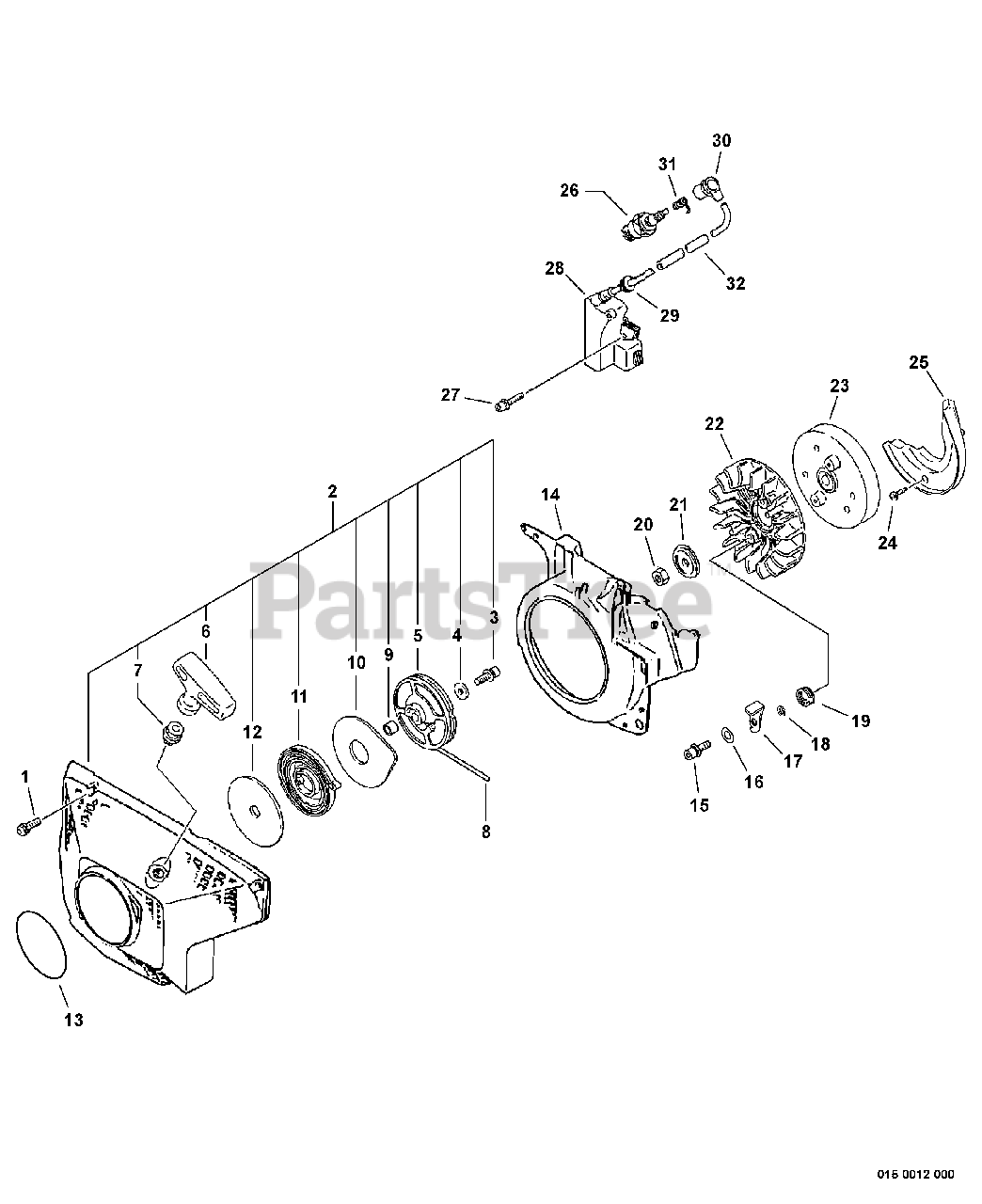

CS-8000 - Echo Chainsaw (SN: C48003001001 - C48003999999) Starter, Ignition - GRAY MODELS Parts Diagram

Chainsaw

Starter, Ignition - GRAY MODELS Parts Diagram

  • Title
1

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

2

Echo 17720038833

STARTER ASSY
(Superseded to Discontinued)

Note: Includes ITEMS 3-12

$

$

Not available

3

Echo 90016205014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

4

Echo 17721402830

WASHER - 5

$0.99

$

In Stock, Qty 5

0

5

Echo 17720614330

REEL, ROPE

$29.99

$

In Stock, only 1 left!

0

6

Echo 17722830830

GRIP, STARTER
(Superseded to 17722830832)

$5.99

$

Usually ships in 2-4 days

0

7

Echo 17722707060

GUIDE, ROPE

$17.99

$

Usually ships in 2-4 days

0

8

Echo 17722607060

ROPE, STARTER - 4X950

Note: RePower BULK OPTION: 99944450000

$10.99

$

In Stock, Qty 9

0

9

$1.99

$

In Stock, Qty 20+

0

10

Echo 17724230830

PLATE, STARTER

$4.49

$

In Stock, only 1 left!

0

11

Echo 17722002834

SPRING, REWIND

$21.99

$

In Stock, Qty 8

0

12

Echo 17722102830

PLATE, STARTER

$5.99

$

In Stock, Qty 7

0

13

Echo 89011817930

LABEL - ECHO

$7.99

$

In Stock, Qty 9

0

14

Echo 10153538830

SHIELD, FAN

$14.99

$

Usually ships in 2-4 days

0

15

Echo V203000140

SCREW - 5X30

$1.49

$

Usually ships in 2-4 days

0

16

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

17

Echo 17721830830

PAWL, STARTER

$4.99

$

In Stock, only 1 left!

0

18

$2.99

$

In Stock, Qty 7

0

19

Echo 17723430830

SPRING, RETURN

$1.49

$

In Stock, only 3 left!

0

20

Echo 43301912330

NUT - FLANGE
(Superseded to V265000200)

$1.99

$

In Stock, Qty 20+

0

21

Echo 10014319830

WASHER - CUP

$1.49

$

In Stock, only 4 left!

0

$37.99

$

Usually ships in 2-4 days

0

23

Echo 15680032631

FLYWHEEL

$104.99

$

Usually ships in 2-4 days

0

24

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

25

Echo 10153438730

SHIELD, FAN
(Superseded to Discontinued)

$

$

Not available

26

Echo 15901010630

SPARK PLUG -- BPM-7A
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0

27

Echo 90016204020

SCREW - 4X20

$1.49

$

In Stock, Qty 20+

0

28

Echo 15660130832

COIL, IGNITION

$138.99

$

Usually ships in 2-4 days

0

29

$0.99

$

Usually ships in 2-4 days

0

30

Echo 15901203433

CAP, SPARK PLUG

$6.99

$

In Stock, Qty 11

0

31

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

$2.49

$

Usually ships in 2-4 days

0
