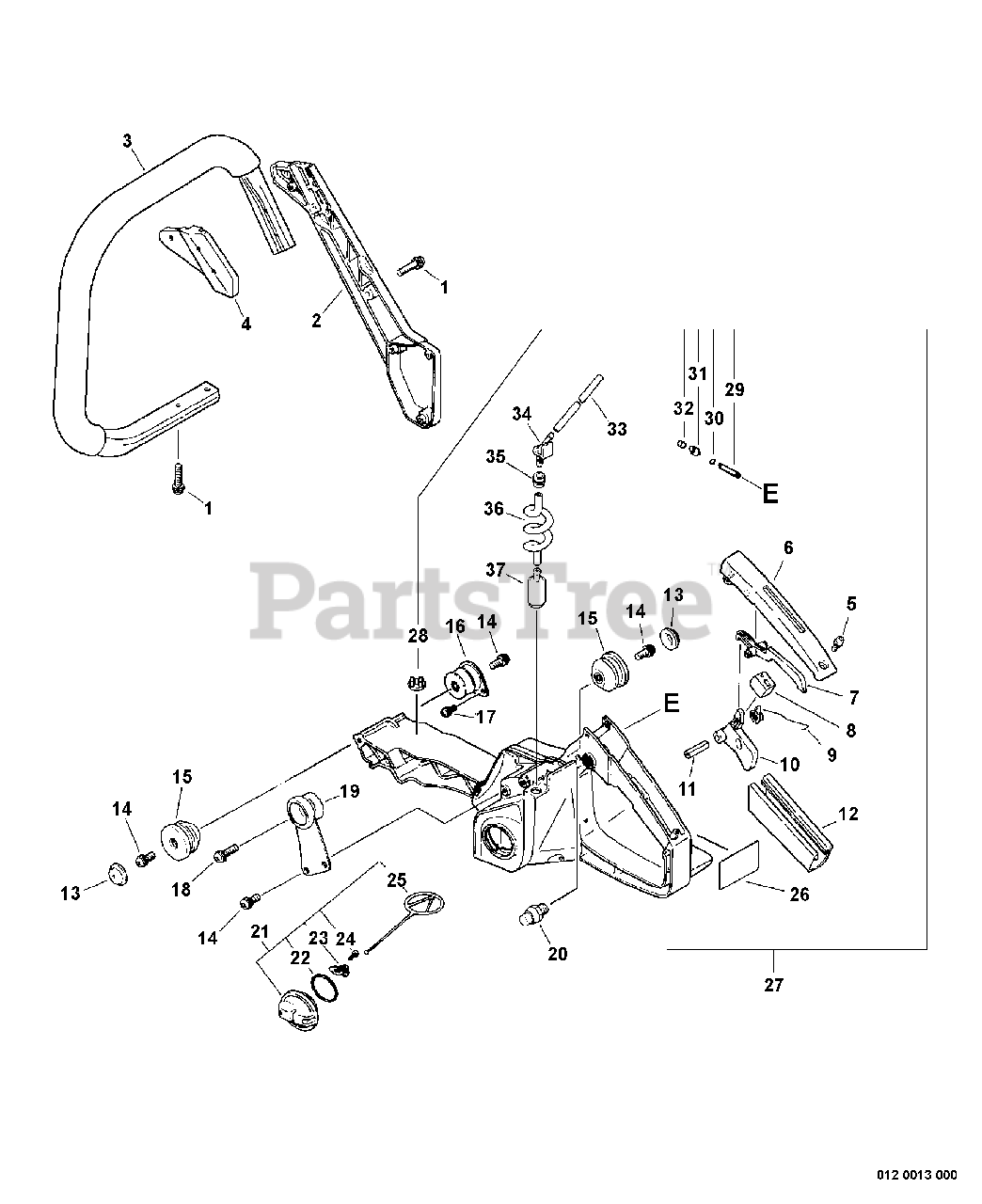

CS-8000 - Echo Chainsaw (SN: C48003001001 - C48003999999) Handles, Fuel System Parts Diagram

Chainsaw

Handles, Fuel System Parts Diagram

  • Title

1

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

2

Echo 35161338731

BRACKET, HANDLE

Note: Use With GRAY MODELS

$43.99

$

Usually ships in 2-4 days

0

2

Echo C405000330

BRACKET, HANDLE - ORANGE

Note: Use With ORANGE MODELS

$33.99

$

In Stock, only 1 left!

0

3

Echo 35160630830

HANDLE - FRONT
(Superseded to 35160630831)

$73.99

$

Usually ships in 2-4 days

0

4

Echo 35161438731

BRACKET, HANDLE

Note: Use With GRAY MODELS

$16.99

$

Usually ships in 2-4 days

0

4

Echo C405000320

BRACKET, HANDLE - ORANGE

Note: Use With ORANGE MODELS

$15.99

$

Usually ships in 2-4 days

0

5

Echo 90016204014

SCREW - 4X14

$1.49

$

In Stock, Qty 5

0

6

Echo 35115530131

COVER, HANDLE

$7.49

$

In Stock, only 4 left!

0

7

Echo 17809037930

LEVER, TRIGGER LOCKOUT

$4.99

$

Usually ships in 2-4 days

0

8

Echo 17807332430

CUSHION

$2.99

$

Usually ships in 2-4 days

0

9

Echo 17804319830

SPRING, TRIGGER

$2.49

$

In Stock, Qty 10

0

10

Echo 17801038130

TRIGGER, THROTTLE

Note: Use With GRAY MODELS

$5.99

$

In Stock, Qty 5

0

10

Echo 17801019830

TRIGGER, THROTTLE

Note: Use With ORANGE MODELS

$4.49

$

Usually ships in 2-4 days

0

11

Echo 90034250025

PIN - SPRING -- 5X25

$1.49

$

In Stock, Qty 10

0

12

Echo 35111119830

GRIP, HANDLE
(Superseded to 35111119831)

$6.49

$

Usually ships in 2-4 days

0

13

Echo 10091819830

CAP, CUSHION

$1.99

$

In Stock, Qty 8

0

14

Echo 90016205014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

15

Echo 10091030830

CUSHION

$9.99

$

In Stock, only 2 left!

0

16

Echo 10092230830

CUSHION

$11.99

$

In Stock, only 1 left!

0

17

Echo 90016204010

SCREW - 4X10

$1.49

$

In Stock, only 3 left!

0

18

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

19

Echo 10091730830

CUSHION

$22.99

$

Usually ships in 2-4 days

0

20

Echo 17830237930

LATCH, THROTTLE

$9.99

$

In Stock, only 1 left!

0

21

Echo 13100437631

CAP ASSY
(Superseded to 13100437632)

Note: INCLUDES ITEMS 22-25

$3.49

$

In Stock, Qty 14

0

22

Echo 90072020029

O-RING - 29

$3.49

$

Usually ships in 2-4 days

0

23

Echo 13105019830

RETAINER
(Superseded to Discontinued)

$

$

Not available

24

Echo 90024603008

SCREW - 3X8

$

$

Not available

25

Echo A365000050

CONNECTOR, CAP

$2.49

$

In Stock, Qty 20+

0

26

Echo X524000680

LABEL - CAUTION

$3.99

$

Usually ships in 2-4 days

0

27

Echo 35110338732

HANDLE - REAR
(Superseded to 35110338733)

Note: Includes ITEMS 28-32

$195.99

$

Usually ships in 2-4 days

0

27

Echo 35110330832

HANDLE ASSY - REAR -- ORANGE
(Superseded to 35110330833)

Note: Includes ITEMS 28-32

$169.99

$

Usually ships in 2-4 days

0

28

Echo 10025230830

CUSHION

$0.99

$

In Stock, Qty 10

0

29

Echo 43721031730

PIPE - 3X5X55 -- BLACK
(Superseded to 43721031731)

$9.49

$

In Stock, only 1 left!

0

30

Echo 13011100530

CLIP - 5.5

$0.99

$

In Stock, Qty 20+

0

31

Echo 13132840630

COVER, VENT

$6.49

$

In Stock, Qty 13

0

32

Echo A356000031

VENT, FUEL TANK

$7.99

$

In Stock, Qty 20+

0

33

Echo 13201202960

PIPE - 3X6X120 -- BLACK
(Superseded to 13201202961)

$4.49

$

Usually ships in 2-4 days

0

34

Echo 13201119831

CONNECTOR, PIPE
(Superseded to 13201133031)

$4.49

$

In Stock, only 1 left!

0

35

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.49

$

In Stock, Qty 17

0

36

Echo 13201030830

PIPE - BLACK
(Superseded to 13201030831)

$5.99

$

Usually ships in 2-4 days

0

37

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

$9.49

$

In Stock, Qty 20+

0
