CS-8000 - Echo Chainsaw (SN: C48003001001 - C48003999999) Engine Cover, Engine, Crankcase S/N: C48003004929 - C48003999999 Parts Diagram

Chainsaw

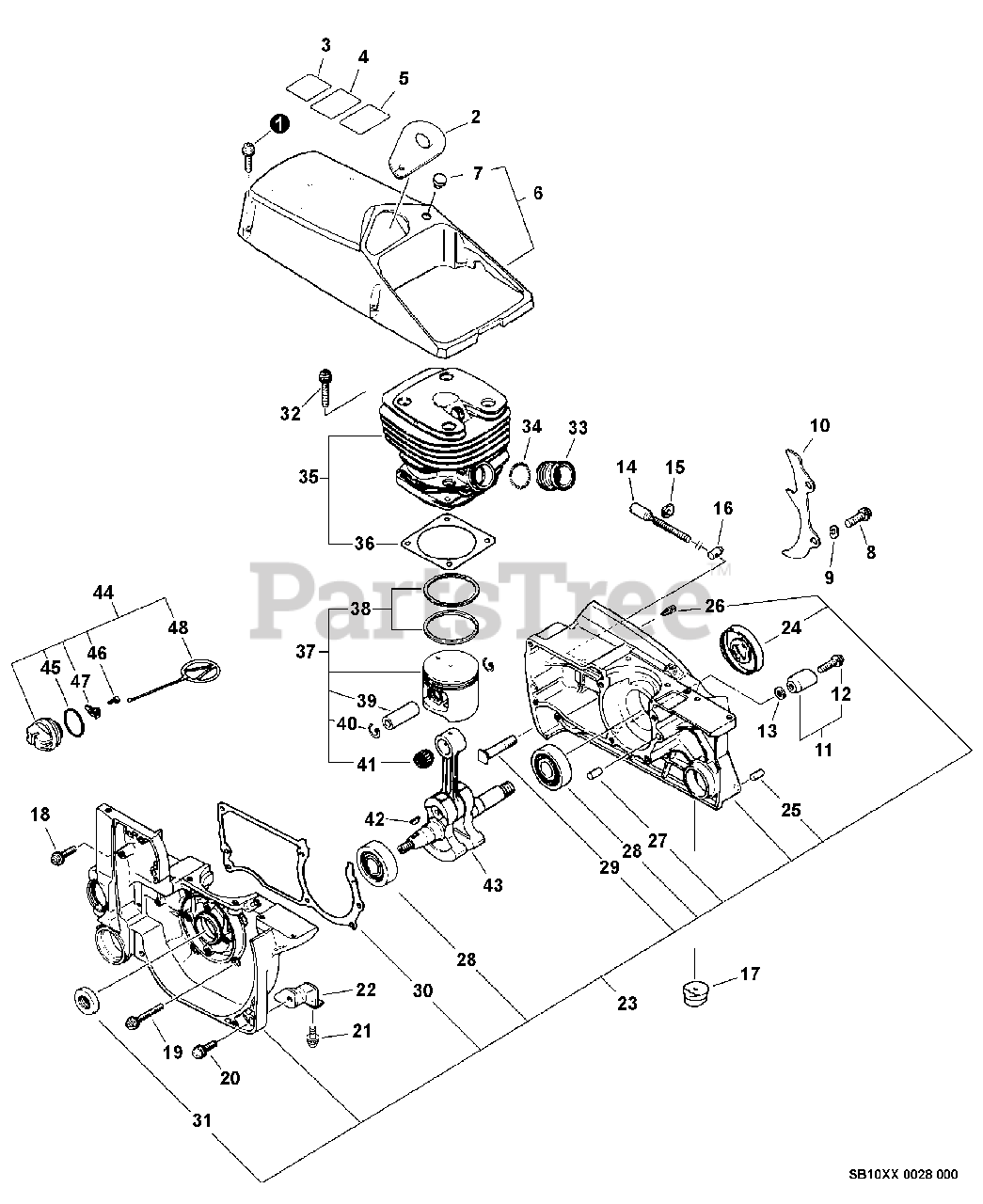

Engine Cover, Engine, Crankcase S/N: C48003004929 - C48003999999 Parts Diagram

  • Title
1

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

2

Echo 10154130831

PLATE, GUIDE

$4.49

$

Usually ships in 2-4 days

0

3

Echo 89019130131

LABEL - KICK BACK

$3.99

$

Usually ships in 2-4 days

0

4

Echo X524001672

LABEL - BAR & CHAIN

$

$

Currently unavailable

5

Echo 89019131731

LABEL - KICK BACK

$5.99

$

Usually ships in 2-4 days

0

6

Echo 10151430831

ENGINE COVER KIT - ORANGE
(Superseded to Discontinued)

Note: Includes ITEM 7

$

$

Not available

$1.99

$

Usually ships in 2-4 days

0

8

Echo 90010506020

SCREW - 6X20

$1.49

$

In Stock, only 3 left!

0

9

Echo 90060500006

LOCKWASHER - 6

$0.99

$

In Stock, only 2 left!

0

10

$9.49

$

In Stock, only 1 left!

0

11

Echo 43300019831

CHAIN CATCHER KIT
(Superseded to 43300019832)

Note: Includes ITEM 12

$2.99

$

In Stock, Qty 6

0

12

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

13

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

14

Echo 43301611031

SCREW, TENSIONER

$4.49

$

In Stock, Qty 20+

0

$0.99

$

In Stock, Qty 15

0

16

Echo 43301402830

TENSIONER, CHAIN

$4.99

$

In Stock, Qty 20+

0

17

$4.99

$

Usually ships in 2-4 days

0

18

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

19

Echo 90016205035

SCREW - 5X35

$1.49

$

In Stock, Qty 6

0

20

Echo 90016205014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

21

Echo 90023805014

SCREW - 5X14

$0.99

$

In Stock, Qty 12

0

22

$9.99

$

In Stock, only 1 left!

0

23

Echo 10020430833

CRANKCASE KIT - ORANGE

Note: Includes ITEMS 24-31

$284.99

$

Usually ships in 2-4 days

0

24

Echo 10021330830

SEAL, OIL

$5.99

$

In Stock, only 1 left!

0

25

Echo 90034550010

PIN - SPRING -- 5X10

$1.49

$

Usually ships in 2-4 days

0

26

Echo 43611413930

VENT, TANK

$6.49

$

Usually ships in 2-4 days

0

27

Echo 10021502830

PIN - LOCATING

$0.99

$

Usually ships in 2-4 days

0

28

Echo 90081036203

BEARING, BALL - 6203

$12.99

$

Usually ships in 2-4 days

0

29

Echo 43301119831

STUD, GUIDE BAR

$2.99

$

In Stock, only 1 left!

0

30

Echo 10024230830

GASKET, CRANKCASE

$5.99

$

In Stock, only 1 left!

0

31

Echo 10021219830

SEAL, OIL

$5.49

$

In Stock, only 1 left!

0

32

Echo 90016206025

SCREW - 6X25

$1.49

$

Usually ships in 2-4 days

0

33

Echo 13051030830

ADAPTOR, INTAKE

$10.99

$

In Stock, only 1 left!

0

$1.99

$

In Stock, only 3 left!

0

35

Echo P021005410

CYLINDER ASSY

Note: Includes ITEM 36

$187.99

$

Usually ships in 2-4 days

0

36

Echo 10101030830

GASKET, CYLINDER

$2.99

$

In Stock, only 1 left!

0

37

Echo P021005420

PISTON KIT
(Superseded to P021005421)

Note: Includes ITEMS 38-41

$91.99

$

In Stock, only 1 left!

0

38

Echo 10001130831

RING, PISTON

$7.99

$

Usually ships in 2-4 days

0

39

Echo V611000000

PIN, PISTON

$8.49

$

Usually ships in 2-4 days

0

40

Echo 10001530830

RING, RETAINING

$0.99

$

Usually ships in 2-4 days

0

41

Echo 10001230830

BEARING, NEEDLE

$18.99

$

Usually ships in 2-4 days

0

$1.49

$

In Stock, Qty 11

0

43

Echo 10010030830

CRANKSHAFT ASSY

$212.99

$

Usually ships in 2-4 days

0

44

Echo P021033700

CAP ASSY - BLACK
(Superseded to P021016310)

Note: Includes ITEMS 45-48

$14.99

$

In Stock, only 1 left!

0

45

Echo 90072100025

O-RING - 25

$2.49

$

In Stock, Qty 20+

0

46

Echo 90024603008

SCREW - 3X8

$

$

Not available

47

Echo 13105019830

RETAINER
(Superseded to Discontinued)

$

$

Not available

48

Echo A365000050

CONNECTOR, CAP

$2.49

$

In Stock, Qty 20+

0
