CS-8000 - Echo Chainsaw (SN: C48003001001 - C48003999999) Clutch Parts Diagram

Chainsaw

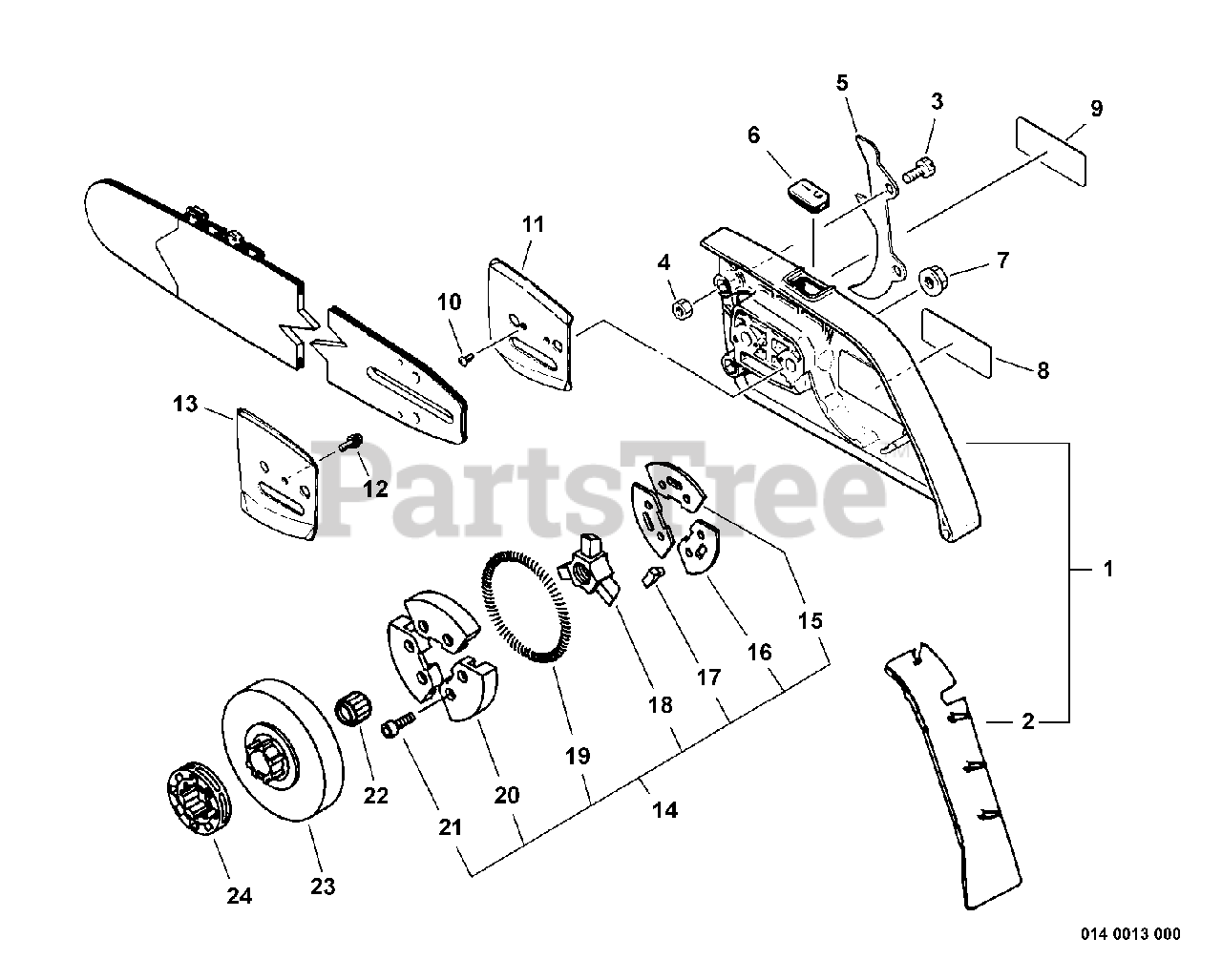

Clutch Parts Diagram

  • Title

1

Echo 43300238733

GUARD, SPROCKET

Note: Includes ITEM 2

$66.99

$

Usually ships in 2-4 days

0

1

Echo 43300230832

SPROCKET GUARD KIT - ORANGE

Note: Includes ITEM 2

$51.99

$

Usually ships in 2-4 days

0

2

Echo 43302530830

PAD

$16.99

$

Usually ships in 2-4 days

0

3

Echo 88021131730

SCREW

$1.49

$

In Stock, only 4 left!

0

4

Echo 90056000006

LOCKNUT

$1.49

$

In Stock, Qty 20+

0

5

Echo 88021030830

SPIKE

$9.49

$

In Stock, only 1 left!

0

6

Echo 43331219930

SEAL

$2.99

$

In Stock, only 1 left!

0

7

Echo 43301912330

NUT - FLANGE
(Superseded to V265000200)

$1.99

$

In Stock, Qty 20+

0

8

Echo X502000560

LABEL - ECHO

$1.49

$

In Stock, only 3 left!

0

9

Echo X505002040

LABEL - WARNING
(Superseded to X505002041)

$3.49

$

Usually ships in 2-4 days

0

10

Echo 90024103006

SCREW - 3X6

$0.99

$

In Stock, only 2 left!

0

11

Echo 43301230830

PLATE, GUIDE - OUTER

$5.49

$

In Stock, only 4 left!

0

12

Echo 90024104008

SCREW - 4X8

$0.99

$

In Stock, Qty 11

0

13

Echo 43301330830

PLATE, GUIDE - INNER

$5.49

$

In Stock, only 3 left!

0

14

Echo 17500030832

CLUTCH ASSY

Note: Includes ITEMS 15-21

$125.99

$

Usually ships in 2-4 days

0

15

Echo 17501930830

PLATE, CLUTCH

$2.99

$

Usually ships in 2-4 days

0

16

Echo 17502930830

PLATE, CLUTCH

$2.99

$

Usually ships in 2-4 days

0

17

Echo 17505930830

PLATE, SPRING

$1.99

$

Usually ships in 2-4 days

0

18

Echo 17501630830

HUB, CLUTCH

$16.99

$

Usually ships in 2-4 days

0

19

Echo 17501830830

SPRING, CLUTCH

$3.49

$

Usually ships in 2-4 days

0

20

Echo 17500230831

CLUTCH SHOE SET

$27.99

$

Usually ships in 2-4 days

0

21

Echo 90010504008

SCREW - 4X8

$0.99

$

In Stock, Qty 6

0

22

Echo 17501230831

BEARING, NEEDLE

$13.99

$

In Stock, only 1 left!

0

23

Echo 17510530831

DRUM, CLUTCH

$46.99

$

Usually ships in 2-4 days

0

24

Echo 682100

SPROCKET, RIM

$14.99

$

In Stock, only 1 left!

0
