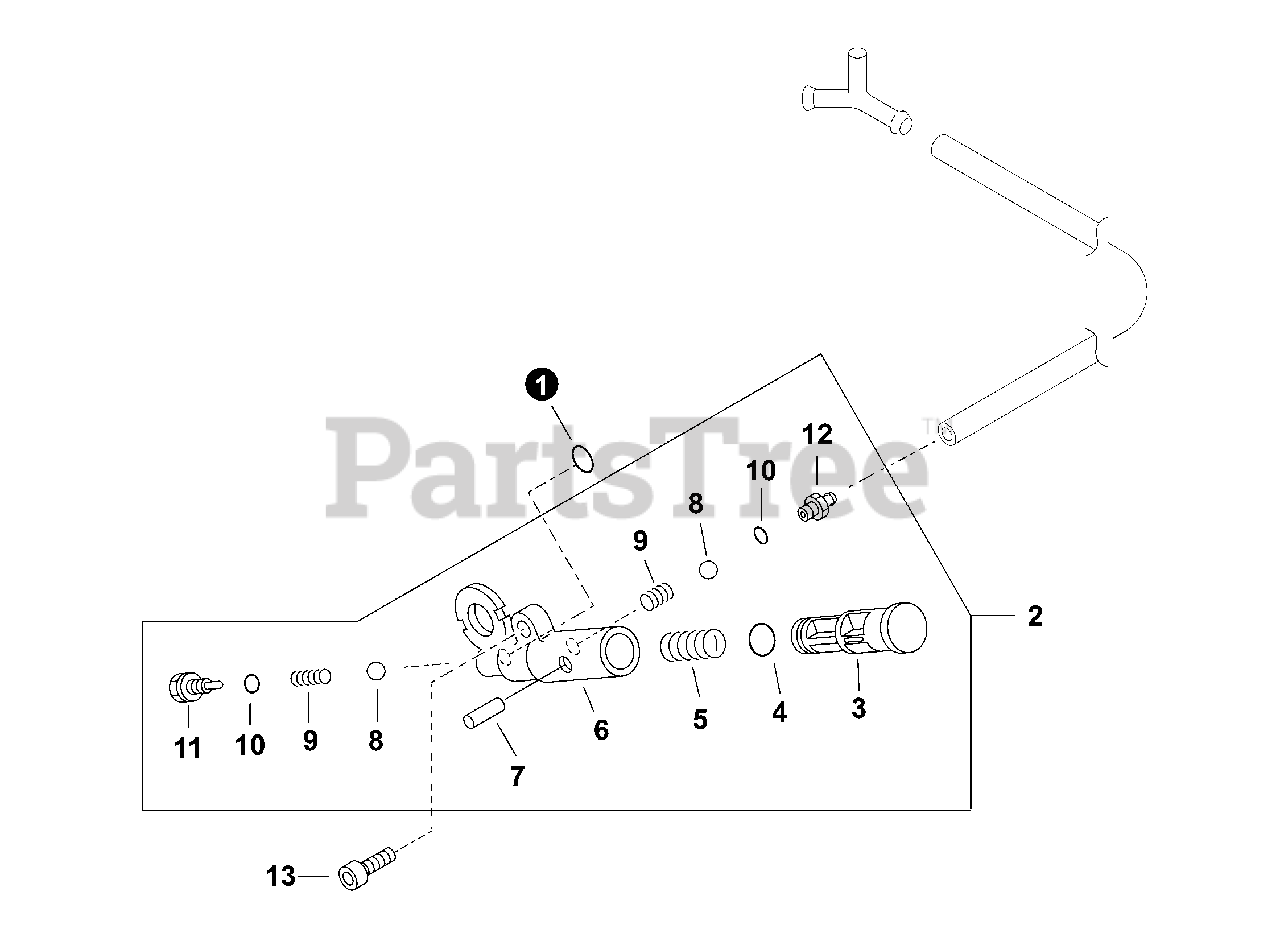

CS-800 P - Echo Chainsaw (SN: C68715001001 - C68715999999) Oil Pump Parts Diagram

Chainsaw

Oil Pump Parts Diagram

  • Title
1

Echo 90072000003

O-RING 3

$1.49

$

In Stock, Qty 11

0

2

Echo 43710019832

OIL PUMP ASSY

Note: Includes Items 3-12

$22.99

$

In Stock, only 1 left!

0

3

Echo 43711219831

PISTON, OIL PUMP

$4.49

$

In Stock, only 1 left!

0

4

Echo 90072000007

O-RING 7 MM

$0.99

$

In Stock, only 1 left!

0

5

$1.49

$

In Stock, only 4 left!

0

6

Echo 43711019831

BODY, OIL PUMP

$7.99

$

Usually ships in 2-4 days

0

7

Echo 90034520016

PIN, SPRING 2×16

$1.99

$

Usually ships in 2-4 days

0

8

Echo 43701200330

VALVE, BALL

$0.99

$

In Stock, Qty 8

0

9

Echo V450000290

SPRING, COMPRESSION

$0.99

$

In Stock, Qty 8

0

10

$1.49

$

In Stock, Qty 5

0

11

Echo 43712110130

ADAPTOR, OIL PUMP

$4.99

$

Usually ships in 2-4 days

0

12

Echo 43711819830

CONNECTOR, PIPE

$3.49

$

Usually ships in 2-4 days

0

13

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0
