CS-800 P - Echo Chainsaw (SN: C68715001001 - C68715999999) Intake Parts Diagram

Chainsaw

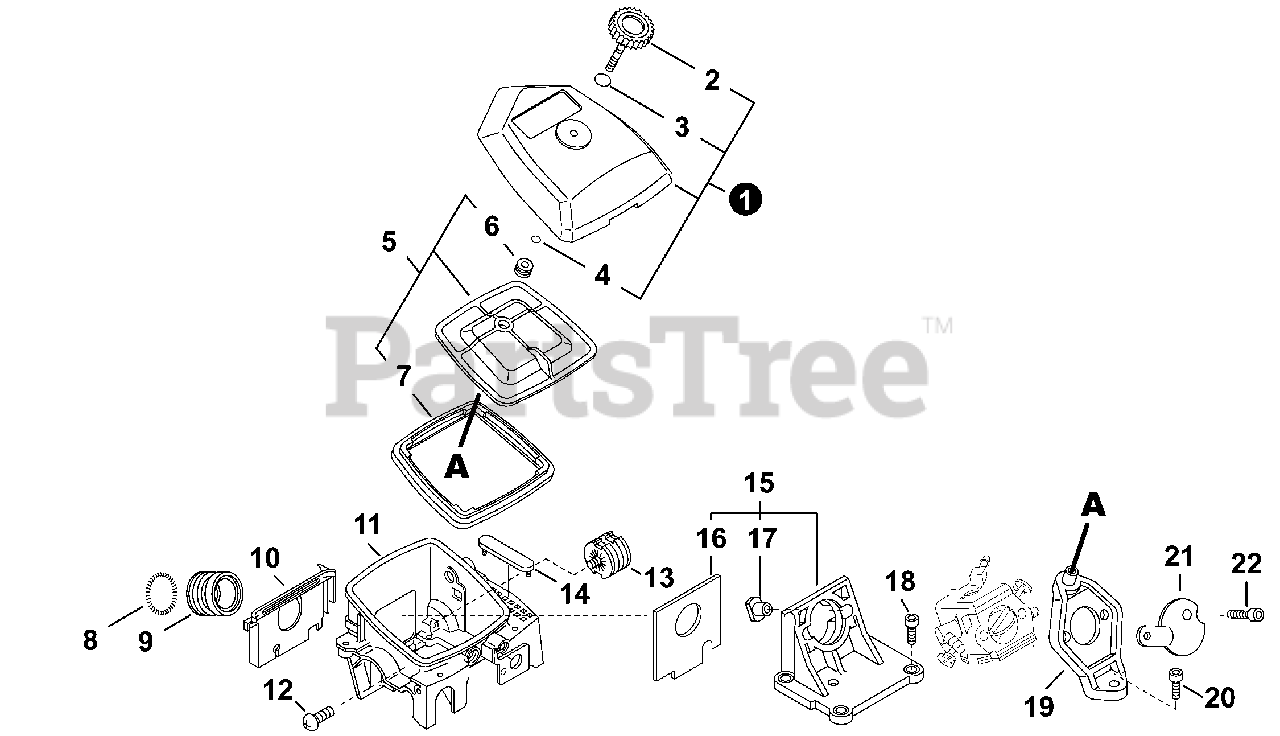

Intake Parts Diagram

  • Title

1

Echo P021042221

COVER ASSY, AIR FILTER

Note: Includes Items 2-4

$17.99

$

Usually ships in 2-4 days

0

2

Echo 13040630830

THUMBSCREW

$5.99

$

Usually ships in 2-4 days

0

3

Echo 90072000010

O-RING 10

$1.49

$

Usually ships in 2-4 days

0

4

Echo 90072000003

O-RING 3

$1.49

$

In Stock, Qty 10

0

5

Echo P100003240

FILTER ASSY, AIR
(Superseded to 13030330831)

Note: Includes Items 6-7

$27.99

$

In Stock, only 1 left!

0

6

Echo 13035619830

GROMMET

$0.99

$

In Stock, Qty 7

0

7

Echo 13032030831

SEAL, AIR FILTER

$8.99

$

Usually ships in 2-4 days

0

8

Echo 13051630830

BAND

$1.99

$

In Stock, only 3 left!

0

9

Echo 13051030830

ADAPTOR, INTAKE

$10.99

$

In Stock, only 1 left!

0

10

Echo 10152930830

PLATE, GUIDE

$11.99

$

Usually ships in 2-4 days

0

11

Echo 13030630830

CASE, CARBURETOR

$64.99

$

Usually ships in 2-4 days

0

12

Echo 90022004008

SCREW 4×8

$0.99

$

In Stock, only 3 left!

0

13

Echo 10090519830

CUSHION

$24.99

$

Usually ships in 2-4 days

0

14

Echo 13033930830

PLUG
(Superseded to Discontinued)

$

$

Not available

15

Echo 13000730832

INSULATOR KIT, INTAKE

Note: Includes Items 16-17

$14.99

$

In Stock, only 1 left!

0

16

Echo 13001230831

SEAL, DUST

$1.99

$

Usually ships in 2-4 days

0

17

Echo 13002033330

NUT

$3.49

$

In Stock, Qty 5

0

18

Echo 90016205025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

0

19

Echo 13040530831

BRACKET, AIR FILTER

$8.49

$

Usually ships in 2-4 days

0

20

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

21

Echo 12901119831

PLATE

$3.49

$

Usually ships in 2-4 days

0

22

Echo 90016205055

BOLT 5×55

$2.49

$

Usually ships in 2-4 days

0
