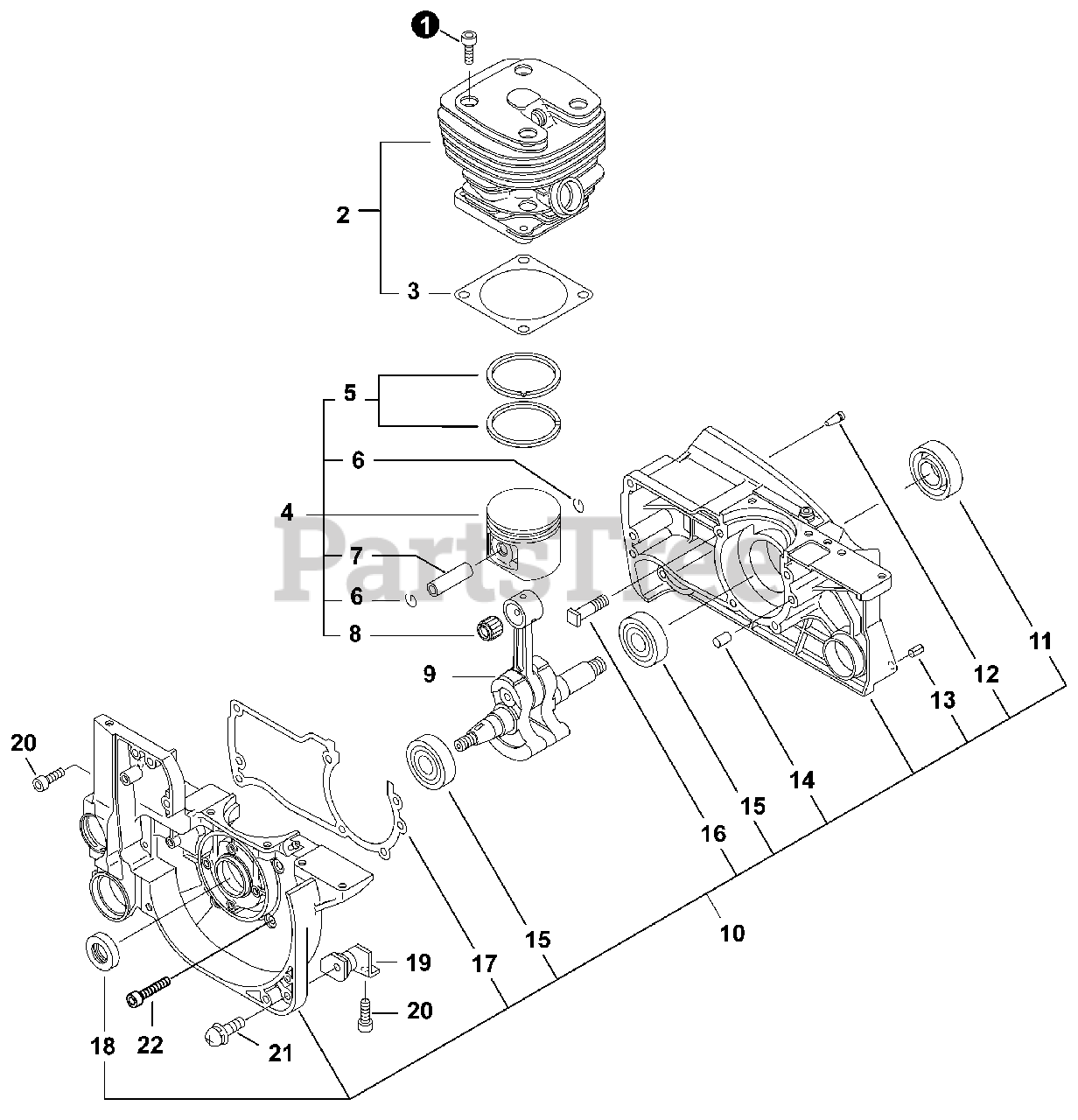

CS-800 P - Echo Chainsaw (SN: C68715001001 - C68715999999) Engine Parts Diagram

Chainsaw

Engine Parts Diagram

  • Title

1

Echo 90016206025

BOLT 6×25

$1.49

$

Usually ships in 2-4 days

0

2

Echo P021005410

CYLINDER ASSY

Note: Includes Item 3

$187.99

$

Usually ships in 2-4 days

0

3

Echo 10101030830

GASKET, CYLINDER

$2.99

$

In Stock, only 1 left!

0

4

Echo P021005421

PISTON KIT

Note: Includes Items 5-8

$91.99

$

In Stock, only 1 left!

0

5

Echo 10001130831

RING, PISTON

$7.99

$

Usually ships in 2-4 days

0

6

Echo 10001530830

RING, RETAINING

$0.99

$

Usually ships in 2-4 days

0

7

Echo V611000000

PIN, PISTON

$8.49

$

Usually ships in 2-4 days

0

8

Echo 10001230830

BEARING, NEEDLE

$18.99

$

Usually ships in 2-4 days

0

9

Echo 10010030830

CRANKSHAFT

$212.99

$

Usually ships in 2-4 days

0

10

Echo 10020430833

CRANKCASE KIT - ORANGE

Note: Includes Items 11-18

$284.99

$

Usually ships in 2-4 days

0

11

Echo 10021330830

SEAL, OIL

$5.99

$

In Stock, only 1 left!

0

12

Echo 43611413930

VENT ASSY

$6.49

$

In Stock, only 1 left!

0

13

Echo 90034550010

PIN, SPRING 5×10

$1.49

$

Usually ships in 2-4 days

0

14

Echo 90033050100

PIN, LOCATING 5×10

$0.99

$

Usually ships in 2-4 days

0

15

Echo 90081036203

BEARING, BALL 6203 C3

$12.99

$

Usually ships in 2-4 days

0

16

Echo 43301119831

STUD, GUIDE BAR 8

$2.99

$

In Stock, only 2 left!

0

17

Echo 10024230830

GASKET, CRANKCASE

$5.99

$

In Stock, only 1 left!

0

18

Echo 10021219830

SEAL, OIL

$5.49

$

In Stock, only 1 left!

0

19

Echo 10092130830

CUSHION

$9.99

$

In Stock, only 1 left!

0

20

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

21

Echo 90023805014

SCREW 5×14

$0.99

$

In Stock, Qty 12

0

22

Echo 90016205035

BOLT M5×35

$1.49

$

In Stock, Qty 6

0
