Echo CS-800 P - Echo Chainsaw (SN: C30913001001 - C30913999999) Handles, Throttle Control, Fuel System Parts Lookup with Diagrams

1

Echo V471003760

PIPE

(Superseded to V471003761) 

$4.99

$

In Stock, only 1 left!

2

Echo 13201133031

CONNECTOR, PIPE

$4.49

$

In Stock, only 1 left!

3

Echo 13211501461

GROMMET

(Superseded to 13211501462) 

$1.49

$

In Stock, Qty 9

4

Echo 13201030830

PIPE, FUEL

(Superseded to 13201030831) 

$5.99

$

In Stock, only 1 left!

5

Echo V490001230

CLIP Ø6.5MM

$0.99

$

In Stock, Qty 20+

6

Echo 13120519832

FILTER, FUEL

(Superseded to A369000460) 

$9.49

$

In Stock, Qty 20+

7

Echo 35115530131

COVER, HANDLE

$7.49

$

In Stock, only 4 left!

8

Echo 90016204014

BOLT 4×14

$1.49

$

In Stock, Qty 5

9

Echo 17809037930

LEVER, THROTTLE LOCKOUT

$4.99

$

In Stock, only 1 left!

10

Echo 17807332430

CUSHION, THROTTLE

$2.99

$

Usually ships in 2-4 days

11

Echo 17804319830

SPRING, THROTTLE RETURN

$2.49

$

In Stock, Qty 10

12

Echo 17801019830

TRIGGER, THROTTLE

$4.49

$

Usually ships in 2-4 days

13

Echo 90034250025

PIN, SPRING 5×25

$1.49

$

In Stock, Qty 10

14

Echo 35111119830

GRIP, HANDLE

(Superseded to 35111119831) 

$6.49

$

In Stock, only 1 left!

15

Echo 10091819830

CAP, CUSHION

$1.99

$

In Stock, Qty 9

16

Echo 90016205014

BOLT 5×14

$1.49

$

In Stock, Qty 20+

17

Echo 10091030830

CUSHION

$9.99

$

In Stock, only 2 left!

18

Echo 35110330833

HANDLE ASSY, REAR

(Superseded to P200000790) 

Note: Includes Items 19-23

$169.99

$

Usually ships in 2-4 days

19

Echo 13130056431

VENT ASSY

$7.49

$

In Stock, Qty 10

20

Echo 13132840630

HOLDER, VENT

$6.49

$

In Stock, Qty 13

21

Echo 13011100530

CLIP 5.5

$0.99

$

In Stock, Qty 20+

22

Echo 43721031730

PIPE 3×5×55

(Superseded to 43721031731) 

$9.49

$

In Stock, only 1 left!

23

Echo 10025230830

CUSHION

$0.99

$

In Stock, Qty 10

24

Echo V162000040

PLUG

$1.99

$

In Stock, only 4 left!

25

Echo P021037420

CAP ASSY, FUEL

Note: Includes Items 26-29

$3.49

$

In Stock, Qty 18

26

Echo A365000050

CONNECTOR, CAP L=60mm

$2.49

$

In Stock, Qty 20+

27

Echo 90024603008

SCREW, TAPPING 3×8

$

Not available 

28

Echo 13105019830

RETAINER, CONNECTOR

(Superseded to Discontinued) 

$

Not available 

29

Echo V581000600

O-RING 29

$2.49

$

In Stock, only 2 left!

30

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

31

Echo 10091730830

CUSHION

$22.99

$

Usually ships in 2-4 days

32

Echo 10092230830

CUSHION

$11.99

$

In Stock, only 1 left!

33

Echo 90016204010

BOLT 4×10

$1.49

$

In Stock, Qty 15

34

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

35

Echo 30511406060

BRACKET

$6.99

$

Usually ships in 2-4 days

36

Echo 35160660831

HANDLE, FRONT

$72.99

$

Usually ships in 2-4 days

37

Echo 35161460830

BRACKET, FRONT HANDLE

$30.99

$

Usually ships in 2-4 days

38

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

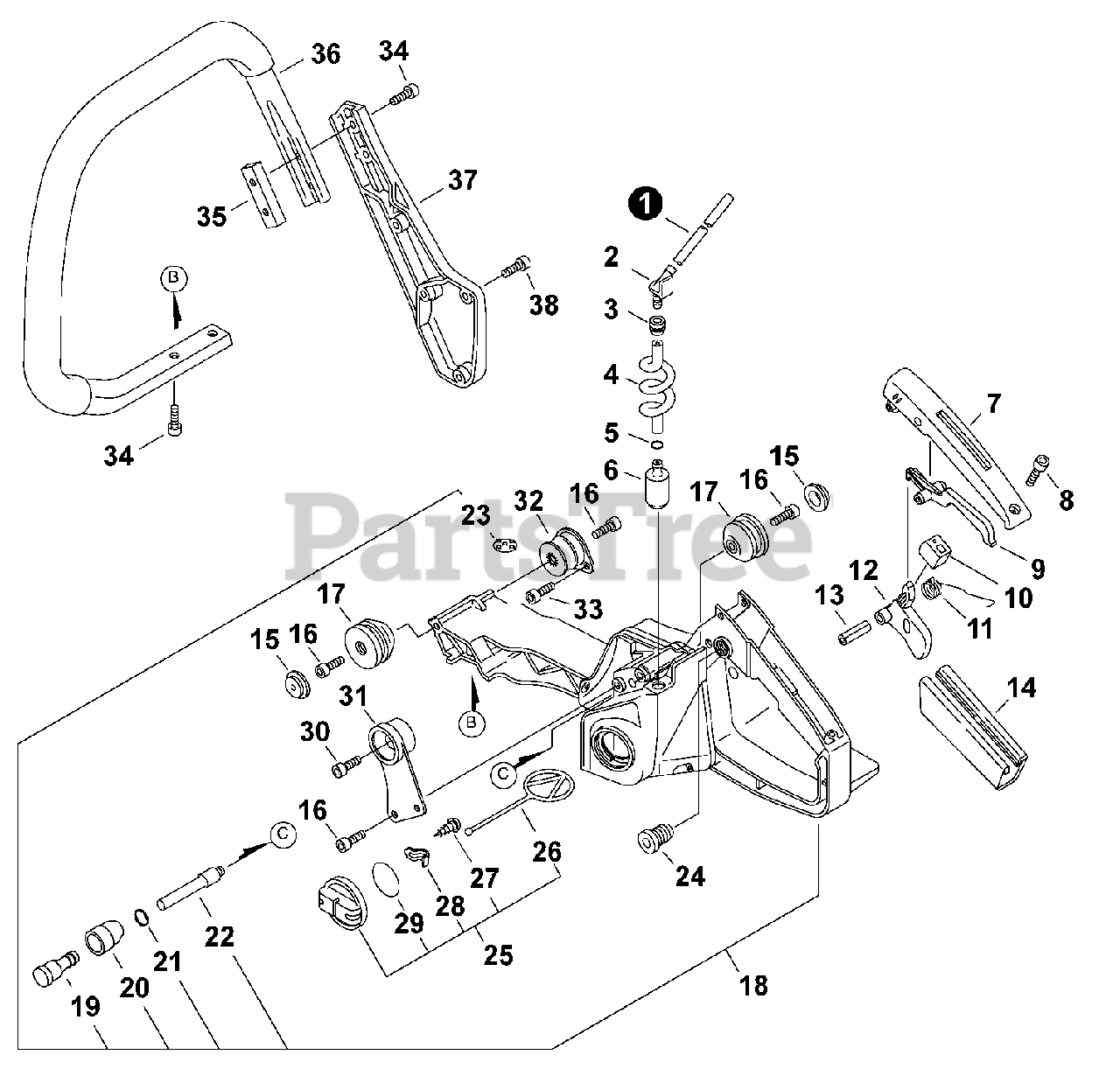

CS-800 P - Echo Chainsaw (SN: C30913001001 - C30913999999) Handles, Throttle Control, Fuel System Parts Diagram

Handles, Throttle Control, Fuel System Parts Diagram

Echo V471003760

Echo 13201133031

Echo 13211501461

Echo 13201030830

Echo V490001230

Echo 13120519832

Echo 35115530131

Echo 90016204014

Echo 17809037930

Echo 17807332430

Echo 17804319830

Echo 17801019830

Echo 90034250025

Echo 35111119830

Echo 10091819830

Echo 90016205014

Echo 10091030830

Echo 35110330833

Echo 13130056431

Echo 13132840630

Echo 13011100530

Echo 43721031730

Echo 10025230830

Echo V162000040

Echo P021037420

Echo A365000050

Echo 90024603008

Echo 13105019830

Echo V581000600

Echo 90016205020

Echo 10091730830

Echo 10092230830

Echo 90016204010

Echo 90016205020

Echo 30511406060

Echo 35160660831

Echo 35161460830

Echo 90016205020
