CS-800 P - Echo Chainsaw (SN: C30812001001 - C30812999999) Clutch Parts Diagram

Chainsaw

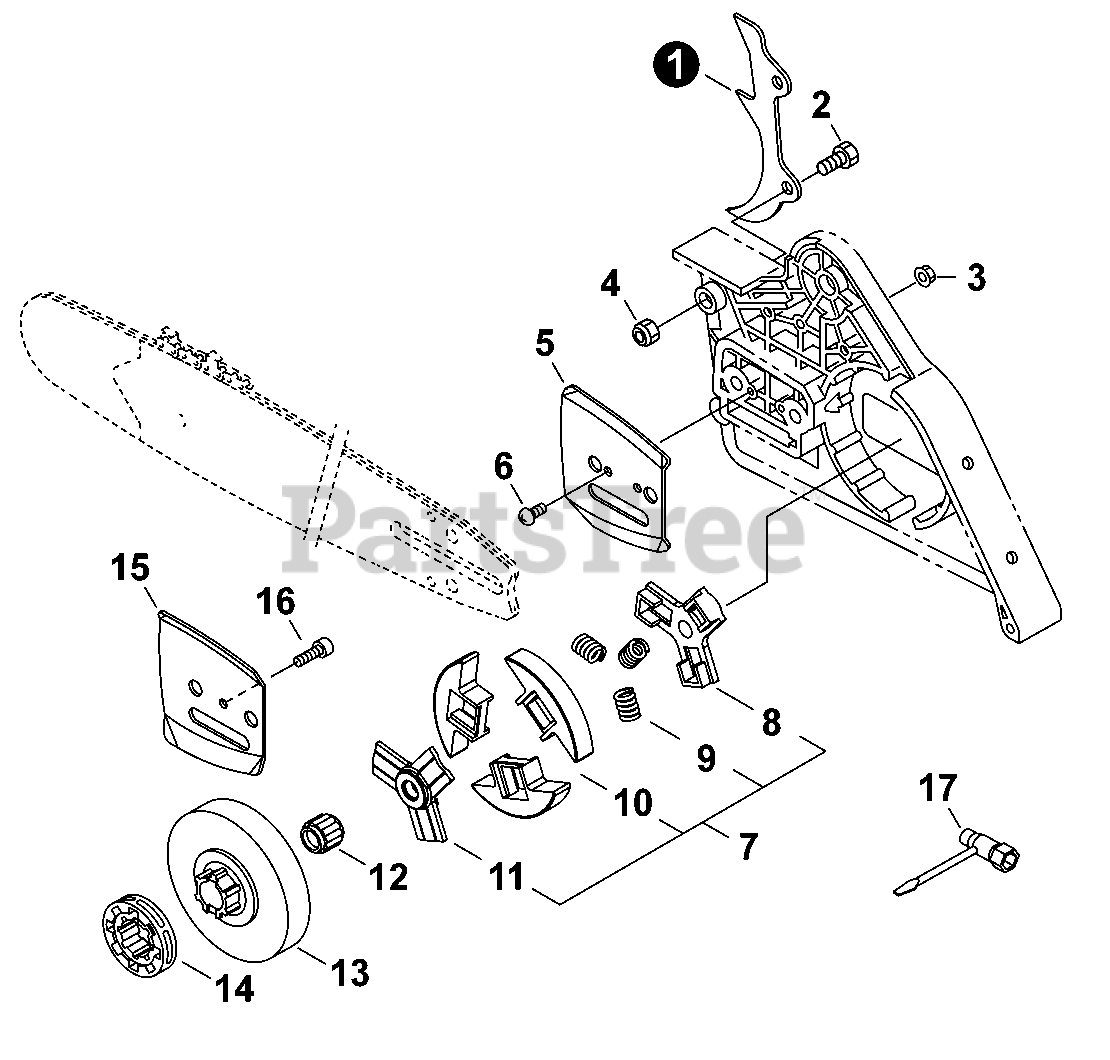

Clutch Parts Diagram

  • Title

1

Echo 88021030830

SPIKE, BUMPER

$9.49

$

In Stock, only 2 left!

0

2

Echo 88021131730

BOLT

$1.49

$

In Stock, only 4 left!

0

3

Echo V265000200

NUT 8

$1.99

$

In Stock, Qty 20+

0

4

Echo 90056000006

NUT, LOCK 6

$1.49

$

In Stock, Qty 20+

0

5

Echo 43301230830

PLATE, GUIDE - OUTER

$5.49

$

In Stock, only 4 left!

0

6

Echo 90024103006

SCREW 3×6

Note: Includes Items 11-14

$0.99

$

In Stock, only 2 left!

0

7

Echo A056000730

CLUTCH ASSY

$96.99

$

Usually ships in 2-4 days

0

8

Echo A552000370

HUB, CLUTCH

$17.99

$

Usually ships in 2-4 days

0

9

Echo A566000210

SPRING, CLUTCH

$1.99

$

In Stock, only 3 left!

0

10

Echo P021042250

SHOE, CLUTCH (QTY. 3)

$30.99

$

Usually ships in 2-4 days

0

11

Echo A552000360

HUB, CLUTCH

$14.99

$

In Stock, only 1 left!

0

12

Echo 17501230831

BEARING, NEEDLE

$13.99

$

In Stock, only 1 left!

0

13

Echo 17510530831

DRUM, CLUTCH

$46.99

$

Usually ships in 2-4 days

0

14

Echo 682100

SPROCKET, RIM 3/8"×7T

$14.99

$

In Stock, only 3 left!

0

15

Echo 43301330830

PLATE, GUIDE - INNER

$5.49

$

In Stock, only 3 left!

0

16

Echo 90024104008

SCREW 4×8

$0.99

$

In Stock, Qty 11

0

17

Echo X602000080

T-WRENCH 13×19 L=180

$3.99

$

In Stock, Qty 10

0
