CS-750 EVL - Echo Chainsaw Fuel System, Auto-Oiler Parts Diagram

Chainsaw

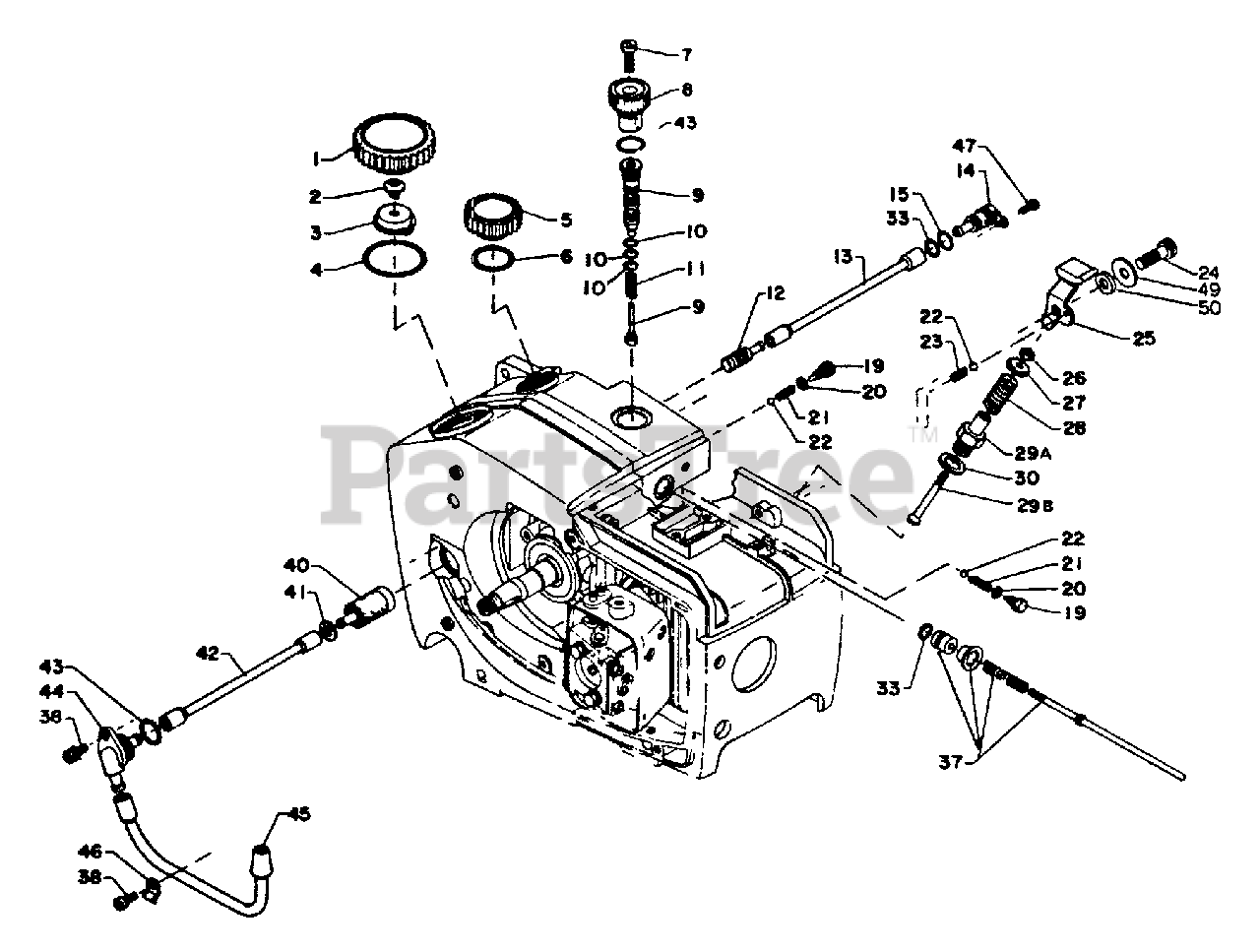

Fuel System, Auto-Oiler Parts Diagram

  • Title

Echo 13160010231

CAP ASSY
(Superseded to Discontinued)

Note: Consists of 1-4 and Decal reference 7

$

$

Not available

7

Echo 89015412730

LABEL - FUEL MIX
(Superseded to 89014706160)

$

$

Not available

1

Echo 13101710231

CAP
(Superseded to 13100610231)

$

$

Not available

2

Echo 13131400330

VENT

$11.99

$

Usually ships in 2-4 days

0

3

Echo 13101500830

HOLDER, VENT

$3.49

$

In Stock, only 1 left!

0

4

Echo 90072000029

O-RING - 29

$3.49

$

In Stock, Qty 18

0

Echo 43600213030

CAP ASSY
(Superseded to 43600213031)

Note: Consists of 5 and 6 and Decal reference 8

$9.99

$

Usually ships in 2-4 days

0

8

Echo 89015313030

LABEL - CHAIN OIL
(Superseded to 89015311830)

$1.49

$

Usually ships in 2-4 days

0

5

Echo 43600010632

CAP, OIL TANK
(Superseded to 43600213030)

$9.99

$

Usually ships in 2-4 days

0

6

Echo 90072000025

O-RING - 25
(Superseded to Discontinued)

$

$

Not available

7

Echo 43701603430

SCREW
(Superseded to 90022005014)

$0.99

$

In Stock, Qty 7

0

8

Echo 43703910232

DIAL, AUTO-OILER

$2.99

$

Usually ships in 2-4 days

0

9

Echo 43700010230

AUTO-OILER ASSY
(Superseded to Discontinued)

$

$

Not available

10

Echo 43702002830

O-RING - 5

$1.99

$

Usually ships in 2-4 days

0

11

Echo 43701902830

SPRING

$1.49

$

In Stock, Qty 6

0

12

Echo 43620502832

FILTER, OIL

$8.99

$

Usually ships in 2-4 days

0

13

Echo 43721112130

PIPE, OIL - OUTER
(Superseded to 43731112730)

Note: ITEM IS NO LONGER AVAILABLE

$

$

Not available

14

Echo 43730611030

CONNECTOR
(Superseded to Discontinued)

$

$

Not available

15

Echo 90072000007

O-RING - 7

$0.99

$

In Stock, only 1 left!

0

19

Echo 43712103430

ADAPTER, OIL PUMP
(Superseded to Discontinued)

$

$

Not available

20

Echo 43712203430

O-RING

$1.49

$

In Stock, Qty 5

0

21

Echo 43701300330

SPRING, VALVE
(Superseded to V450000290)

$0.99

$

In Stock, Qty 8

0

22

Echo 10022503930

BALL
(Superseded to 90073109064)

$0.99

$

Usually ships in 2-4 days

0

23

Echo 17981703630

SPRING

$0.99

$

Usually ships in 2-4 days

0

24

Echo 90010505015

SCREW - 5X15

$1.49

$

Usually ships in 2-4 days

0

25

Echo 17980512431

LEVER, DECOMPRESSION
(Superseded to Discontinued)

$

$

Not available

25

Echo 10110002831

DECOMPRESSION ASSY

Note: Consists of 26-29A and 29B

$35.99

$

Usually ships in 2-4 days

0

26

Echo 90050000004

NUT - 4

$0.99

$

In Stock, Qty 20+

0

27

Echo 10111402831

WASHER

$2.49

$

Usually ships in 2-4 days

0

28

Echo 10111302830

SPRING, VALVE

$1.49

$

Usually ships in 2-4 days

0

30

Echo 10111202830

GASKET

$1.99

$

In Stock, only 1 left!

0

33

Echo 90072000006

O-RING - 6

$1.49

$

In Stock, only 3 left!

0

37

Echo 70700010230

PUMP ROD ASSY
(Superseded to Discontinued)

$

$

Not available

38

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 6

0

40

Echo 13120002830

FILTER, FUEL
(Superseded to 13120514930)

$8.99

$

In Stock, Qty 20+

0

41

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

42

Echo 43731010231

PIPE - FUEL
(Superseded to Discontinued)

Note: ITEM IS NO LONGER AVAILABLE

$

$

Not available

43

Echo 90072000012

O-RING - 12

$1.49

$

In Stock, only 2 left!

0

44

Echo 13201103431

CONNECTOR, PIPE
(Superseded to Discontinued)

$

$

Not available

45

Echo 13201810231

PIPE, FUEL - OUTER

$

$

Not available

46

Echo 13211203930

CLAMP

$0.99

$

Usually ships in 2-4 days

0

47

Echo 90024103008

SCREW - 3X8

$0.99

$

Usually ships in 2-4 days

0

49

Echo 17721402830

WASHER - 5

$0.99

$

In Stock, Qty 5

0

50

Echo 17724704630

SPACER

$1.99

$

In Stock, Qty 9

0
