CS-750 EVL - Echo Chainsaw Exhaust, Spark Arrestor Parts Diagram

Chainsaw

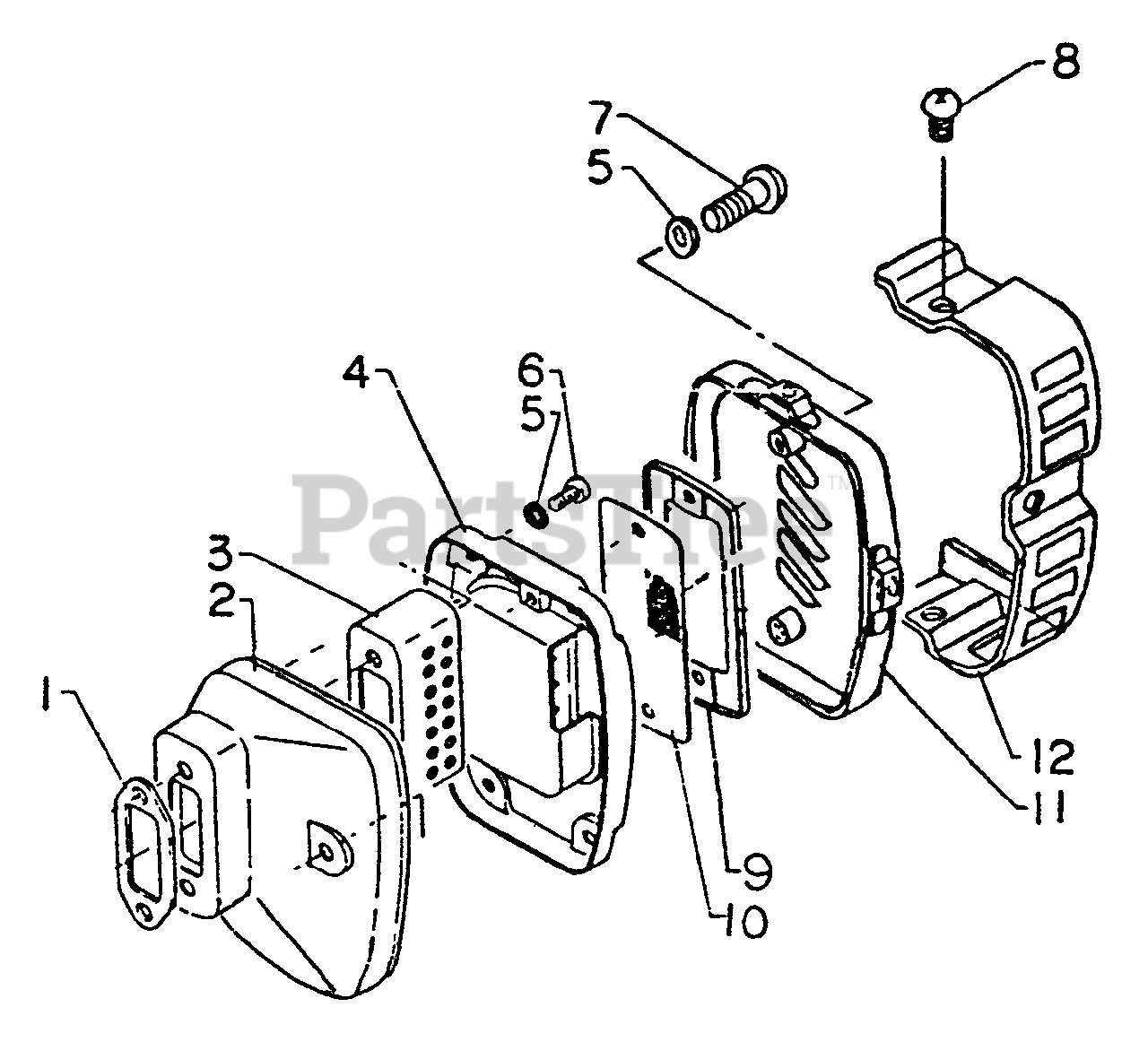

Exhaust, Spark Arrestor Parts Diagram

  • Title

Echo 14580310230

MUFFLER ASSY
(Superseded to 14580310231)

Note: Consists of 1-12

$

$

Not available

1

Echo 14551003730

GASKET, EXHAUST
(Superseded to 14551003731)

$

$

Not available

2

Echo 14560503731

MUFFLER
(Superseded to Discontinued)

$

$

Not available

3

Echo 14561203730

BAFFLE, MUFFLER
(Superseded to Discontinued)

$

$

Not available

4

Echo 14580803730

LID, MUFFLER
(Superseded to Discontinued)

$

$

Not available

5

Echo 90061000005

LOCKWASHER - 5

$0.99

$

Usually ships in 2-4 days

0

6

Echo 14564303730

SCREW - 5X8
(Superseded to Discontinued)

$

$

Not available

7

Echo 14564310630

SCREW - 5X16

$0.99

$

Usually ships in 2-4 days

0

8

Echo 90024104006

SCREW - 4X6

$0.99

$

In Stock, only 3 left!

0

9

Echo 14596303431

RETAINER, SCREEN

$

$

Currently unavailable

10

Echo 14586203431

SCREEN, SPARK ARRESTOR
(Superseded to Discontinued)

$

$

Not available

11

Echo 14590810230

LID, MUFFLER
(Superseded to 14590810231)

$19.99

$

Usually ships in 2-4 days

0

12

Echo 14587110230

COVER, EXHAUST

$14.99

$

Usually ships in 2-4 days

0
