CS-750 EVL - Echo Chainsaw Engine, Intake, Exhaust, Crankcase Parts Diagram

Chainsaw

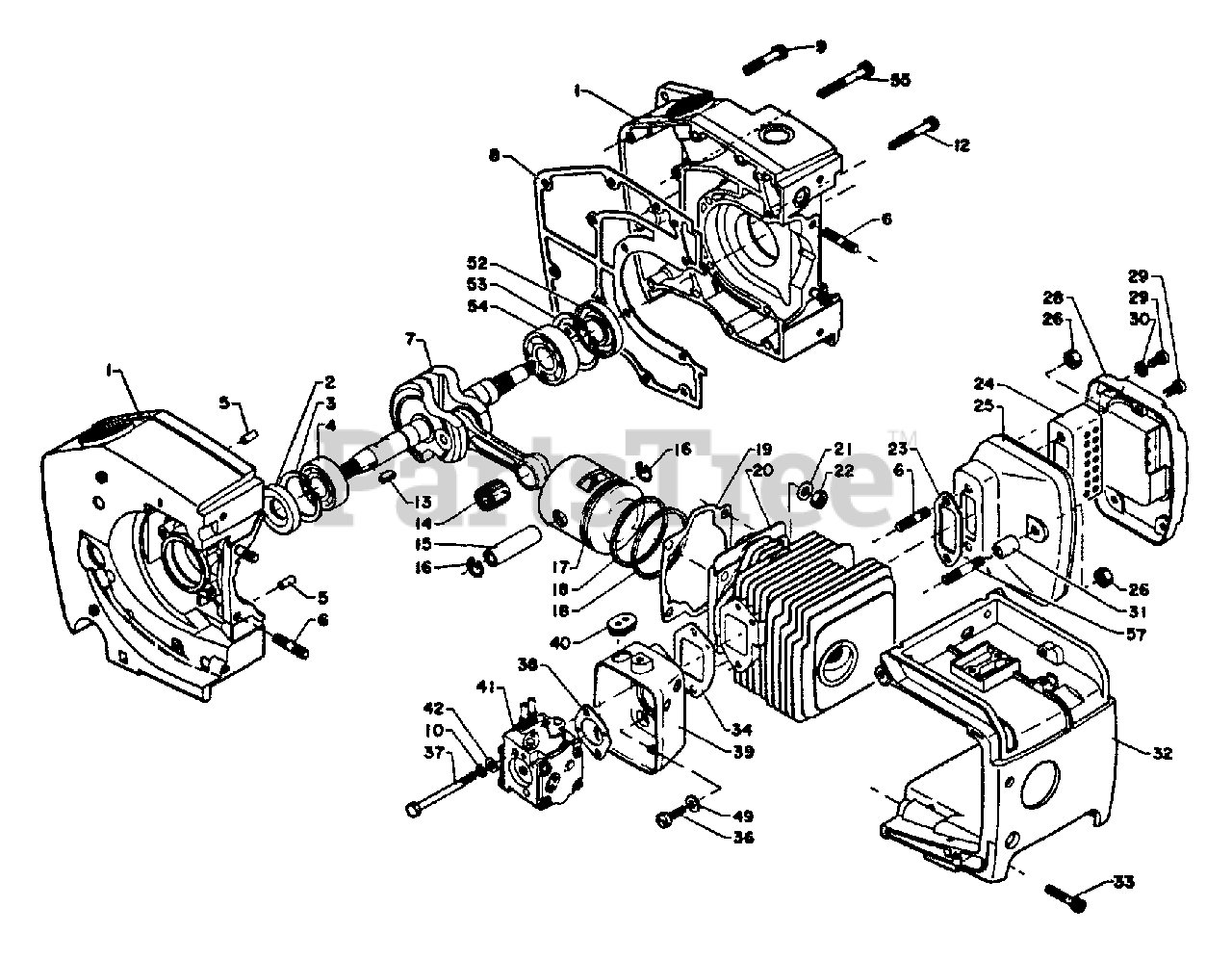

Engine, Intake, Exhaust, Crankcase Parts Diagram

  • Title

1

Echo 10020012132

CRANKCASE KIT
(Superseded to Discontinued)

$

$

Not available

1A

Echo 10020012132

CRANKCASE KIT
(Superseded to Discontinued)

Note: See Ref No. 1, Crankcase set

$

$

Not available

1B

Echo 10020012132

CRANKCASE KIT
(Superseded to Discontinued)

Note: See Ref No. 1, Crankcase set

$

$

Not available

2

Echo 10021302830

SEAL, OIL

$6.49

$

In Stock, Qty 5

0

3

Echo 90070200035

RING, RETAINING - 35

$1.99

$

In Stock, Qty 15

0

4

Echo 90081046202

BEARING, BALL - 6202
(Superseded to 9403546202)

$9.99

$

Usually ships in 2-4 days

0

5

Echo 10021502830

PIN - LOCATING

$0.99

$

Usually ships in 2-4 days

0

6

Echo 10021402830

STUD

$1.49

$

Usually ships in 2-4 days

0

7

Echo 10010012430

CRANKSHAFT ASSY
(Superseded to Discontinued)

$

$

Not available

8

Echo 10024210230

GASKET, CRANKCASE
(Superseded to Discontinued)

$

$

Not available

9

Echo 90016205030

SCREW - 5X30

$0.99

$

In Stock, only 3 left!

0

10

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 10

0

12

Echo 90016205035

SCREW - 5X35

$1.49

$

In Stock, Qty 6

0

13

Echo 90032203014

KEY - 3X14
(Superseded to 90032303014)

$1.49

$

In Stock, only 2 left!

0

14

Echo 10001202831

BEARING, NEEDLE
(Superseded to Discontinued)

$

$

Not available

15

Echo 10001303730

PIN, PISTON

$8.49

$

Usually ships in 2-4 days

0

16

Echo 10001500230

RING, RETAINING

$0.99

$

Usually ships in 2-4 days

0

17

Echo 10001012430

PISTON
(Superseded to 10000012430)

$

$

Not available

18

Echo 10001112430

RING, PISTON
(Superseded to Discontinued)

$

$

Not available

19

Echo 10101012430

GASKET, CYLINDER
(Superseded to 10101012431)

$

$

Not available

20

Echo 10101112430

CYLINDER
(Superseded to Discontinued)

$

$

Not available

21

Echo 90060040006

WASHER - 4

$

$

Currently unavailable

22

Echo 90050040006

NUT - 6

$

$

Currently unavailable

23

Echo 14551003730

GASKET, EXHAUST
(Superseded to 14551003731)

$

$

Not available

24

Echo 14561203730

BAFFLE, MUFFLER
(Superseded to Discontinued)

$

$

Not available

25

Echo 14560503731

MUFFLER
(Superseded to Discontinued)

$

$

Not available

26

Echo 14571000230

LOCKNUT - 6
(Superseded to 90056000006)

$1.49

$

In Stock, Qty 20+

0

28

Echo 14580803730

LID, MUFFLER
(Superseded to Discontinued)

$

$

Not available

29

Echo 14564303730

SCREW - 5X8
(Superseded to Discontinued)

$

$

Not available

30

Echo 90061000005

LOCKWASHER - 5

$0.99

$

Usually ships in 2-4 days

0

31

Echo 14566612430

SPACER

$1.99

$

Usually ships in 2-4 days

0

32

Echo 10151410233

COVER, ENGINE

$76.99

$

Usually ships in 2-4 days

0

33

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

34

Echo 13001012430

GASKET, INTAKE

$1.49

$

In Stock, only 3 left!

0

36

Echo 13001510230

SCREW

$1.49

$

Usually ships in 2-4 days

0

37

Echo 13002112430

BOLT
(Superseded to Discontinued)

$

$

Not available

38

Echo 13001612430

GASKET, INTAKE
(Superseded to 13001612431)

$

$

Not available

39

Echo 13030612430

CASE, CARBURETOR
(Superseded to Discontinued)

$

$

Not available

40

Echo 12901003430

GROMMET
(Superseded to Discontinued)

$

$

Not available

41

Echo 12300012431

CARBURETOR
(Superseded to Discontinued)

$

$

Not available

42

Echo 17851600830

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

49

Echo 13003110230

WASHER

$0.99

$

Usually ships in 2-4 days

0

52

Echo 10021212130

SEAL, OIL

$5.99

$

In Stock, only 1 left!

0

53

Echo 90070200040

RING, RETAINING - 40

$1.99

$

Usually ships in 2-4 days

0

54

Echo 90081006203

BEARING, BALL - 6203

$11.99

$

Usually ships in 2-4 days

0

55

Echo 90016205040

SCREW - 5X40

$1.49

$

In Stock, Qty 9

0

57

Echo 10026673020

STUD
(Superseded to Discontinued)

$

$

Not available
