CS-750 EVL - Echo Chainsaw Air Cleaner, Ignition, Starter Parts Diagram

Chainsaw

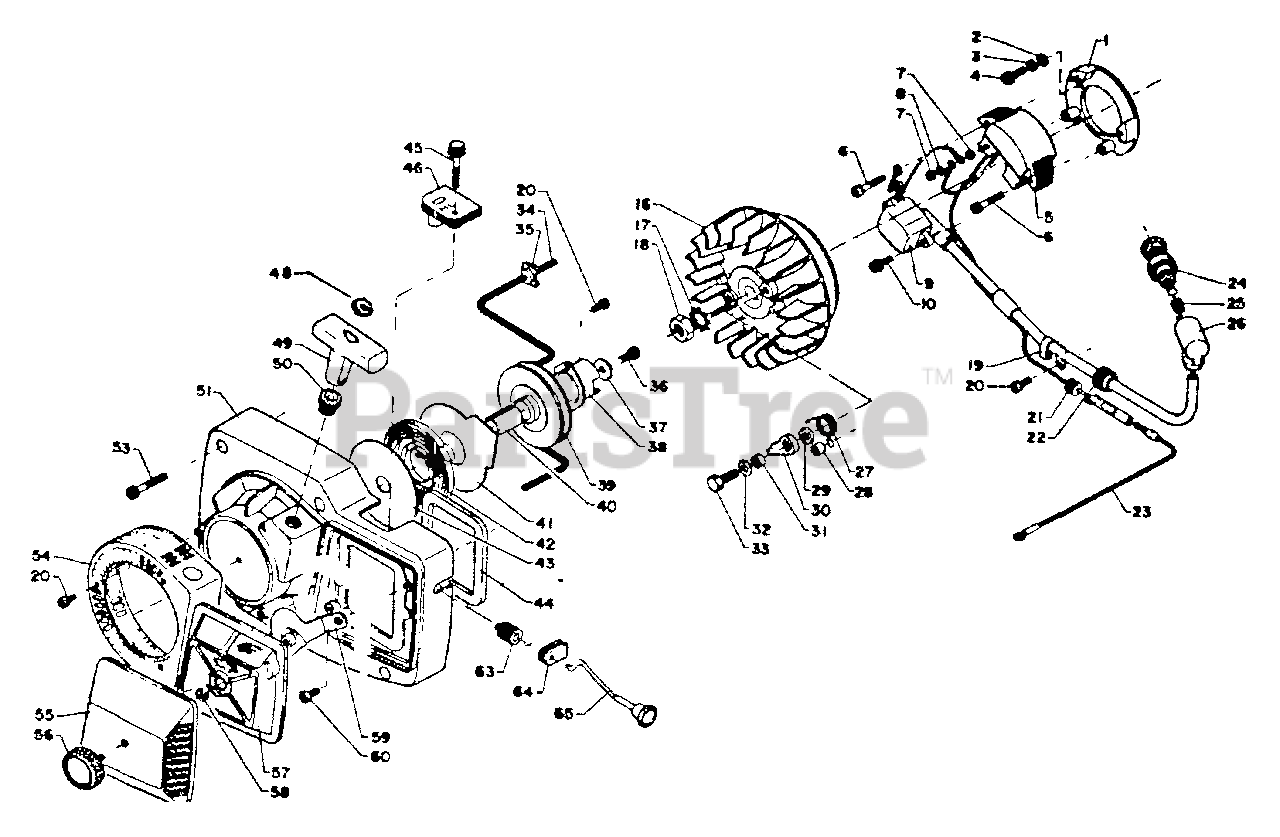

Air Cleaner, Ignition, Starter Parts Diagram

  • Title

Echo 15000212031

FLYWHEEL
(Superseded to Discontinued)

$

$

Not available

1

Echo 15062912031

PLATE, STATOR

$18.99

$

Usually ships in 2-4 days

0

2

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

3

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 9

0

4

Echo 90010505015

SCREW - 5X15

$1.49

$

Usually ships in 2-4 days

0

5

Echo 15060112030

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

6

Echo 90024104025

SCREW - 4X25
(Superseded to Discontinued)

$

$

Not available

7

$0.99

$

In Stock, only 2 left!

0

8

Echo 90060500003

LOCKWASHER - 3

$0.99

$

Usually ships in 2-4 days

0

9

Echo 15062612030

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

10

Echo 90024204014

SCREW - 4X14

$0.99

$

In Stock, Qty 15

0

16

Echo 15080110230

FLYWHEEL
(Superseded to Discontinued)

$

$

Not available

17

Echo 90061100010

WASHER - 10

$0.99

$

In Stock, only 2 left!

0

$1.49

$

In Stock, Qty 5

0

19

Echo 15911010230

CLAMP
(Superseded to Discontinued)

$

$

Not available

20

Echo 90024104010

SCREW - 4X10
(Superseded to 90024204010)

$0.99

$

In Stock, Qty 6

0

21

Echo 15411103430

GROMMET
(Superseded to 15411103431)

$1.99

$

In Stock, only 1 left!

0

22

$0.99

$

Usually ships in 2-4 days

0

23

Echo 15613103731

LEAD - GROUND

$5.49

$

Usually ships in 2-4 days

0

24

Echo 15901010630

SPARK PLUG -- BPM-7A
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0

25

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

26

Echo 15901203433

CAP, SPARK PLUG

$6.99

$

In Stock, Qty 11

0

27

Echo 17723402831

SPRING, RETURN

$2.49

$

In Stock, only 1 left!

0

$0.99

$

In Stock, Qty 6

0

29

$0.99

$

In Stock, only 1 left!

0

30

Echo 17721802830

PAWL, STARTER

$5.99

$

Usually ships in 2-4 days

0

31

$1.99

$

Usually ships in 2-4 days

0

32

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 16

0

33

Echo 90010006016

BOLT - 6X16

$0.99

$

In Stock, only 2 left!

0

34

Echo 17722602830

ROPE, STARTER
(Superseded to 17722607060)

$10.99

$

In Stock, Qty 9

0

35

Echo 17724602832

RETAINER, ROPE

$0.99

$

Usually ships in 2-4 days

0

36

Echo 90016205014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

37

Echo 17721402830

WASHER - 5

$0.99

$

In Stock, Qty 5

0

38

Echo 17724302833

CATCHER, PAWL

$10.99

$

Usually ships in 2-4 days

0

39

Echo 17721502834

REEL, ROPE
(Superseded to Discontinued)

$

$

Not available

40

$1.99

$

In Stock, only 3 left!

0

41

Echo 17724202832

PLATE, STARTER
(Superseded to Discontinued)

$

$

Not available

42

Echo 17722002834

SPRING, REWIND

$21.99

$

In Stock, Qty 8

0

43

Echo 17722102830

PLATE, STARTER

$5.99

$

In Stock, Qty 7

0

44

Echo 13032012430

GASKET, INTAKE
(Superseded to Discontinued)

$

$

Not available

45

Echo 17800703430

SCREW, IDLE ADJUST
(Superseded to Discontinued)

$

$

Not available

46

$3.49

$

Usually ships in 2-4 days

0

48

Echo 17722914330

RING, RETAINING

$1.49

$

In Stock, Qty 6

0

49

Echo 17722812330

GRIP, STARTER

$25.99

$

In Stock, Qty 13

0

50

Echo 17722710630

GUIDE, ROPE
(Superseded to 17722707060)

$17.99

$

Usually ships in 2-4 days

0

51

Echo 10150712431

CASE, STARTER

$109.99

$

Usually ships in 2-4 days

0

53

Echo 90016205030

SCREW - 5X30

$0.99

$

In Stock, Qty 10

0

54

Echo 10061602831

FILTER, DEBRIS
(Superseded to Discontinued)

$

$

Not available

55

Echo 13031312430

COVER, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

56

Echo 13040610230

THUMBSCREW
(Superseded to Discontinued)

$

$

Not available

57

Echo 13031012430

FILTER, AIR
(Superseded to Discontinued)

$

$

Not available

58

Echo 90070000004

RING, RETAINING - 4

$0.99

$

In Stock, Qty 20+

0

59

Echo 13040512430

BRACKET, AIR CLEANER
(Superseded to Discontinued)

$

$

Not available

60

Echo 90022005010

SCREW - 5X10

$0.99

$

In Stock, Qty 7

0

63

$1.99

$

Usually ships in 2-4 days

0

64

$1.49

$

Usually ships in 2-4 days

0

65

Echo 17851012430

ROD, CHOKE

$3.49

$

Usually ships in 2-4 days

0
