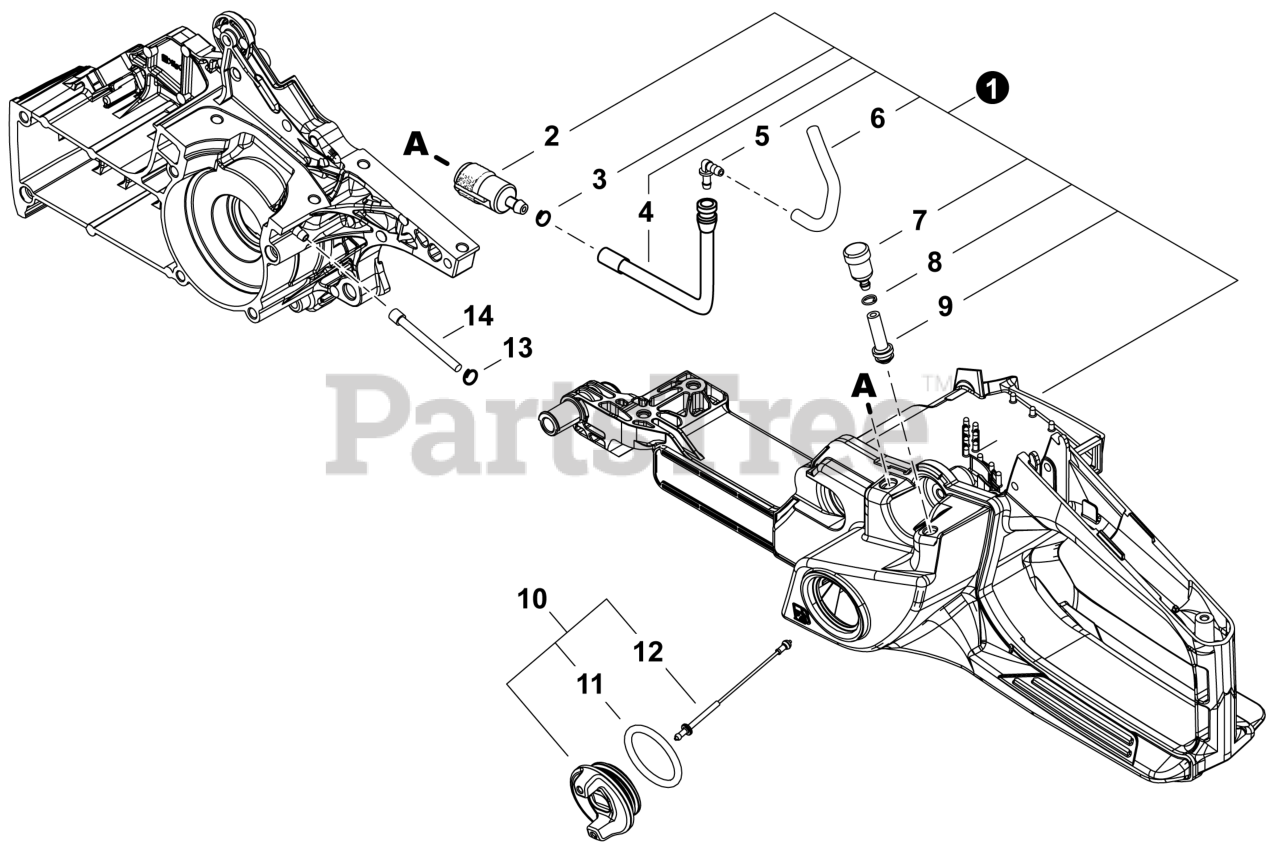

CS-7310 PW - Echo Chainsaw (SN: C85415001001 - C85415999999) Fuel System, Rear Handle Parts Diagram

Chainsaw

Fuel System, Rear Handle Parts Diagram

  • Title

1

Echo P100009381

HANDLE ASSY - REAR

Note: Includes items 2-9

$83.99

$

In Stock, only 1 left!

0

2

Echo A369000460

FILTER, FUEL

$9.49

$

In Stock, Qty 20+

0

3

Echo V490000500

CLIP 6

$0.99

$

In Stock, Qty 20+

0

4

Echo V470001991

PIPE, FUEL

$6.99

$

In Stock, only 1 left!

0

5

Echo V186000530

CONNECTOR, PIPE

$1.49

$

In Stock, Qty 16

0

6

Echo V471005680

PIPE, FUEL 3.5x6x75 BLACK

$3.99

$

In Stock, only 1 left!

0

7

Echo 13130056431

VENT ASSY

$7.49

$

In Stock, Qty 11

0

8

Echo V490001230

CLIP 6.5 MM

$0.99

$

In Stock, Qty 20+

0

9

Echo V470002410

PIPE, FUEL VENT

$5.49

$

In Stock, only 1 left!

0

10

Echo P100009440

CAP ASSY, FUEL

Note: Includes items 11-12

$9.49

$

Usually ships in 2-4 days

0

11

Echo V581000600

O-RING 29

$2.49

$

In Stock, only 2 left!

0

12

Echo A365000150

CONNECTOR, CAP

$4.49

$

Usually ships in 2-4 days

0

13

Echo V490000500

CLIP 6

$0.99

$

In Stock, Qty 20+

0

14

Echo V470002420

PIPE, FUEL 3x6(8)x130 BLACK

$3.49

$

Usually ships in 2-4 days

0
