CS-702 VL - Echo Chainsaw Chain Brake Models CS-702VL And CS-602VL Parts Diagram

Chainsaw

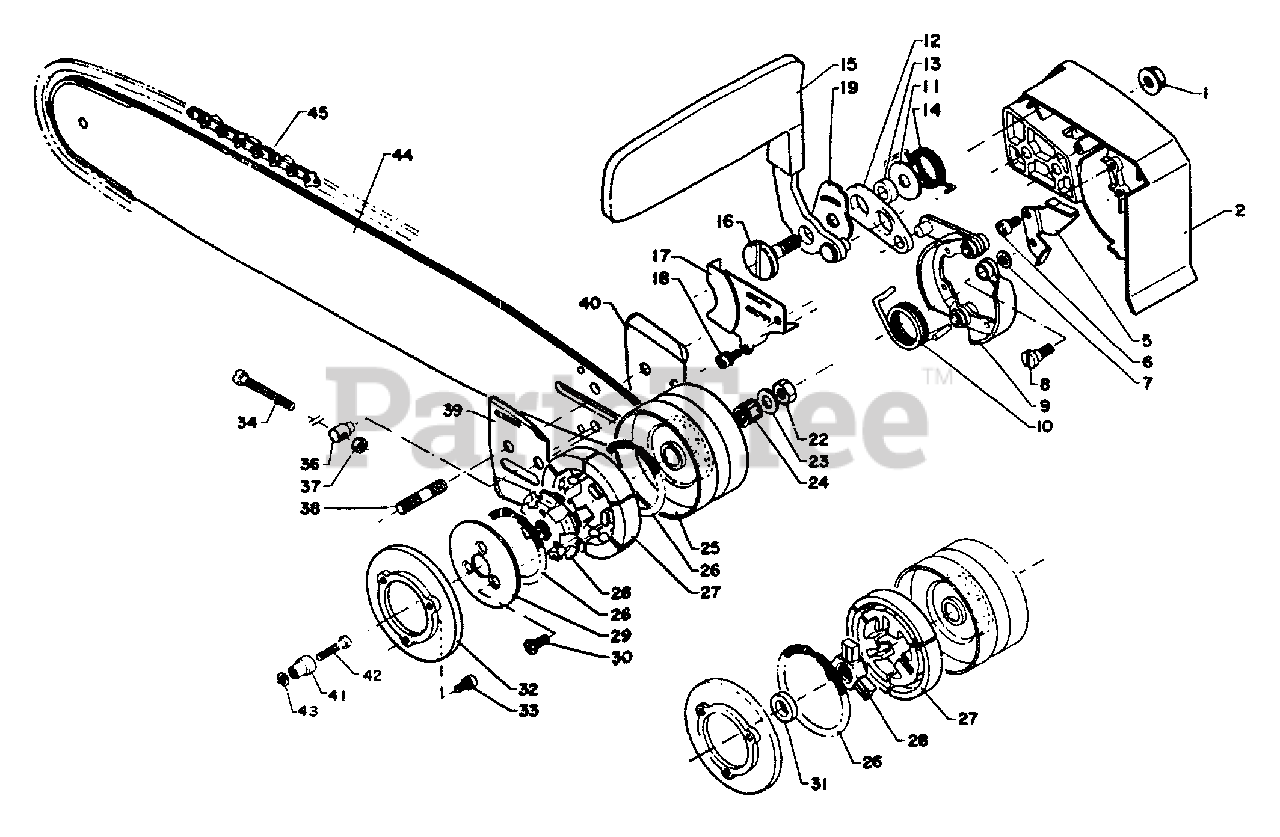

Chain Brake Models CS-702VL And CS-602VL Parts Diagram

  • Title

1

Echo 43301912330

NUT - FLANGE
(Superseded to V265000200)

$1.99

$

In Stock, Qty 20+

0

Echo 43310010232

CHAIN BRAKE ASSY
(Superseded to Discontinued)

Note: Includes ITEMS 5-19

$

$

Not available

2

Echo 43311010230

COVER, GUIDE BAR
(Superseded to Discontinued)

$

$

Not available

5

Echo 43313110230

GUIDE, BRAKE SHOE
(Superseded to Discontinued)

$

$

Not available

6

Echo 90022005008

SCREW - 5X8

$0.99

$

In Stock, Qty 12

0

7

Echo 90060040006

WASHER - 4

$

$

Currently unavailable

8

Echo 43313003930

SCREW

$4.49

$

Usually ships in 2-4 days

0

9

Echo 43310110230

SHOE, BRAKE
(Superseded to Discontinued)

$

$

Not available

10

Echo 43312210230

SPRING, BRAKE
(Superseded to Discontinued)

$

$

Not available

11

Echo 43311503930

SPACER
(Superseded to Discontinued)

$

$

Not available

12

Echo 43311743930

CONNECTOR

$

$

Currently unavailable

13

Echo 43311603930

SPACER
(Superseded to Discontinued)

$

$

Not available

14

Echo 43311410230

SPRING, RETURN
(Superseded to Discontinued)

$

$

Not available

15

Echo 43310510232

HANDLE, BRAKE
(Superseded to Discontinued)

$

$

Not available

16

Echo 43311303930

SCREW

$5.49

$

Usually ships in 2-4 days

0

17

Echo 43331010231

SEAL, DUST
(Superseded to Discontinued)

$

$

Not available

18

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 10

0

19

Echo 43313510230

WASHER
(Superseded to Discontinued)

$

$

Not available

22

Echo 10012903430

LOCKNUT
(Superseded to 61032003830)

$4.49

$

In Stock, only 4 left!

0

23

Echo 17521410130

WASHER
(Superseded to 17504403430)

$6.99

$

Usually ships in 2-4 days

0

24

Echo 10001212330

BEARING, NEEDLE
(Superseded to 10001212331)

$10.99

$

In Stock, Qty 7

0

25

Echo 17520510230

DRUM, CLUTCH
(Superseded to Discontinued)

$

$

Not available

Echo 17500010230

CLUTCH ASSY
(Superseded to 17500010231)

Note: Used on model CS-702VL only.;For model CS-702VL order clutch assembly P/N 17500010230 and for model CS-602VL order clutch assembly P/N 17500003430.

$

$

Not available

Echo 17500003430

CLUTCH ASSY
(Superseded to 17500016130)

Note: Used on model CS-602VL only.

$

$

Not available

26

Echo 17501800430

SPRING, CLUTCH
(Superseded to 17501810231)

Note: Used on model CS-702VL only.

$

$

Not available

26

Echo 17501802831

SPRING, CLUTCH
(Superseded to Discontinued)

Note: Used on model CS-602VL only.

$

$

Not available

27

Echo 17501700430

SHOE, CLUTCH

Note: Used on model CS-702VL only.

$11.99

$

In Stock, only 1 left!

0

27

Echo 17501702830

SHOE, CLUTCH
(Superseded to Discontinued)

Note: Used on model CS-602VL only.

$

$

Not available

28

Echo 17501610230

HUB, CLUTCH
(Superseded to Discontinued)

Note: Used on model CS-702VL only.

$

$

Not available

28

Echo 17501603430

HUB, CLUTCH
(Superseded to 17500016131)

Note: Used on model CS-602VL only.

$

$

Not available

29

Echo 17501910231

PLATE, CLUTCH

Note: Used on model CS-702VL only.

$9.99

$

Usually ships in 2-4 days

0

30

Echo 90021405016

SCREW - 5X16

Note: Used on model CS-702VL only.

$0.99

$

In Stock, only 3 left!

0

31

Echo 17501410330

WASHER, CLUTCH
(Superseded to Discontinued)

Note: Used on model CS-602VL only.

$

$

Not available

32

Echo 17531010230

SEAL, DUST
(Superseded to Discontinued)

$

$

Not available

33

Echo 90024144010

SCREW - 4X10

$

$

Currently unavailable

34

Echo 43301602830

SCREW, TENSIONER

$3.99

$

In Stock, only 3 left!

0

36

Echo 43301402830

TENSIONER, CHAIN

$4.99

$

In Stock, Qty 20+

0

37

Echo 43302202830

LOCKNUT - 5
(Superseded to 90056200005)

$1.49

$

Usually ships in 2-4 days

0

38

Echo 43301100330

STUD, GUIDE BAR
(Superseded to Discontinued)

Note: S/N 001001 - 0052304

$

$

Not available

38

Echo 43301112330

STUD, GUIDE BAR

Note: S/N 0052305 & up

$2.49

$

In Stock, only 2 left!

0

39

Echo 43301302830

PLATE, GUIDE - INNER
(Superseded to 43301312332)

$6.49

$

In Stock, only 1 left!

0

40

Echo 43301202830

PLATE, GUIDE - OUTER
(Superseded to 43301212332)

$6.49

$

In Stock, only 1 left!

0

41

Echo 43302611030

CATCHER, CHAIN
(Superseded to 43300012830)

$

$

Not available

42

Echo 90022045025

SCREW - 5X25

$

$

Currently unavailable

43

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

44

------------------

GUIDE BAR

Note: See Chainsaw Accessories

$

$

Not available

45

------------------

CHAIN, SAW

Note: See Chainsaw Accessories

$

$

Not available
