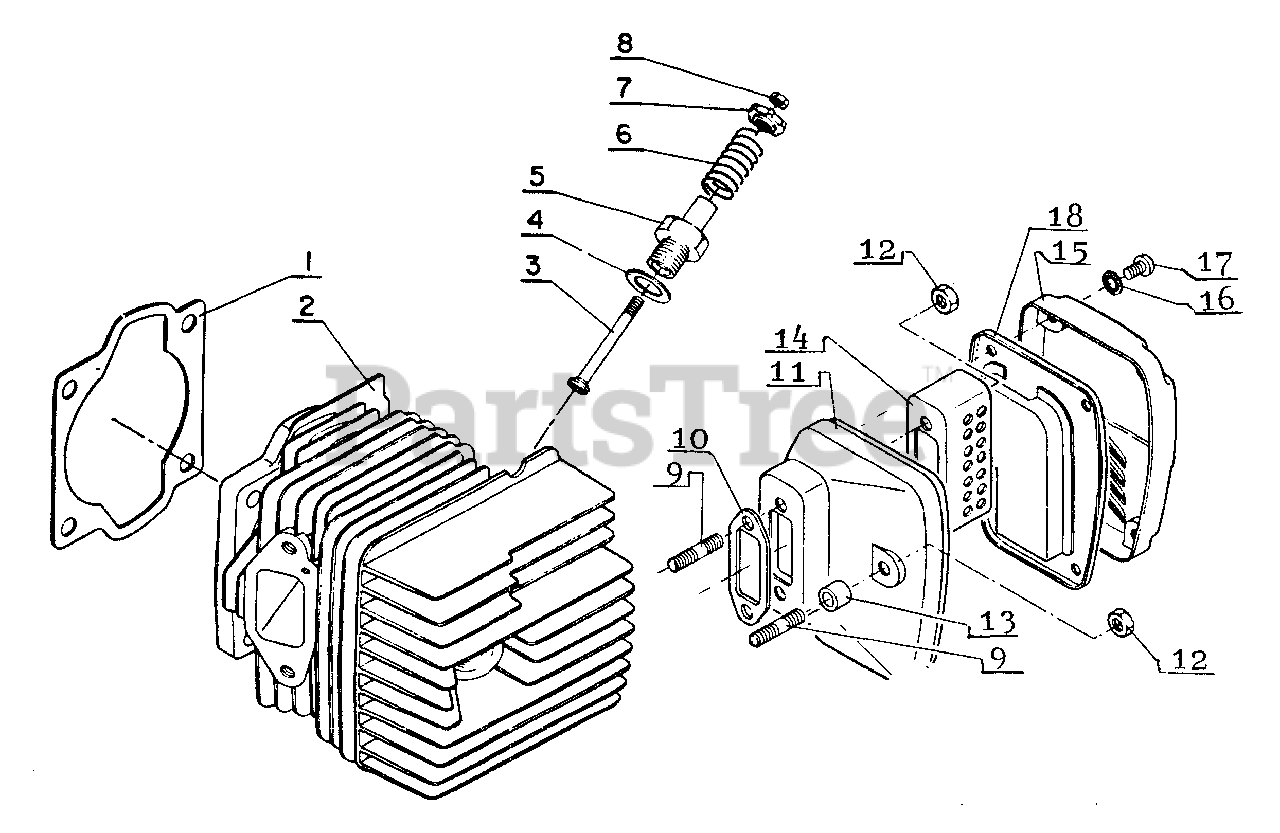

CS-701 SVL - Echo Chainsaw Cylinder, Muffler Parts Diagram

Chainsaw

Cylinder, Muffler Parts Diagram

  • Title

1

Echo 10101002831

GASKET, CYLINDER
(Superseded to Discontinued)

$

$

Not available

2

Echo 10101103733

CYLINDER
(Superseded to Discontinued)

Note: Exclusive for CS-701SVL

$

$

Not available

2

Echo 10101102835

CYLINDER
(Superseded to Discontinued)

Note: Exclusive for CS-601S, CS-601SVL

$

$

Not available

3

Echo 10111002831

VALVE, DECOMPRESSION

$15.99

$

Usually ships in 2-4 days

0

4

Echo 10111202830

GASKET

$1.99

$

In Stock, only 1 left!

0

5

Echo 10111102831

SEAT, VALVE

$25.99

$

Usually ships in 2-4 days

0

6

Echo 10111302830

SPRING, VALVE

$1.49

$

Usually ships in 2-4 days

0

7

Echo 10111402831

WASHER

$2.49

$

Usually ships in 2-4 days

0

8

Echo 90050000004

NUT - 4

$0.99

$

In Stock, Qty 20+

0

9

Echo 10021402830

STUD

$1.49

$

Usually ships in 2-4 days

0

10

Echo 14551003730

GASKET, EXHAUST
(Superseded to 14551003731)

$

$

Not available

11

Echo 14560503731

MUFFLER
(Superseded to Discontinued)

$

$

Not available

12

Echo 14571000230

LOCKNUT - 6
(Superseded to 90056000006)

$1.49

$

In Stock, Qty 20+

0

13

Echo 14566603730

SPACER

$1.99

$

Usually ships in 2-4 days

0

14

Echo 14561203730

BAFFLE, MUFFLER
(Superseded to Discontinued)

$

$

Not available

15

Echo 14561303730

LID, MUFFLER
(Superseded to 14580803730)

$

$

Not available

16

Echo 90061000005

LOCKWASHER - 5

$0.99

$

Usually ships in 2-4 days

0

17

Echo 14564303730

SCREW - 5X8
(Superseded to Discontinued)

$

$

Not available

18

Echo 14561403730

PLATE
(Superseded to Discontinued)

$

$

Not available
