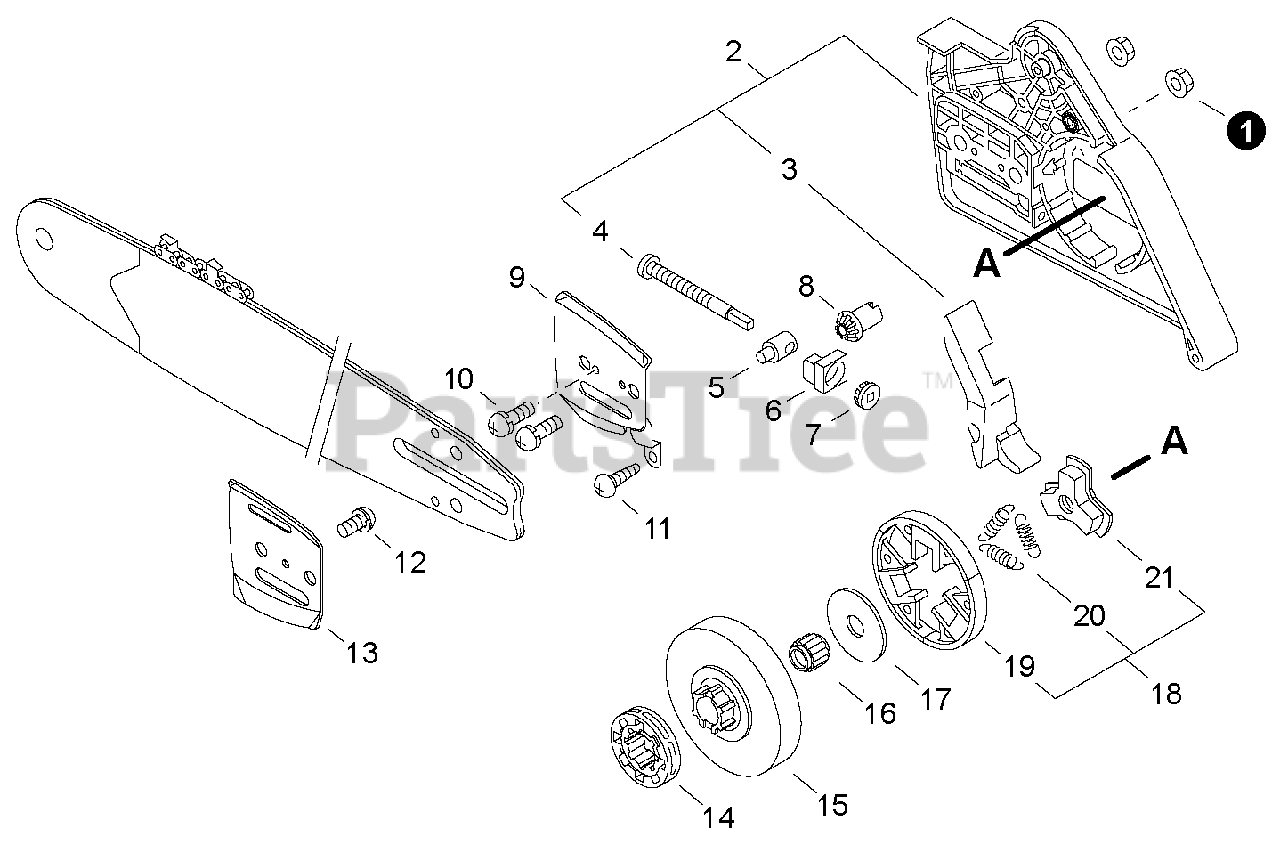

CS-680 S - Echo Chainsaw (SN: C47620001001 - C47620999999) Sprocket Guard, Clutch Parts Diagram

Chainsaw

Sprocket Guard, Clutch Parts Diagram

  • Title

1

Echo 43301912330

NUT - 8X1.25 -- FLANGE
(Superseded to V265000200)

$1.99

$

In Stock, Qty 20+

0

2

Echo P021002286

SPROCKET GUARD KIT

$26.99

$

In Stock, only 1 left!

0

3

Echo C302000000

CUSHION

$5.49

$

Usually ships in 2-4 days

0

4

Echo V203000110

SCREW, TENSIONER

$5.99

$

In Stock, Qty 20+

0

5

Echo C309000030

TENSIONER, CHAIN

$4.49

$

In Stock, Qty 20+

0

6

Echo V355000270

COLLAR - 8
(Superseded to V355000800)

$1.49

$

In Stock, Qty 20+

0

7

Echo V651000011

GEAR - BEVEL

$7.99

$

In Stock, Qty 20+

0

8

Echo V651000001

GEAR - PINION

$7.99

$

In Stock, Qty 20+

0

9

Echo C305000040

PLATE, OUTER GUIDE

$6.99

$

In Stock, Qty 11

0

10

Echo 90024103006

SCREW - 3X6

$0.99

$

In Stock, only 2 left!

0

11

Echo 90025304010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

12

Echo 90024104008

SCREW - 4X8

$0.99

$

In Stock, Qty 11

0

13

Echo 43301330830

PLATE, GUIDE - INNER

$5.49

$

In Stock, only 4 left!

0

14

Echo 17503314731

SPROCKET, RIM

$14.99

$

Usually ships in 2-4 days

0

15

Echo 17510532431

DRUM, CLUTCH

$40.99

$

In Stock, only 4 left!

0

16

Echo 17501232430

BEARING, NEEDLE

$13.99

$

In Stock, only 1 left!

0

17

Echo A551000051

PLATE, CLUTCH

$9.99

$

Usually ships in 2-4 days

0

18

Echo A056000050

CLUTCH ASSY

$68.99

$

Usually ships in 2-4 days

0

19

Echo P021007790

CLUTCH SHOE SET

$41.99

$

Usually ships in 2-4 days

0

20

Echo V451000430

SPRING, CLUTCH

$3.49

$

In Stock, only 3 left!

0

21

Echo A552000040

HUB, CLUTCH

$16.99

$

Usually ships in 2-4 days

0
