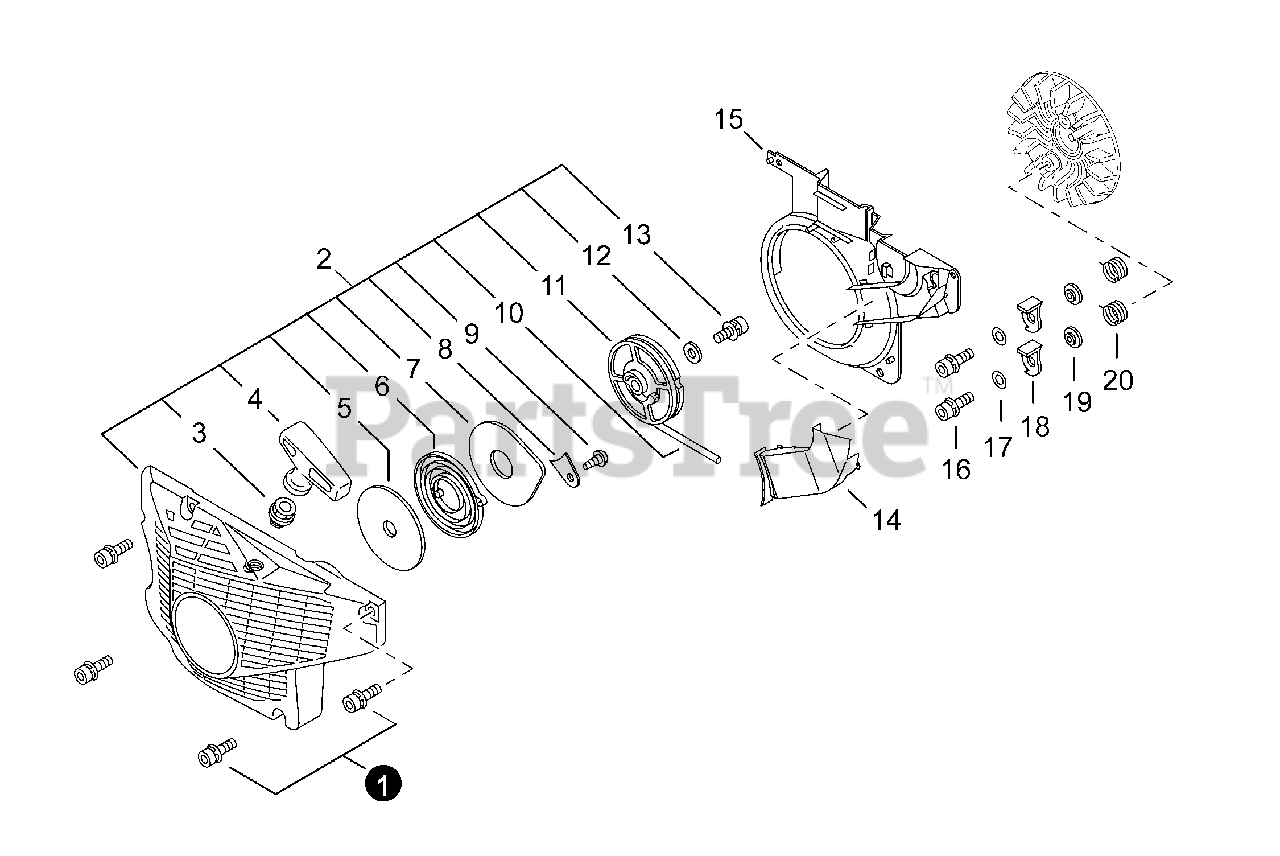

CS-680 - Echo Chainsaw (SN: C68615001001 - C68615999999) Recoil Starter Parts Diagram

Chainsaw

Recoil Starter Parts Diagram

  • Title

1

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

2

Echo P021002901

STARTER ASSY
(Superseded to P021002902)

Note: Includes Items 3-13

$113.99

$

Usually ships in 2-4 days

0

3

Echo 17722710630

GUIDE, ROPE
(Superseded to 17722707060)

$17.99

$

Usually ships in 2-4 days

0

4

Echo 17722830830

GRIP, STARTER
(Superseded to 17722830832)

$5.99

$

Usually ships in 2-4 days

0

5

Echo 17722102830

PLATE, STARTER

$5.99

$

In Stock, Qty 8

0

6

Echo 17722002834

SPRING, RECOIL

$21.99

$

In Stock, Qty 9

0

7

Echo 17722107060

PLATE, STARTER

$10.99

$

In Stock, only 1 left!

0

8

Echo 43314415130

PLATE, EYE

$1.99

$

Usually ships in 2-4 days

0

9

Echo 90025304008

SCREW 4×8

$0.99

$

In Stock, only 4 left!

0

10

Echo 17722607060

ROPE, STARTER 4.0×950

$10.99

$

In Stock, Qty 9

0

11

Echo 17721532330

REEL, ROPE

$8.99

$

Usually ships in 2-4 days

0

12

Echo 90060300005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

13

Echo 90016205014

BOLT 5×14

$1.49

$

In Stock, Qty 20+

0

14

Echo A161000020

DUCT, AIR

$6.49

$

Usually ships in 2-4 days

0

15

Echo A172000850

COVER, FAN

$10.99

$

Usually ships in 2-4 days

0

16

Echo V203000150

BOLT 5×18

$0.99

$

Usually ships in 2-4 days

0

17

Echo 90060300005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

18

Echo 17721832631

PAWL, STARTER
(Superseded to 17721832632)

$5.49

$

Usually ships in 2-4 days

0

19

Echo V353000192

COLLAR 5

$3.49

$

Usually ships in 2-4 days

0

20

Echo 17723419832

SPRING, RETURN

$3.49

$

In Stock, Qty 6

0
