CS-680 - Echo Chainsaw (SN: C68615001001 - C68615999999) Fuel System Parts Diagram

Chainsaw

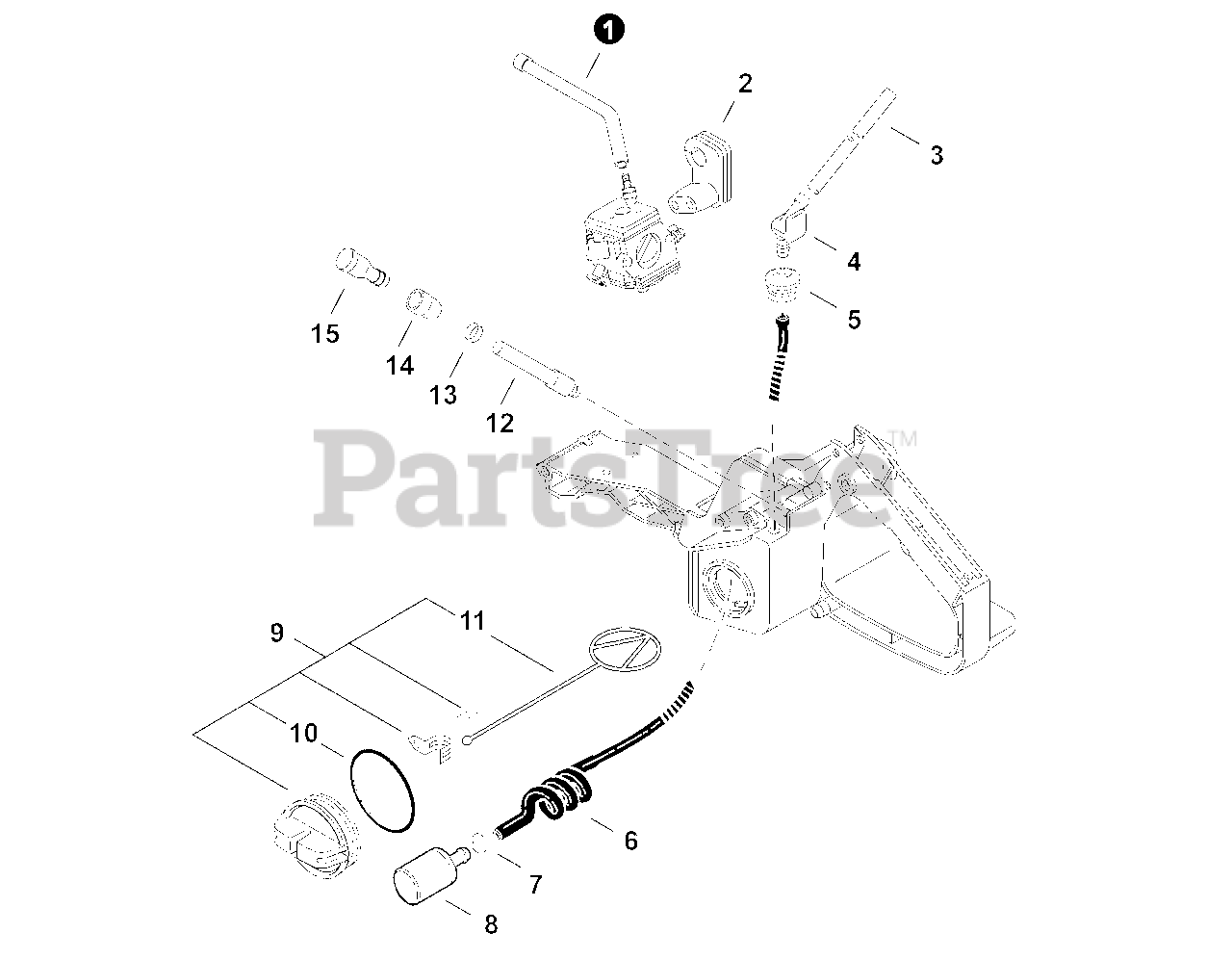

Fuel System Parts Diagram

  • Title
1

Echo 13011019830

PIPE, IMPULSE
(Superseded to 13011019831)

$2.99

$

Usually ships in 2-4 days

0

2

Echo V131000010

GROMMET, NEEDLE

$5.49

$

Usually ships in 2-4 days

0

3

Echo V471003770

PIPE, FUEL 3×6×110
(Superseded to V471003771)

$3.99

$

Usually ships in 2-4 days

0

4

Echo 13201133031

CONNECTOR, PIPE

$4.49

$

In Stock, only 1 left!

0

5

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.49

$

In Stock, Qty 9

0

6

Echo 13201030830

PIPE, FUEL
(Superseded to 13201030831)

$5.99

$

In Stock, only 1 left!

0

7

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

8

Echo A369000460

FILTER, FUEL

$9.49

$

In Stock, Qty 20+

0

9

Echo P021037420

CAP ASSY, FUEL

Note: Includes Items 10-11

$3.49

$

In Stock, Qty 16

0

10

Echo V581000600

O-RING 29

$2.49

$

In Stock, only 2 left!

0

11

Echo 13105119830

CONNECTOR, CAP L= 60 MM
(Superseded to A365000050)

$2.49

$

In Stock, Qty 20+

0

12

Echo 13131232430

PIPE, VENT

$13.99

$

Usually ships in 2-4 days

0

13

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

14

Echo 13132840630

HOLDER, VENT

$6.49

$

In Stock, only 1 left!

0

15

Echo 13130056431

VENT ASSY

$7.49

$

In Stock, Qty 14

0
