CS-680 - Echo Chainsaw (SN: C68615001001 - C68615999999) Engine Parts Diagram

Chainsaw

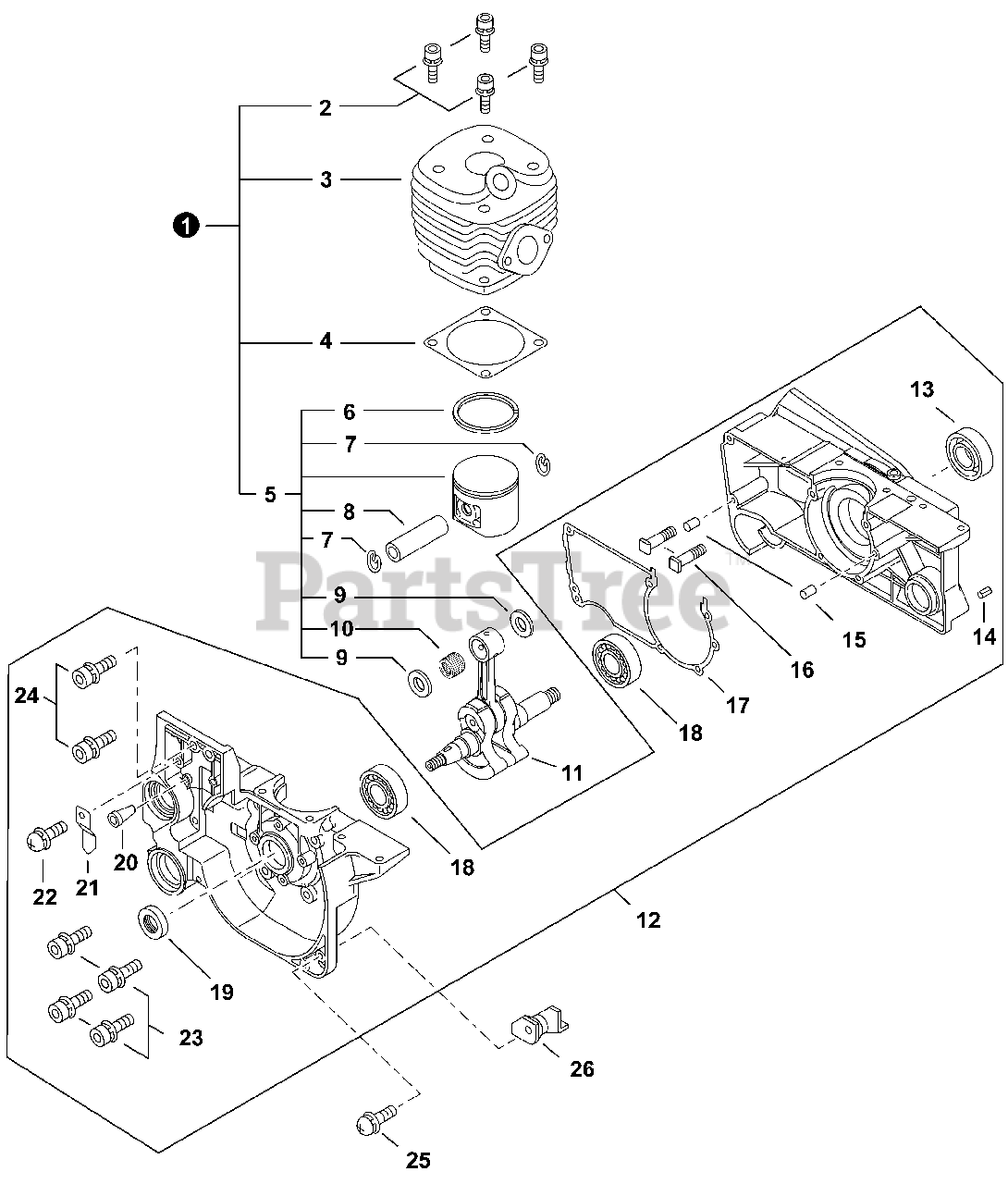

Engine Parts Diagram

  • Title
1

Echo P021039000

REPAIR KIT, ENGINE

Note: Includes Items 2-10

$169.99

$

Usually ships in 2-4 days

0

2

Echo 90016205025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

0

3

Echo A130002000

CYLINDER

$134.99

$

Usually ships in 2-4 days

0

4

Echo 10101032431

GASKET, CYLINDER

$2.49

$

In Stock, only 1 left!

0

5

Echo P021015290

PISTON KIT

Note: Includes Items 6-10

$77.99

$

In Stock, only 1 left!

0

6

Echo A101000150

RING, PISTON

$11.99

$

In Stock, only 2 left!

0

7

Echo V580000000

RING, SNAP

$0.99

$

Usually ships in 2-4 days

0

8

Echo V610000000

PIN, PISTON 12

$3.99

$

Usually ships in 2-4 days

0

9

Echo 10001418430

WASHER, THRUST

$3.49

$

In Stock, only 2 left!

0

10

Echo 10001232430

BEARING, NEEDLE

$13.99

$

Usually ships in 2-4 days

0

11

Echo A011000250

CRANKSHAFT ASSY

$195.99

$

Usually ships in 2-4 days

0

12

Echo P100003120

CRANKCASE KIT

Note: Includes Items 13-24

$273.99

$

Usually ships in 2-4 days

0

13

Echo 10021232430

SEAL, OIL

$5.99

$

Usually ships in 2-4 days

0

14

Echo 90034250025

PIN, SPRING Ø5×25 MM

$1.49

$

In Stock, Qty 10

0

15

Echo 90033050100

PIN, LOCATING 5×10

$0.99

$

Usually ships in 2-4 days

0

16

Echo 43301119831

STUD, GUIDE BAR 8

$2.99

$

In Stock, only 2 left!

0

17

Echo 10024232430

GASKET, CRANKCASE

$5.99

$

Usually ships in 2-4 days

0

18

Echo 90081036202

BEARING, BALL 6202

$9.99

$

In Stock, Qty 6

0

19

Echo 10021219830

SEAL, OIL

$5.49

$

In Stock, only 1 left!

0

20

Echo 43611413930

VENT ASSY

$6.49

$

Usually ships in 2-4 days

0

21

Echo V150000570

PLATE, EYE

$2.49

$

In Stock, only 1 left!

0

22

Echo 90024204008

SCREW 4×8

$0.99

$

In Stock, Qty 8

0

23

Echo 90016205035

BOLT M5×35

$1.49

$

In Stock, Qty 6

0

24

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

25

Echo 90023805014

SCREW 5×14

$0.99

$

In Stock, Qty 12

0

26

Echo V401000060

CUSHION 5

$12.99

$

Usually ships in 2-4 days

0
