CS-680 - Echo Chainsaw (SN: C68615001001 - C68615999999) Carburetor Parts Diagram

Chainsaw

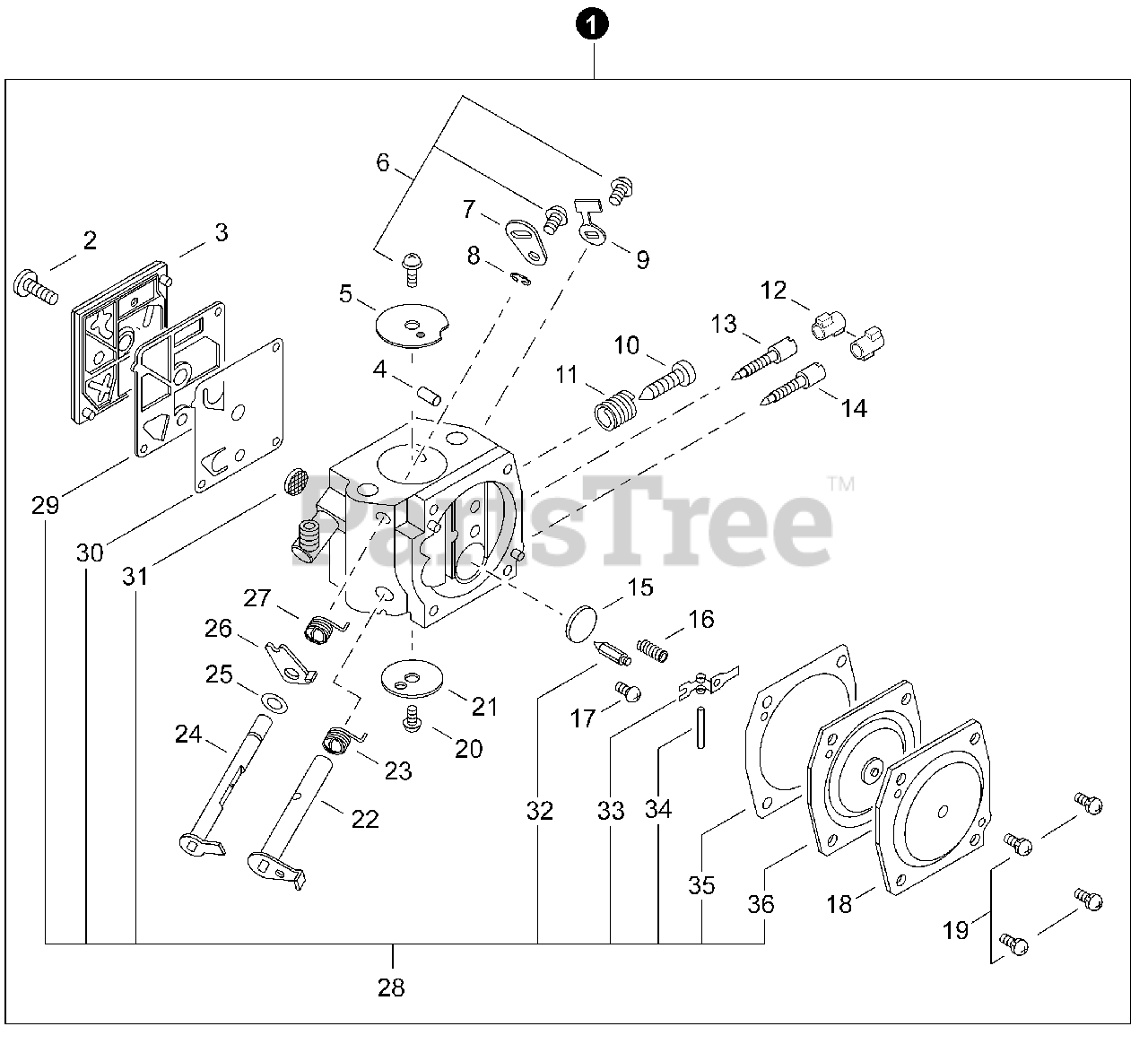

Carburetor Parts Diagram

  • Title
1

Echo A021001802

CARBURETOR - HDA-271A

Note: Includes Items 2-36

$113.99

$

Usually ships in 2-4 days

0

$0.99

$

Usually ships in 2-4 days

0

3

Echo 12312419830

COVER, FUEL PUMP

$7.99

$

Usually ships in 2-4 days

0

4

Echo 12317815030

PLUG, FRICTION

$4.99

$

Usually ships in 2-4 days

0

5

Echo 12313232430

VALVE, CHOKE

$1.99

$

Usually ships in 2-4 days

0

$1.49

$

In Stock, Qty 13

0

7

Echo P003004060

LEVER, CHOKE

$1.49

$

Usually ships in 2-4 days

0

8

$0.99

$

In Stock, only 2 left!

0

9

Echo 12315630830

STOP, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

10

Echo 12313419730

SCREW, IDLE ADJUST

$2.49

$

In Stock, Qty 5

0

11

$0.99

$

Usually ships in 2-4 days

0

12

Echo P003000010

CAP, LIMITER

$0.99

$

In Stock, Qty 20+

0

13

Echo P003002310

NEEDLE, HIGH SPEED

$3.49

$

Usually ships in 2-4 days

0

14

Echo 12311802261

NEEDLE, MIXTURE

$3.99

$

In Stock, Qty 11

0

15

Echo 12314610631

PLUG, WELCH

$1.49

$

Usually ships in 2-4 days

0

16

$2.49

$

Usually ships in 2-4 days

0

17

Echo 12313903930

SCREW, METERING LEVER PIN

$1.49

$

In Stock, only 1 left!

0

18

Echo 12314217330

COVER, METERING DIAPHRAGM

$3.99

$

Usually ships in 2-4 days

0

19

$1.99

$

Usually ships in 2-4 days

0

20

$0.99

$

In Stock, only 2 left!

0

21

Echo 12313216130

VALVE, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

22

Echo P003000550

SHAFT ASSY, THROTTLE

$8.99

$

Usually ships in 2-4 days

0

23

Echo P003000560

SPRING, THROTTLE RETURN

$0.99

$

Usually ships in 2-4 days

0

24

Echo P003000600

SHAFT ASSY, CHOKE

$7.99

$

Usually ships in 2-4 days

0

25

$0.99

$

In Stock, only 1 left!

0

26

Echo P003000620

LEVER, FAST IDLE

$1.49

$

Usually ships in 2-4 days

0

27

Echo P003000610

SPRING, CHOKE RETURN

$1.49

$

Usually ships in 2-4 days

0

28

Echo P033000000

REPAIR KIT

Note: Includes Items 29-36

$13.99

$

Usually ships in 2-4 days

0

29

Echo 12312512330

GASKET, FUEL PUMP

$2.99

$

In Stock, only 1 left!

0

30

Echo 12311212330

DIAPHRAGM, FUEL PUMP

$6.49

$

Usually ships in 2-4 days

0

31

Echo 12312610631

SCREEN, FUEL INLET

$1.49

$

In Stock, Qty 19

0

32

Echo 12313719830

VALVE, INLET NEEDLE

$18.99

$

Usually ships in 2-4 days

0

33

Echo 12312318330

LEVER, METERING

$4.49

$

Usually ships in 2-4 days

0

34

Echo 12313803930

PIN, METERING LEVER

$5.99

$

In Stock, only 4 left!

0

35

Echo 12314016131

GASKET, METERING DIAPHRAGM

$14.99

$

Usually ships in 2-4 days

0

36

Echo P003004920

DIAPHRAGM, METERING
(Superseded to 12314116131)

$13.99

$

Usually ships in 2-4 days

0
