CS-680 - Echo Chainsaw (SN: C03203001001 - C03203999999) Chain Brake Asssembly Parts Diagram

Chainsaw

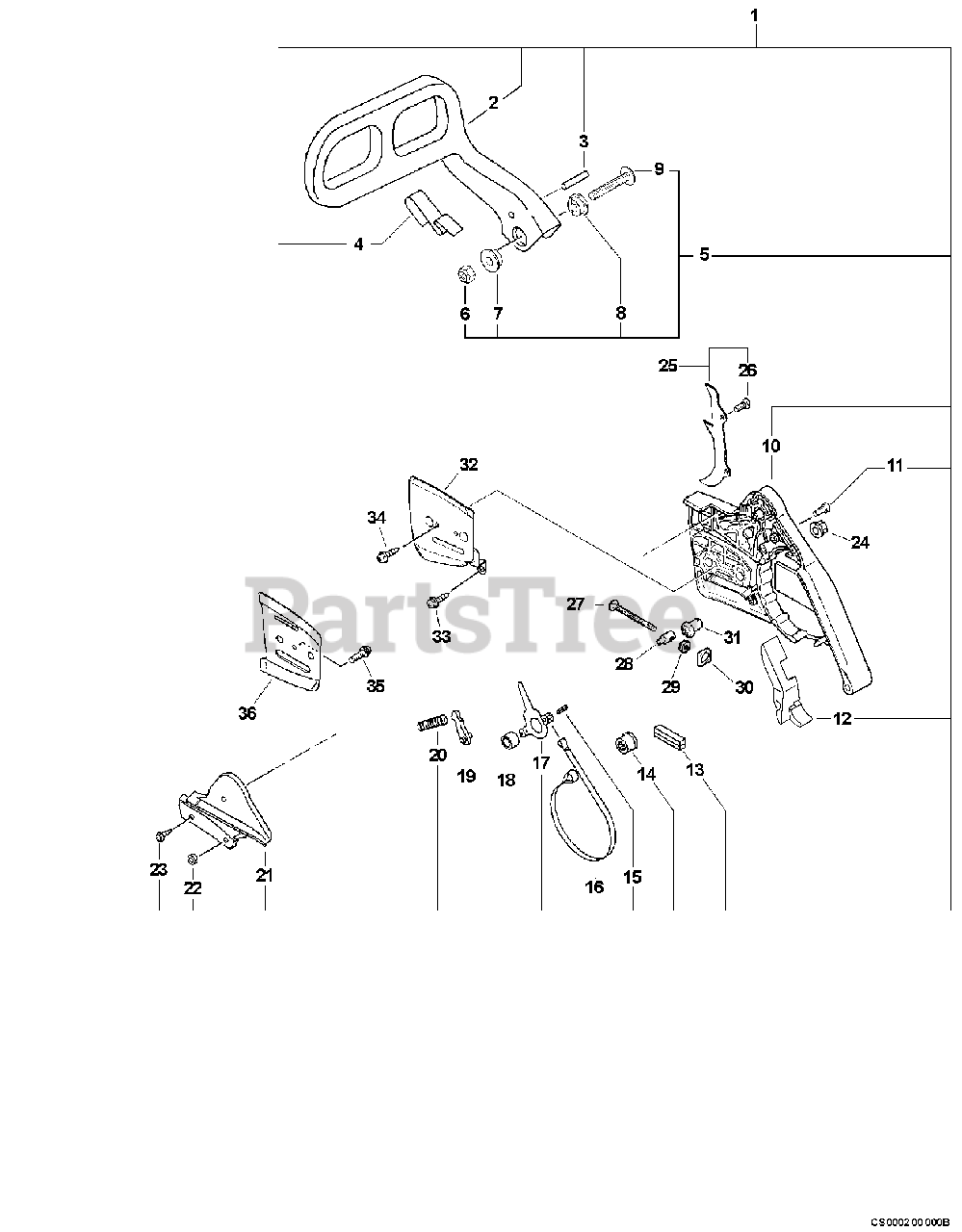

Chain Brake Asssembly Parts Diagram

  • Title
1

Echo P021010642

CHAIN BRAKE ASSY
(Superseded to P021044520)

Note: INCLUDES ITEMS 2-23

$103.99

$

In Stock, only 1 left!

0

2

Echo 43310538131

LEVER, BRAKE

Note: Includes ITEM 3

$39.99

$

Usually ships in 2-4 days

0

3

Echo 90033035260

PIN - 3.5X26

$0.99

$

In Stock, Qty 7

0

4

Echo 43311438131

SPRING, RETURN

$6.99

$

Usually ships in 2-4 days

0

5

Echo 43311337539

MOUNTING KIT

Note: Includes ITEMS 6-9

$5.49

$

In Stock, Qty 14

0

6

$1.49

$

In Stock, only 2 left!

0

7

$2.99

$

In Stock, Qty 10

0

8

Echo 43316739730

COLLAR - 5

$2.99

$

In Stock, only 1 left!

0

9

Echo 90020905035

SCREW - 5X35

$1.49

$

In Stock, only 4 left!

0

10

Echo P021002286

SPROCKET GUARD KIT

$26.99

$

Usually ships in 2-4 days

0

11

Echo 90022003018

SCREW - 3X18

$0.99

$

In Stock, only 4 left!

0

12

Echo C302000000

CUSHION

$5.49

$

Usually ships in 2-4 days

0

$1.49

$

In Stock, Qty 7

0

14

Echo 43314235430

ADJUSTER, BRAKE BAND

$3.49

$

In Stock, only 1 left!

0

15

Echo 90033040088

PIN - SPRING -- 4X8

$1.49

$

In Stock, only 2 left!

0

16

Echo 43312338131

BAND, BRAKE

$9.99

$

In Stock, only 1 left!

0

17

Echo 43320835431

LEVER, BRAKE

$19.99

$

Usually ships in 2-4 days

0

18

Echo 43311635430

SPACER - 8

$5.49

$

In Stock, only 2 left!

0

19

Echo 43320935430

STOPPER, BRAKE

$4.99

$

Usually ships in 2-4 days

0

20

Echo 43312238130

SPRING, BRAKE

$6.99

$

Usually ships in 2-4 days

0

21

Echo 43331038130

COVER, BRAKE

$5.49

$

Usually ships in 2-4 days

0

22

$0.99

$

In Stock, only 2 left!

0

23

Echo 90025204012

SCREW - 4X12

$0.99

$

In Stock, only 2 left!

0

24

Echo 43301912330

NUT - FLANGE
(Superseded to V265000200)

$1.99

$

In Stock, Qty 20+

0

25

Echo P021002880

SPIKE KIT

Note: Includes ITEM 26

$10.99

$

Usually ships in 2-4 days

0

26

Echo 90010505012

SCREW - 5X12

$1.49

$

In Stock, Qty 20+

0

27

Echo V203000110

SCREW, TENSIONER

$5.99

$

In Stock, Qty 20+

0

28

Echo C309000030

TENSIONER, CHAIN

$4.49

$

In Stock, Qty 20+

0

29

Echo V651000011

GEAR - BEVEL

$7.99

$

In Stock, Qty 20+

0

30

Echo V355000270

COLLAR - 8
(Superseded to V355000800)

$1.49

$

In Stock, Qty 20+

0

31

Echo V651000001

GEAR - PINION

$7.99

$

In Stock, Qty 20+

0

32

Echo C305000040

PLATE, GUIDE - OUTER

$6.99

$

In Stock, Qty 11

0

33

Echo 90025304010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

34

Echo 90024103006

SCREW - 3X6

$0.99

$

In Stock, only 2 left!

0

35

Echo 90024104008

SCREW - 4X8

$0.99

$

In Stock, Qty 11

0

36

Echo 43301330830

PLATE, GUIDE - INNER

$5.49

$

In Stock, only 3 left!

0
