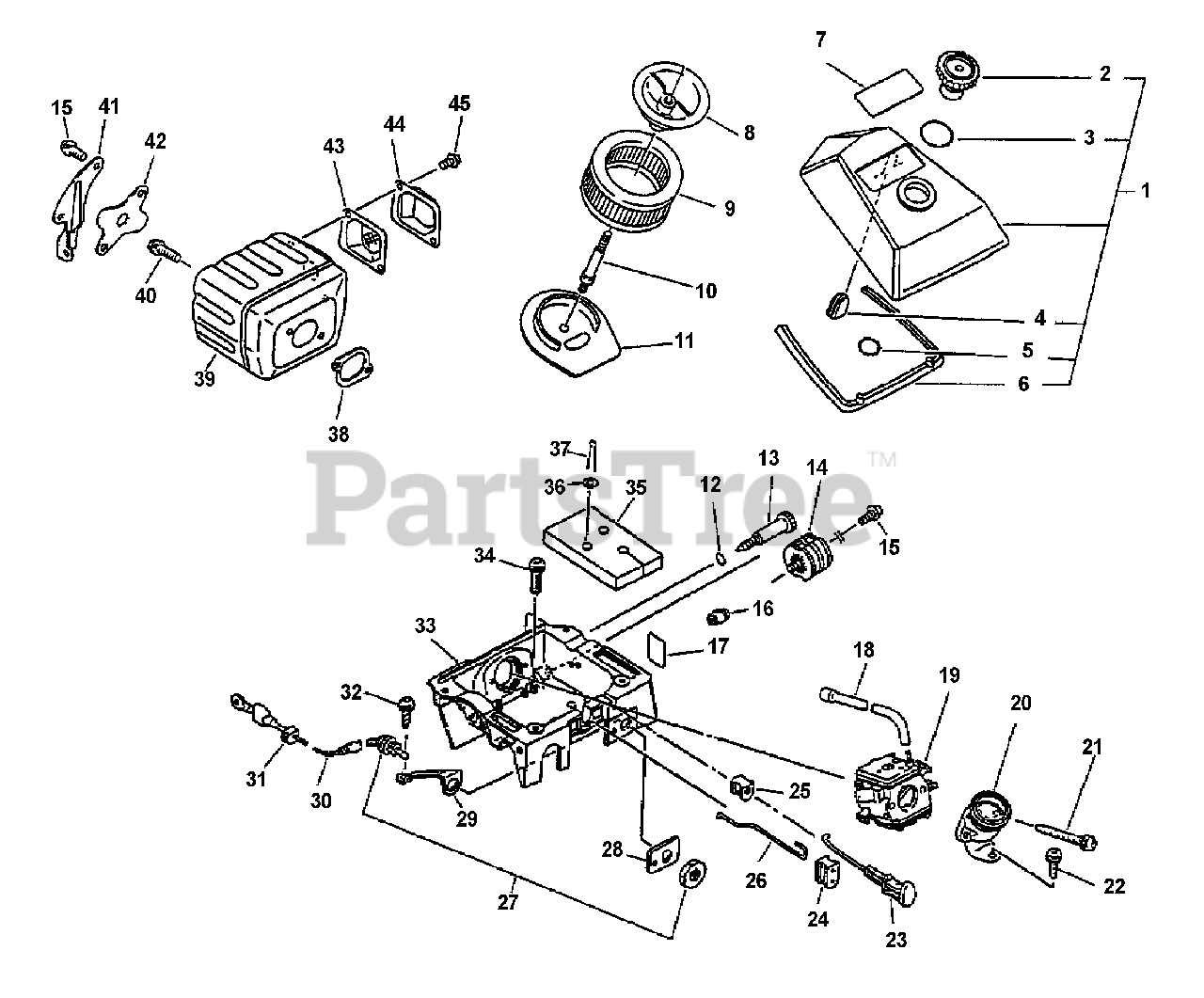

CS-6700 - Echo Chainsaw (Type 1E) Intake, Exhaust, Air Cleaner Parts Diagram

Chainsaw (Type 1E)

Intake, Exhaust, Air Cleaner Parts Diagram

  • Title
1

Echo 13030238131

AIR FILTER COVER ASSY
(Superseded to Discontinued)

Note: INCLUDES ITEMS 2 - 6

$

$

Not available

2

Echo 13040633331

THUMBNUT

$5.49

$

Usually ships in 2-4 days

0

3

Echo 90072000021

O-RING - 21

$1.49

$

Usually ships in 2-4 days

0

$1.49

$

In Stock, Qty 15

0

5

Echo 90072000011

O-RING - 11

$1.49

$

In Stock, only 1 left!

0

6

Echo 13036532430

SEAL
(Superseded to Discontinued)

$

$

Not available

7

Echo 89016138130

LABEL - MODEL CS-6700
(Superseded to Discontinued)

$

$

Not available

8

Echo 13040538130

COVER, AIR FILTER

$15.99

$

Usually ships in 2-4 days

0

9

Echo 13030038130

AIR CLEANER ASSY
(Superseded to Discontinued)

$

$

Not available

10

Echo 13032539730

STUD
(Superseded to Discontinued)

$

$

Not available

11

Echo 13042038131

BRACKET, AIR CLEANER

$9.49

$

Usually ships in 2-4 days

0

12

Echo 90072000007

O-RING - 7

$0.99

$

In Stock, only 1 left!

0

13

Echo 12901307061

SCREW, IDLE ADJUST

$6.49

$

Usually ships in 2-4 days

0

14

$23.99

$

Usually ships in 2-4 days

0

15

Echo 90016205014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

16

$1.99

$

Usually ships in 2-4 days

0

17

Echo 89018503460

LABEL - IDLE

$0.99

$

Usually ships in 2-4 days

0

18

Echo 13011019830

PIPE - IMPULSE
(Superseded to 13011019831)

$2.99

$

Usually ships in 2-4 days

0

19

Echo 12300032631

CARBURETOR HDA-151A
(Superseded to 12300032632)

$148.99

$

Usually ships in 2-4 days

0

20

Echo 13051832431

ADAPTOR, INTAKE
(Superseded to Discontinued)

$

$

Not available

21

Echo 90025205053

SCREW - 5X55

$0.99

$

Usually ships in 2-4 days

0

22

Echo 90025205014

SCREW - 5X14

$0.99

$

In Stock, only 2 left!

0

23

Echo 17851007060

ROD, CHOKE

$5.99

$

Usually ships in 2-4 days

0

24

Echo 17811432630

GUIDE, THROTTLE ROD

$1.49

$

In Stock, only 2 left!

0

25

Echo 17881033330

GROMMET
(Superseded to 17881033331)

$1.49

$

In Stock, only 2 left!

0

26

Echo 17801132431

ROD, THROTTLE
(Superseded to Discontinued)

$

$

Not available

27

Echo 16340032430

IGNITION SWITCH ASSY

$10.99

$

In Stock, only 3 left!

0

28

Echo 89015719830

LABEL - STOP

$4.99

$

Usually ships in 2-4 days

0

29

Echo 15663532430

TERMINAL - GROUND

$1.99

$

Usually ships in 2-4 days

0

30

Echo 16202132430

LEAD - GROUND
(Superseded to 16202132431)

$5.49

$

In Stock, only 1 left!

0

31

$0.99

$

In Stock, only 4 left!

0

32

Echo 90025204010

SCREW - 4X10

$0.99

$

Usually ships in 2-4 days

0

33

Echo 13030607062

CASE, CARBURETOR

$30.99

$

Usually ships in 2-4 days

0

34

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

$7.99

$

Usually ships in 2-4 days

0

36

$0.99

$

In Stock, only 3 left!

0

37

Echo 90030030018

PIN, SPLIT - 3X18
(Superseded to Discontinued)

$

$

Not available

38

Echo 14551032431

GASKET, EXHAUST

$3.49

$

In Stock, Qty 6

0

39

Echo 14561032430

MUFFLER
(Superseded to A300000781)

$79.99

$

In Stock, Qty 9

0

40

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

41

Echo 14571132430

BRACKET, MUFFLER

$6.49

$

In Stock, only 1 left!

0

42

Echo 14581331730

COVER, MUFFLER

$3.49

$

In Stock, only 1 left!

0

43

Echo 14586232630

SCREEN, SPARK ARRESTOR

$3.49

$

Usually ships in 2-4 days

0

44

Echo 14586132430

GUIDE, EXHAUST

$6.49

$

Usually ships in 2-4 days

0

45

Echo 90016204010

SCREW - 4X10

$1.49

$

In Stock, Qty 15

0
