CS-6700 - Echo Chainsaw (Type 1E) Handles, Throttle Control, Fuel System Parts Diagram

Chainsaw (Type 1E)

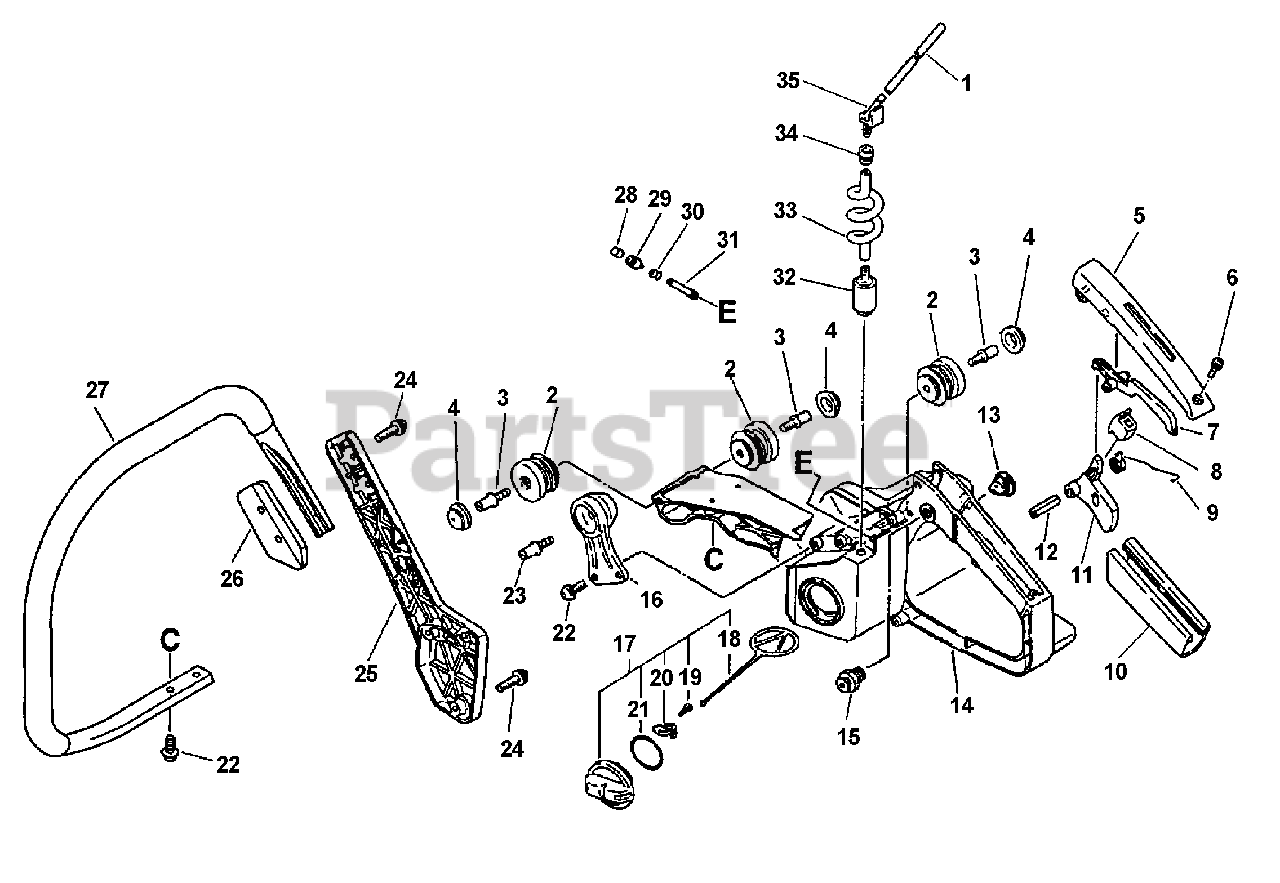

Handles, Throttle Control, Fuel System Parts Diagram

  • Title
1

Echo 13201219830

PIPE - 3X6X100 -- BLACK
(Superseded to 43721720760)

Note: RePower BULK OPTION: 90015

$5.49

$

In Stock, only 1 left!

0

2

$9.49

$

Usually ships in 2-4 days

0

$3.49

$

In Stock, Qty 11

0

4

Echo 10091819830

CAP, CUSHION

$1.99

$

In Stock, Qty 9

0

5

Echo 35115530131

COVER, HANDLE

$7.49

$

In Stock, only 4 left!

0

6

Echo 90023804014

SCREW - 4X14

$0.99

$

In Stock, Qty 20+

0

7

Echo 17809037930

LEVER, TRIGGER LOCKOUT

$4.99

$

In Stock, only 1 left!

0

8

$2.99

$

Usually ships in 2-4 days

0

9

Echo 17804319830

SPRING, TRIGGER

$2.49

$

In Stock, Qty 10

0

10

Echo 35111130130

GRIP, HANDLE

$3.49

$

Usually ships in 2-4 days

0

11

Echo 17801038130

TRIGGER, THROTTLE

$5.99

$

In Stock, Qty 5

0

12

Echo 90034250025

PIN - SPRING -- 5X25

$1.49

$

In Stock, Qty 10

0

$2.49

$

In Stock, only 2 left!

0

14

Echo 35110338130

HANDLE - REAR
(Superseded to 35110338131)

$

$

Not available

15

Echo 17830237930

LATCH, THROTTLE

$9.99

$

In Stock, only 1 left!

0

16

$20.99

$

In Stock, only 1 left!

0

17

Echo 13100437631

CAP ASSY
(Superseded to 13100437632)

Note: INCLUDES ITEMS 18 - 21

$3.49

$

In Stock, Qty 18

0

18

Echo A365000050

CONNECTOR, CAP

$2.49

$

In Stock, Qty 20+

0

19

Echo 90024603008

SCREW - 3X8

$

$

Not available

20

Echo 13105019830

RETAINER
(Superseded to Discontinued)

$

$

Not available

21

Echo 90072000029

O-RING - 29

$3.49

$

In Stock, Qty 18

0

22

Echo 90016205014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

23

$2.49

$

In Stock, Qty 5

0

24

Echo 90023805020

SCREW - 5X20

$0.99

$

In Stock, only 3 left!

0

25

Echo 35161638230

BRACKET, HANDLE

$47.99

$

Usually ships in 2-4 days

0

26

Echo 35161438230

BRACKET, HANDLE
(Superseded to Discontinued)

$

$

Not available

27

Echo 35160638130

HANDLE - FRONT
(Superseded to Discontinued)

$

$

Not available

28

Echo 13130040630

VENT, FUEL TANK
(Superseded to 13130056430)

$7.49

$

In Stock, Qty 10

0

29

Echo 13132840630

COVER, VENT

$6.49

$

In Stock, Qty 13

0

30

Echo 13011100530

CLIP - 5.5

$0.99

$

In Stock, Qty 20+

0

31

Echo 13131232430

PIPE - VENT

$13.99

$

Usually ships in 2-4 days

0

32

Echo 13120530830

FILTER, FUEL
(Superseded to 13120519830)

$9.49

$

In Stock, Qty 20+

0

33

Echo 13201030830

PIPE - BLACK
(Superseded to 13201030831)

$5.99

$

In Stock, only 1 left!

0

34

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.49

$

In Stock, Qty 9

0

35

Echo 13201119830

CONNECTOR, PIPE
(Superseded to 13201119831)

$4.49

$

In Stock, only 1 left!

0
