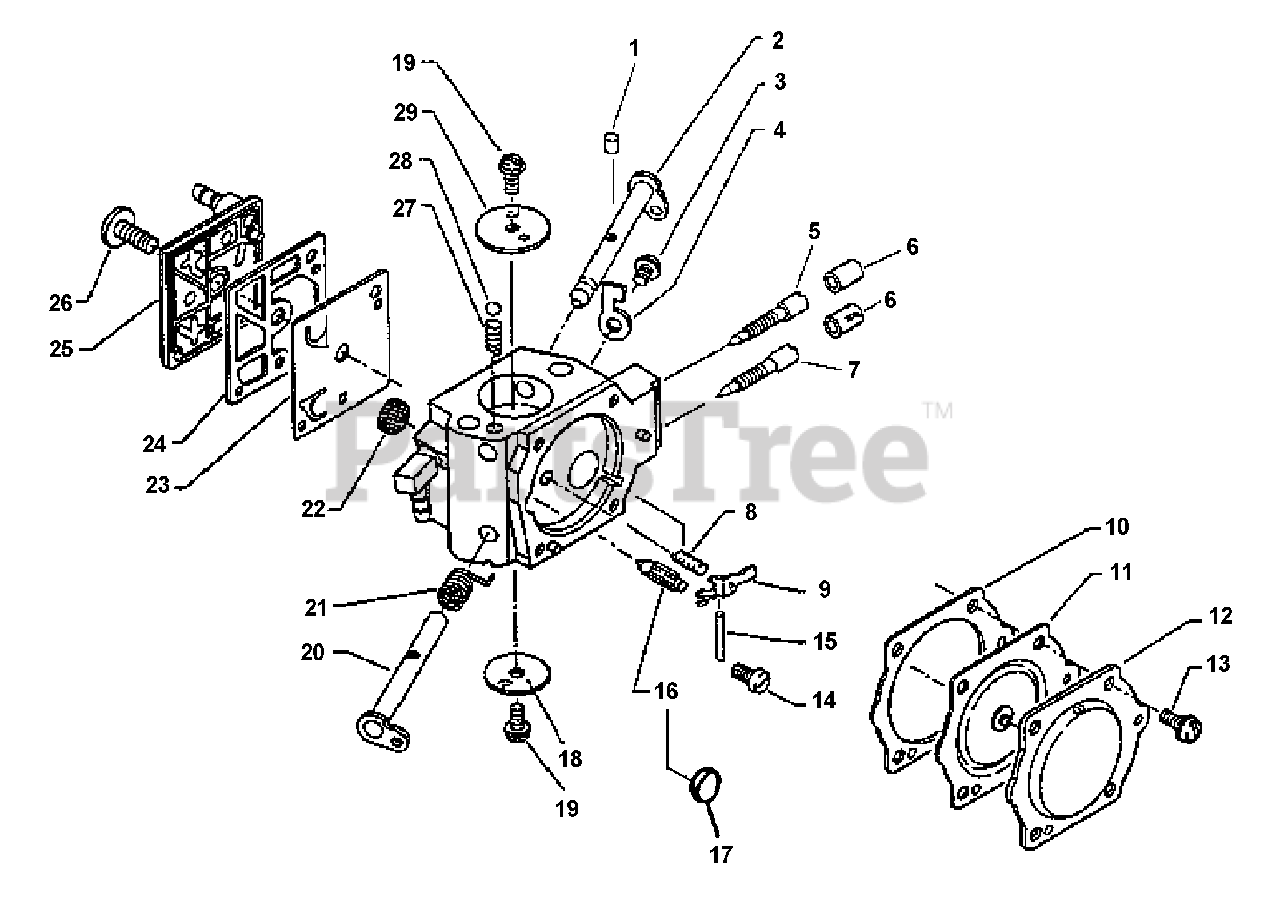

CS-6700 - Echo Chainsaw (Type 1E) Carburetor Parts Diagram

Chainsaw (Type 1E)

Carburetor Parts Diagram

  • Title

Echo 12300032631

CARBURETOR HDA-151A
(Superseded to 12300032632)

Note: INCLUDES THE FOLLOWING

$148.99

$

Usually ships in 2-4 days

0

1

------------------

PLUG, FRICTION

Note: (Incl. in Repair Kit 12310032630 & Diaphragm/Gasket Kit 12310117330)

$

$

Not available

2

Echo 12313119830

SHAFT, CHOKE

$5.49

$

Usually ships in 2-4 days

0

3

Echo 12311403930

SCREW

$1.49

$

In Stock, Qty 13

0

4

Echo 12315630830

STOP, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

5

Echo 12312032631

NEEDLE - HIGH SPEED

$4.49

$

In Stock, only 3 left!

0

6

Echo 12315139230

CAP, LIMITER

$1.99

$

In Stock, Qty 20+

0

7

Echo 12311802260

NEEDLE - LOW SPEED

$4.99

$

Usually ships in 2-4 days

0

8

------------------

SPRING, METERING LEVER

Note: (Included in Repair Kit 12310032630)

$

$

Not available

9

------------------

LEVER, METERING

Note: (Included in Repair Kit 12310032630)

$

$

Not available

10

------------------

GASKET, METERING

Note: (Incl. in Repair Kit 12310032630 & Diaphragm/Gasket Kit 12310117330)

$

$

Not available

11

------------------

DIAPHRAGM, METERING

Note: (Incl. in Repair Kit 12310032630 & Diaphragm/Gasket Kit 12310117330)

$

$

Not available

12

Echo 12314217330

COVER, METERING

$3.99

$

Usually ships in 2-4 days

0

13

------------------

SCREW

Note: (Incl. in Repair Kit 12310032630 & Diaphragm/Gasket Kit 12310117330)

$

$

Not available

14

------------------

SCREW, METERING LEVER PIN

Note: (Included in Repair Kit 12310032630)

$

$

Not available

15

------------------

PIN, METERING LEVER

Note: (Included in Repair Kit 12310032630)

$

$

Not available

16

------------------

VALVE, INLET NEEDLE

Note: (Included in Repair Kit 12310032630)

$

$

Not available

17

------------------

PLUG, WELCH

Note: (Included in Repair Kit 12310032630)

$

$

Not available

18

Echo 12313216130

VALVE, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

19

Echo 12311403930

SCREW

$1.49

$

In Stock, Qty 13

0

20

Echo 12311732630

SHAFT, THROTTLE

$9.99

$

Usually ships in 2-4 days

0

21

Echo 12311316130

SPRING, THROTTLE RETURN

$1.49

$

Usually ships in 2-4 days

0

22

------------------

STRAINER

Note: (Included in Repair Kit 12310032630)

$

$

Not available

23

------------------

DIAPHRAGM, PUMP

Note: (Incl. in Repair Kit 12310032630 & Diaphragm/Gasket Kit 12310117330)

$

$

Not available

24

------------------

GASKET, PUMP

Note: (Incl. in Repair Kit 12310032630 & Diaphragm/Gasket Kit 12310117330)

$

$

Not available

25

Echo 12312419830

COVER, PUMP

$7.99

$

Usually ships in 2-4 days

0

26

Echo 12311016130

SCREW, PUMP COVER

$0.99

$

Usually ships in 2-4 days

0

27

Echo 12313510630

SPRING

$1.49

$

Usually ships in 2-4 days

0

28

Echo 12313610630

BALL, CHOKE

$0.99

$

Usually ships in 2-4 days

0

29

Echo 12313232430

VALVE, CHOKE

$1.99

$

Usually ships in 2-4 days

0

Echo 12310032630

REPAIR KIT

$17.99

$

Usually ships in 2-4 days

0

Echo 12310117330

DIAPHRAGM/GASKET KIT

$8.99

$

Usually ships in 2-4 days

0
