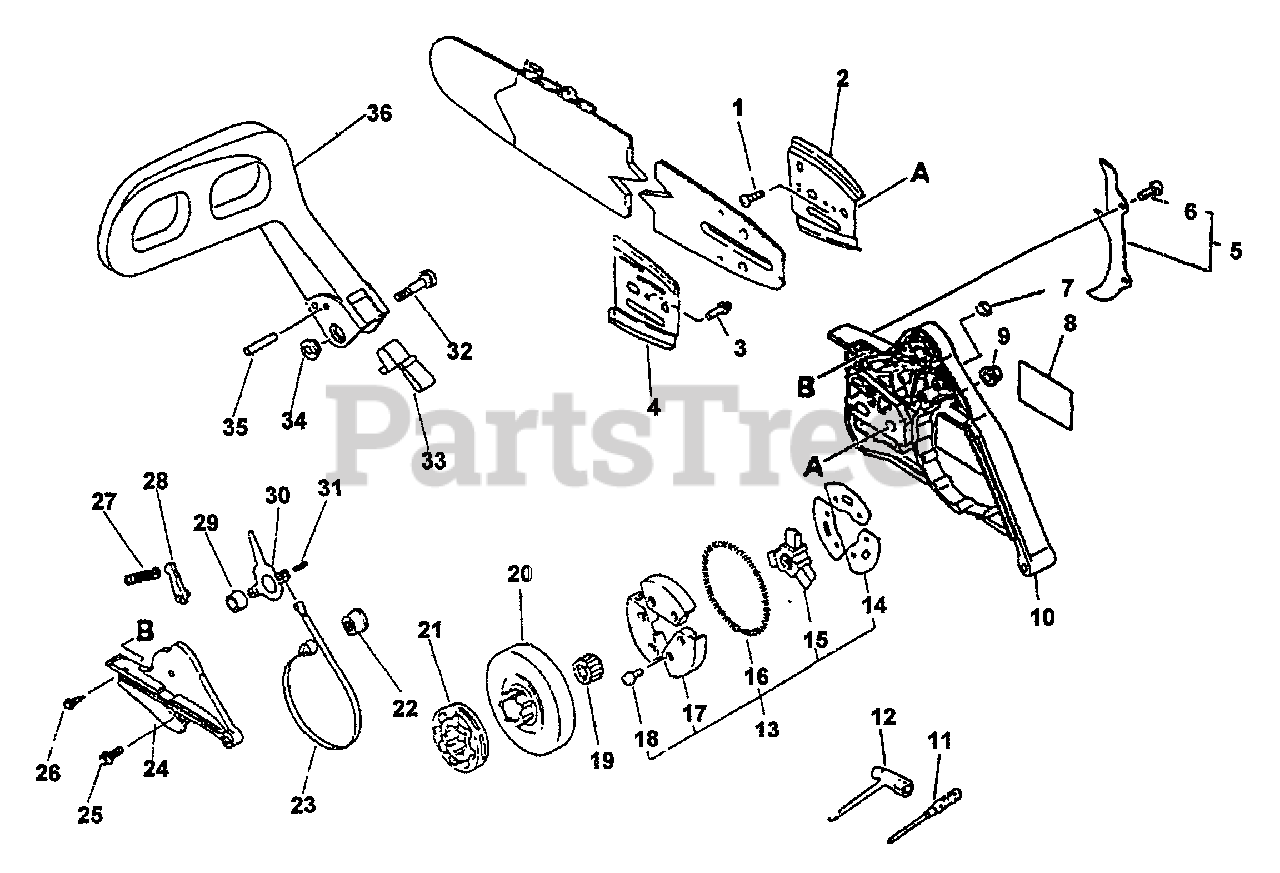

CS-6700 - Echo Chainsaw (SN: 031241 - 999999) Clutch, Cutting Attch, Chain Brake Parts Diagram

Chainsaw

Clutch, Cutting Attch, Chain Brake Parts Diagram

  • Title

1

Echo 90024103006

SCREW - 3X6

$0.99

$

In Stock, only 2 left!

0

2

Echo 43301230830

PLATE, GUIDE - OUTER

$5.49

$

In Stock, only 4 left!

0

3

Echo 90024104008

SCREW - 4X8

$0.99

$

In Stock, Qty 11

0

4

Echo 43301330830

PLATE, GUIDE - INNER

$5.49

$

In Stock, only 3 left!

0

5

Echo 88020032430

SPIKE KIT
(Superseded to P021002880)

$10.99

$

Usually ships in 2-4 days

0

6

Echo 88021130130

BOLT

$10.99

$

In Stock, only 1 left!

0

7

Echo 90050000003

NUT - 3

$0.99

$

In Stock, only 2 left!

0

8

Echo 89011838130

LABEL - ECHO
(Superseded to Discontinued)

$

$

Not available

9

Echo 43301912330

NUT - FLANGE
(Superseded to V265000200)

$1.99

$

In Stock, Qty 20+

0

10

Echo 43300538230

GUARD, SPROCKET
(Superseded to P021002291)

$

$

Not available

11

Echo 89581203930

SCREWDRIVER

$4.49

$

In Stock, only 2 left!

0

12

Echo 89541006960

T-WRENCH - 13X19mm
(Superseded to 89541006961)

$3.49

$

In Stock, Qty 7

0

13

Echo 17500032431

CLUTCH ASSY
(Superseded to 17500032432)

$77.99

$

Usually ships in 2-4 days

0

14

Echo 17501916130

PLATE, CLUTCH

$3.49

$

Usually ships in 2-4 days

0

15

Echo 17501632430

HUB, CLUTCH

$16.99

$

Usually ships in 2-4 days

0

16

Echo 17501832430

SPRING, CLUTCH

$2.99

$

In Stock, only 1 left!

0

17

Echo 17500232430

CLUTCH SHOE SET
(Superseded to 17500232431)

$61.99

$

In Stock, only 1 left!

0

18

Echo 90010504006

SCREW - 4X6

$0.99

$

In Stock, Qty 8

0

19

Echo 17501232430

BEARING, NEEDLE

$13.99

$

In Stock, only 1 left!

0

20

Echo 17510532430

DRUM, CLUTCH
(Superseded to 17510532431)

$40.99

$

In Stock, only 4 left!

0

21

Echo 682100

SPROCKET, RIM

$14.99

$

In Stock, only 1 left!

0

22

Echo 43314235430

ADJUSTER, BRAKE BAND

$3.49

$

In Stock, only 3 left!

0

23

Echo 43312338131

BAND, BRAKE

$9.99

$

In Stock, only 1 left!

0

24

Echo 43331038230

COVER, BRAKE

$6.49

$

Usually ships in 2-4 days

0

25

Echo 90022003018

SCREW - 3X18

$0.99

$

In Stock, only 4 left!

0

26

Echo 90025204012

SCREW - 4X12

$0.99

$

In Stock, only 2 left!

0

27

Echo 43312238130

SPRING, BRAKE

$6.99

$

Usually ships in 2-4 days

0

28

Echo 43320935430

STOPPER, BRAKE

$4.99

$

Usually ships in 2-4 days

0

29

Echo 43311635430

SPACER - 8

$5.49

$

In Stock, Qty 5

0

30

Echo 43320835430

LEVER, BRAKE
(Superseded to 43320835431)

$19.99

$

Usually ships in 2-4 days

0

31

Echo 90034540008

PIN - SPRING -- 4X8
(Superseded to 90033040088)

$1.49

$

In Stock, only 3 left!

0

32

Echo 43311337530

MOUNTING KIT
(Superseded to 43311337538)

$5.49

$

In Stock, Qty 14

0

33

Echo 43311438130

SPRING, RETURN
(Superseded to 43311438131)

$6.99

$

Usually ships in 2-4 days

0

34

Echo 43313730130

NUT

$11.99

$

Usually ships in 2-4 days

0

35

Echo 90033035260

PIN - 3.5X26

$0.99

$

In Stock, Qty 7

0

36

Echo 43310533530

LEVER, BRAKE
(Superseded to 43310533531)

$

$

Not available

Echo 16D0PS3860

GUIDE BAR - 16" (40cm)

Note: GAUGE: .050"

$

$

Not available

Echo 20D0PS3870

GUIDE BAR - 20" (50cm)

Note: GAUGE: .050"

$

$

Not available

Echo 24D0PS3881

GUIDE BAR - 24" (60cm)
(Superseded to 24D0PS3881C)

Note: GAUGE: .050"

$133.99

$

In Stock, only 4 left!

0

Echo 27D0PS3893

GUIDE BAR - 27" (68cm)

Note: GAUGE: .050"

$124.99

$

Usually ships in 2-4 days

0

Echo 72V60CQ

SAW CHAIN - 16" (40cm)

Note: GAUGE: .050" / PITCH: .375"

$23.99

$

Usually ships in 2-4 days

0

Echo 72V70CQ

SAW CHAIN - 20" (50cm)

Note: GAUGE: .050" / PITCH: .375"

$

$

Currently unavailable

Echo 72V81CQ

SAW CHAIN - 24" (60cm)

Note: GAUGE: .050" / PITCH: .375"

$40.99

$

In Stock, only 1 left!

0

Echo 72V93CQ

SAW CHAIN - 27" (68cm)

Note: GAUGE: .050" / PITCH: .375"

$

$

Currently unavailable

Echo 99988801205

FIXED NOSE CASE

Note: HOLDS UP TO CS-6700 20" BAR

$

$

Currently unavailable

Echo 89850308033

COVER, GUIDE BAR - 20" (50cm)

$

$

Currently unavailable
