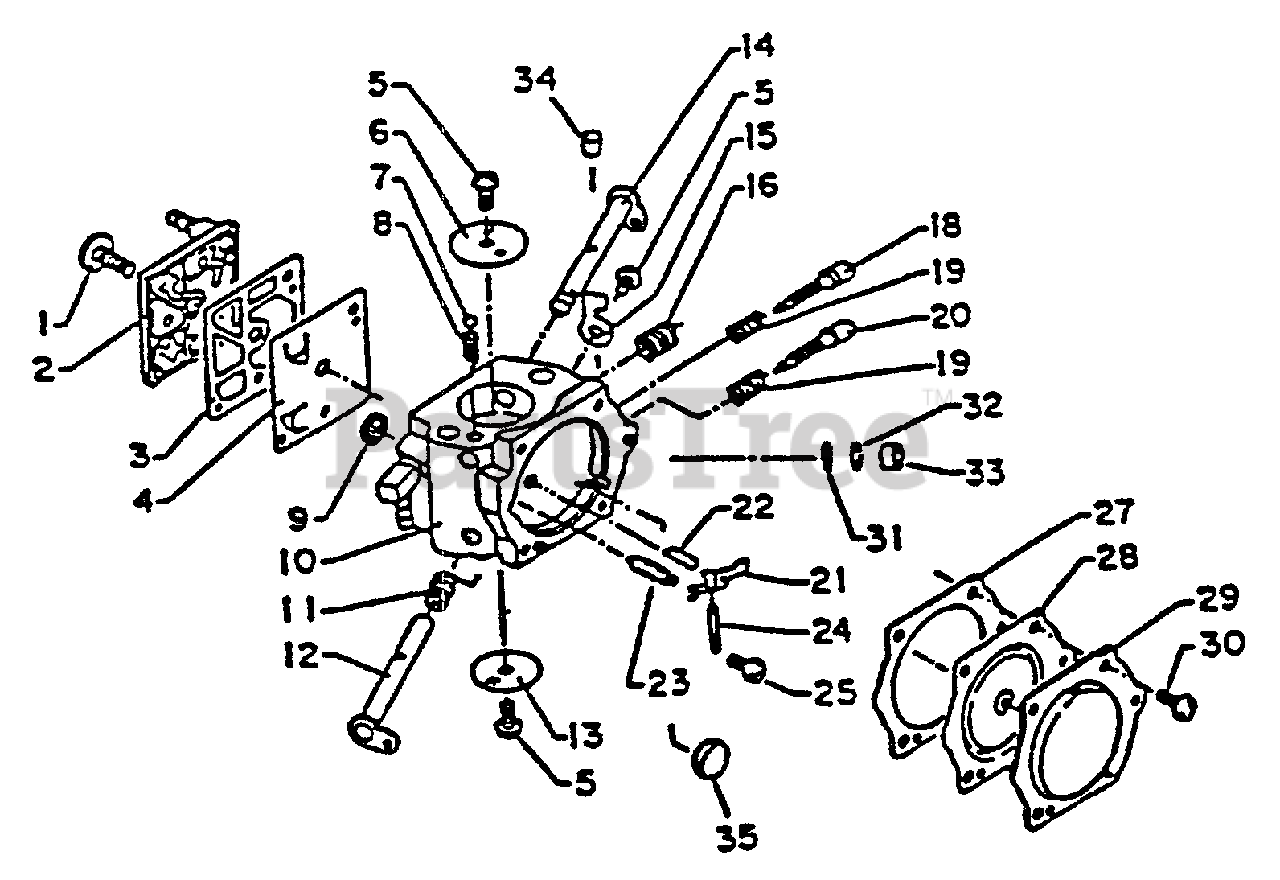

CS-6700 - Echo Chainsaw (SN: 001001 - 023377) Carburetor Parts Diagram

Chainsaw

Carburetor Parts Diagram

  • Title

Echo 12300032432

CARBURETOR HDA-76

Note: REVISED 05-94

$109.99

$

Usually ships in 2-4 days

0

1

Echo 12311016130

SCREW, PUMP COVER

$0.99

$

Usually ships in 2-4 days

0

2

Echo 12312419830

COVER, PUMP

$7.99

$

Usually ships in 2-4 days

0

3

------------------

GASKET, PUMP

Note: Use Carburetor repair kit P/N 12310019830 And Carburetor diaphragm/gasket kit P/N 12310117330

$

$

Not available

4

------------------

DIAPHRAGM, PUMP

Note: Use Carburetor repair kit P/N 12310019830 And Carburetor diaphragm/gasket kit P/N 12310117330

$

$

Not available

5

Echo 12311403930

SCREW

$1.49

$

In Stock, Qty 13

0

6

Echo 12313217330

VALVE, CHOKE
(Superseded to Discontinued)

$

$

Not available

7

Echo 12313610630

BALL, CHOKE

$0.99

$

Usually ships in 2-4 days

0

8

Echo 12313510630

SPRING

$1.49

$

Usually ships in 2-4 days

0

9

------------------

STRAINER

Note: Use Carburetor repair kit P/N 12310019830

$

$

Not available

10

Echo 12310019830

REPAIR KIT

Note: Use Carb Ass'y P/N 12300032432

$23.99

$

Usually ships in 2-4 days

0

11

Echo 12311316130

SPRING, THROTTLE RETURN

$1.49

$

Usually ships in 2-4 days

0

12

Echo 12311732430

SHAFT, THROTTLE

$4.99

$

Usually ships in 2-4 days

0

13

Echo 12313216130

VALVE, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

14

Echo 12313119830

SHAFT, CHOKE

$5.49

$

Usually ships in 2-4 days

0

15

Echo 12315612330

STOP, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

16

Echo 12313311130

SPRING, IDLE ADJUST
(Superseded to Discontinued)

$

$

Not available

18

Echo 12311818331

NEEDLE - LOW SPEED

$4.99

$

Usually ships in 2-4 days

0

19

------------------

SPRING, LOW SPEED NEEDLE

Note: Use Carburetor repair kit P/N 12310019830

$

$

Not available

20

Echo 12312018330

NEEDLE - HIGH SPEED

$4.99

$

Usually ships in 2-4 days

0

21

------------------

LEVER, METERING

Note: Use Carburetor repair kit P/N 12310019830

$

$

Not available

22

------------------

SPRING, METERING LEVER

Note: Use Carburetor repair kit P/N 12310019830

$

$

Not available

23

------------------

VALVE, INLET NEEDLE

Note: Use Carburetor repair kit P/N 12310019830

$

$

Not available

24

------------------

PIN, METERING LEVER

Note: Use Carburetor repair kit P/N 12310019830

$

$

Not available

25

------------------

SCREW

Note: Use Carburetor repair kit P/N 12310019830

$

$

Not available

27

------------------

GASKET, METERING

Note: Use Carburetor repair kit P/N 12310019830 And Carburetor diaphragm/gasket kit P/N 12310117330

$

$

Not available

28

------------------

DIAPHRAGM, METERING

Note: Use Carburetor repair kit P/N 12310019830 And Carburetor diaphragm/gasket kit P/N 12310117330

$

$

Not available

29

Echo 12314217330

COVER, METERING

$3.99

$

Usually ships in 2-4 days

0

30

------------------

SCREW

Note: Use Carburetor repair kit P/N 12310019830

$

$

Not available

31

------------------

STRAINER

Note: Use Carburetor repair kit P/N 12310019830

$

$

Not available

32

------------------

RING, RETAINING

Note: Use Carburetor repair kit P/N 12310019830

$

$

Not available

33

------------------

PLUG, WELCH

Note: Use Carburetor repair kit P/N 12310019830

$

$

Not available

34

Echo 12317815030

PLUG

$4.99

$

Usually ships in 2-4 days

0

35

------------------

PLUG, WELCH

Note: Use Carburetor repair kit P/N 12310019830

$

$

Not available
