CS-6700 - Echo Chainsaw (Original Version) Handles, Fuel System Parts Diagram

Chainsaw

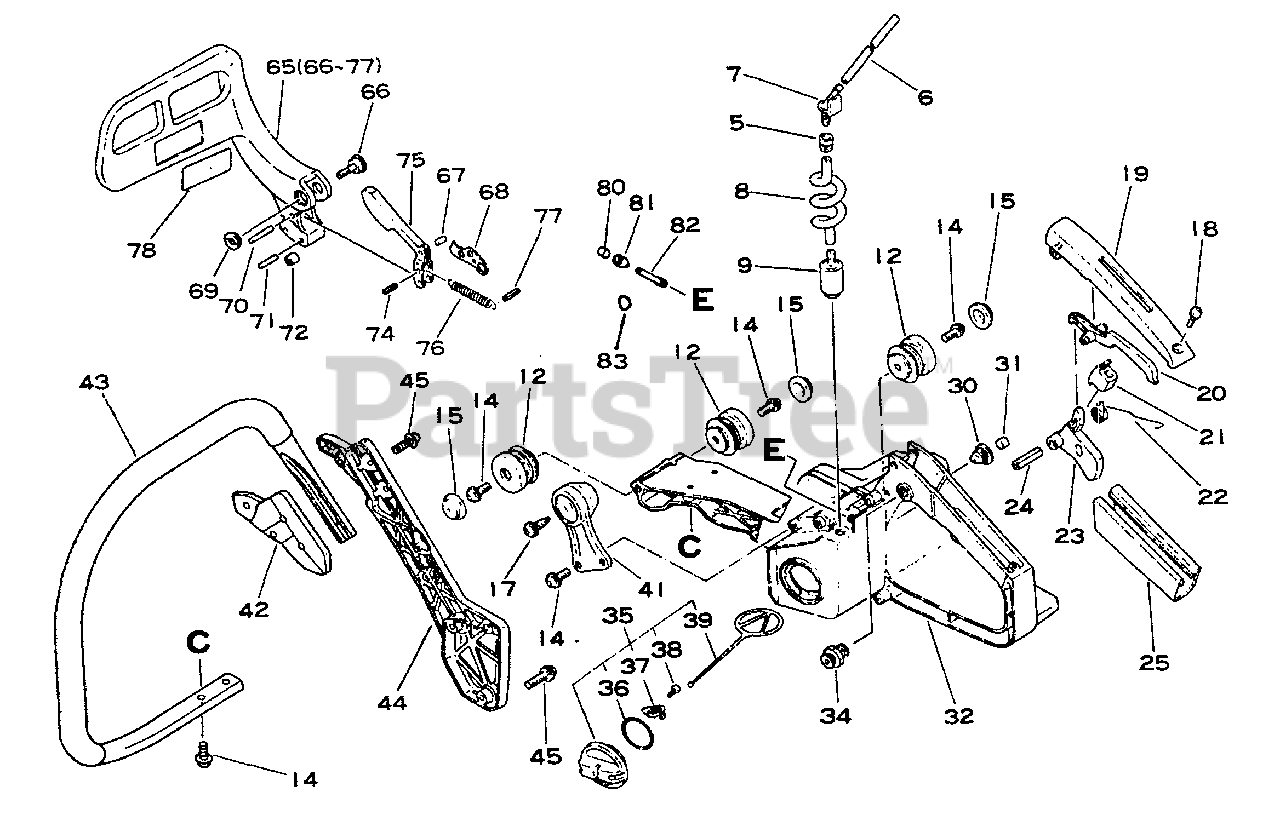

Handles, Fuel System Parts Diagram

  • Title
5

Echo 13211501460

GROMMET
(Superseded to 13211501461)

$1.49

$

In Stock, Qty 19

0

6

Echo 13201219830

PIPE - 3X6X100 -- BLACK
(Superseded to 43721720760)

Note: RePower BULK OPTION: 90015

$5.49

$

In Stock, only 1 left!

0

7

Echo 13201119830

CONNECTOR, PIPE
(Superseded to 13201119831)

$4.49

$

In Stock, only 1 left!

0

8

Echo 13201030830

PIPE - BLACK
(Superseded to 13201030831)

$5.99

$

Usually ships in 2-4 days

0

9

Echo 13120500230

FILTER, FUEL
(Superseded to 13120530830)

$9.49

$

In Stock, Qty 20+

0

12

Echo 10091032430

CUSHION
(Superseded to 10091032630)

$9.49

$

Usually ships in 2-4 days

0

14

Echo 90028105014

SCREW - 5X14
(Superseded to 90016205014)

$1.49

$

In Stock, Qty 20+

0

15

Echo 10091819830

CAP, CUSHION

$1.99

$

In Stock, Qty 8

0

17

Echo 90028505014

SCREW - 5X14
(Superseded to 90024605014)

$1.49

$

Usually ships in 2-4 days

0

18

Echo 90028104014

SCREW - 4X14
(Superseded to 90023804014)

$0.99

$

In Stock, Qty 20+

0

19

Echo 35115530131

COVER, HANDLE

$7.49

$

In Stock, only 4 left!

0

20

Echo 17809030130

LOCKOUT, THROTTLE

$3.99

$

Usually ships in 2-4 days

0

21

$2.99

$

Usually ships in 2-4 days

0

22

Echo 17804319830

SPRING, TRIGGER

$2.49

$

In Stock, Qty 10

0

23

Echo 17801019830

TRIGGER, THROTTLE

$4.49

$

Usually ships in 2-4 days

0

24

Echo 90034550025

PIN - SPRING -- 5X25

$1.99

$

Usually ships in 2-4 days

0

25

Echo 35111119830

GRIP, HANDLE
(Superseded to 35111119831)

$6.49

$

Usually ships in 2-4 days

0

$5.49

$

In Stock, only 2 left!

0

31

$0.99

$

In Stock, Qty 6

0

32

Echo 35110332431

HANDLE - REAR
(Superseded to 35110332432)

$184.99

$

Usually ships in 2-4 days

0

34

Echo 17830212330

LATCH, THROTTLE
(Superseded to 17830237930)

$9.99

$

In Stock, only 1 left!

0

35

Echo 13100419830

CAP ASSY
(Superseded to 13100437630)

$3.49

$

In Stock, Qty 15

0

36

Echo 90072000029

O-RING - 29

$3.49

$

In Stock, Qty 18

0

37

Echo 13105019830

RETAINER
(Superseded to Discontinued)

$

$

Not available

38

Echo 90025803008

SCREW - 3X8
(Superseded to Discontinued)

$

$

Not available

39

Echo A365000050

CONNECTOR, CAP

$2.49

$

In Stock, Qty 20+

0

41

Echo 10092132430

CUSHION
(Superseded to 10092132431)

$20.99

$

In Stock, only 1 left!

0

42

Echo 35161432430

BRACKET, HANDLE - INNER
(Superseded to 35161433530)

$

$

Not available

43

Echo 35160632630

HANDLE - FRONT
(Superseded to 35160638130)

$

$

Not available

44

Echo 35161332430

BRACKET, HANDLE - OUTER
(Superseded to 35161632430)

$45.99

$

Usually ships in 2-4 days

0

45

Echo 90028105020

SCREW - 5X20
(Superseded to 90023805020)

$0.99

$

In Stock, only 3 left!

0

65

Echo 43320332630

BRAKE LEVER ASSY
(Superseded to 43320332632)

Note: SEE PARTS BULL. 88-6P

$

$

Not available

66

$4.99

$

Usually ships in 2-4 days

0

67

Echo 90033040080

PIN - LOCATING

$0.99

$

In Stock, Qty 20+

0

68

Echo 43316332430

STOPPER
(Superseded to Discontinued)

$

$

Not available

$11.99

$

Usually ships in 2-4 days

0

70

Echo 90033030240

PIN - 3X24

$0.99

$

In Stock, Qty 20+

0

$0.99

$

In Stock, Qty 9

0

72

Echo 43316819930

SPACER
(Superseded to Discontinued)

$

$

Not available

74

Echo 90034530012

PIN - SPRING -- 3X12

$3.49

$

In Stock, only 2 left!

0

75

Echo 43317030130

WEIGHT, BRAKE

$12.99

$

In Stock, only 1 left!

0

76

Echo 43311430130

SPRING, RETURN

$2.49

$

Usually ships in 2-4 days

0

77

Echo 90034530016

PIN - SPRING -- 3X16

$1.49

$

In Stock, only 2 left!

0

78

------------------

UNKNOWN

$

$

Not available

80

Echo 13130040630

VENT, FUEL TANK
(Superseded to 13130056430)

$7.49

$

In Stock, Qty 11

0

81

Echo 13132840630

COVER, VENT

$6.49

$

In Stock, Qty 13

0

82

Echo 13131232430

PIPE - VENT

$13.99

$

Usually ships in 2-4 days

0

83

Echo 13011100530

CLIP - 5.5

$0.99

$

In Stock, Qty 20+

0
