CS-670 - Echo Chainsaw (SN: C15204001001 - C15204999999) Ignition, Starter, Flywheel Parts Diagram

Chainsaw

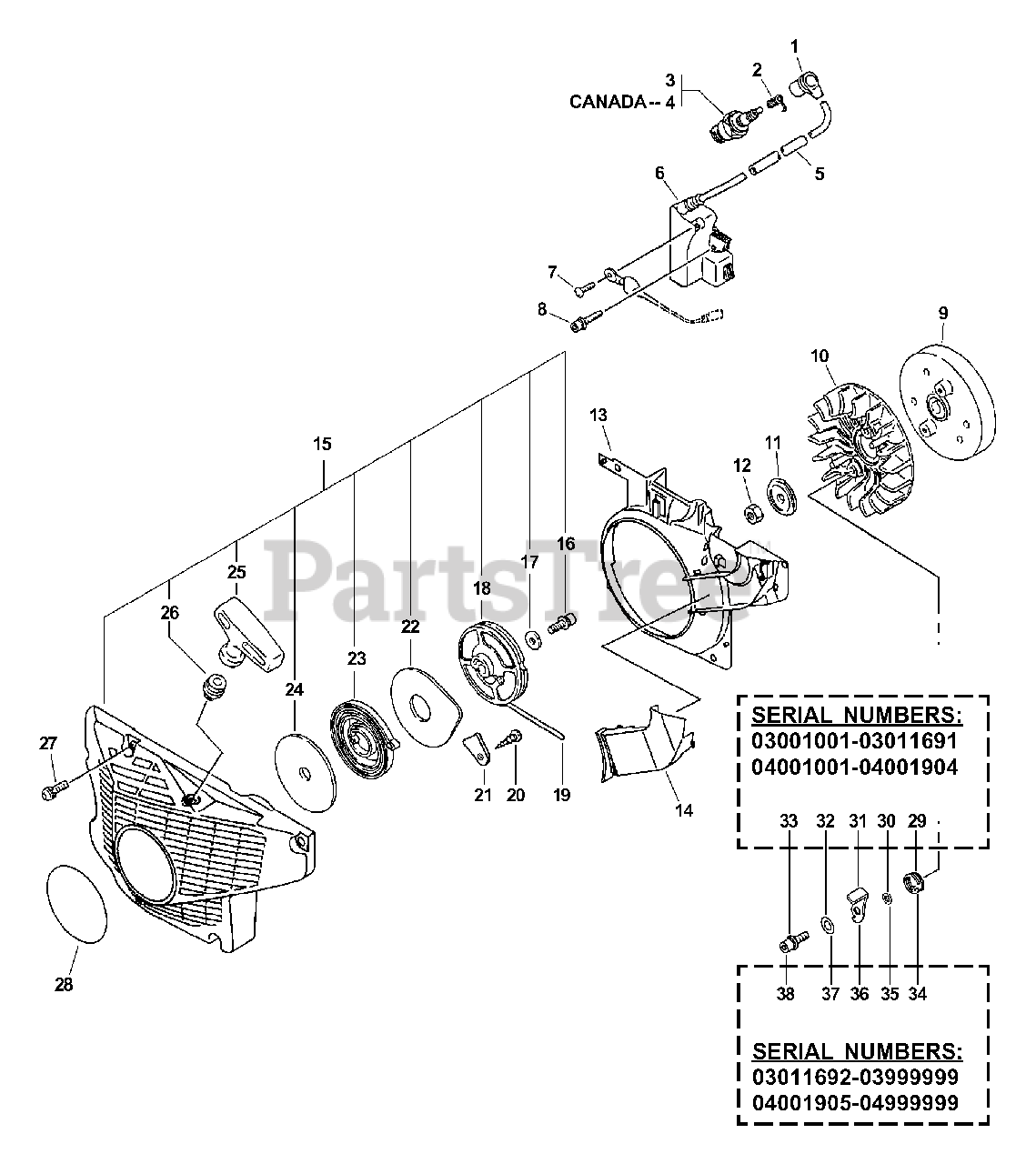

Ignition, Starter, Flywheel Parts Diagram

  • Title

1

Echo A427000010

CAP, SPARK PLUG
(Superseded to A427000011)

$2.99

$

In Stock, Qty 20+

0

2

Echo A426000010

TERMINAL, SPARK PLUG

$1.49

$

In Stock, Qty 10

0

3

Echo 15901716431

SPARK PLUG - CJ-6Y
(Superseded to Discontinued)

$

$

Not available

4

Echo 15901010230

SPARK PLUG - BPMR7A

$3.49

$

In Stock, Qty 20+

0

5

Echo 150611-32430

TUBE
(Superseded to 15661119830)

$1.99

$

Usually ships in 2-4 days

0

6

Echo 15660132631

COIL, IGNITION
(Superseded to 15660132632)

$138.99

$

In Stock, only 1 left!

0

7

Echo 90024204008

SCREW 4×8

$0.99

$

In Stock, Qty 8

0

8

Echo 90016204020

BOLT 4×20

$1.49

$

In Stock, Qty 20+

0

9

Echo 15680032631

FLYWHEEL

$104.99

$

Usually ships in 2-4 days

0

10

Echo 10152132330

FAN

$14.99

$

Usually ships in 2-4 days

0

11

Echo 10014319830

WASHER 8.2×31×0.8

$1.49

$

In Stock, Qty 6

0

12

Echo 90050000008

NUT M8

$0.99

$

In Stock, Qty 20+

0

13

Echo A172000130

COVER, FAN

$11.99

$

Usually ships in 2-4 days

0

14

Echo A161000020

DUCT, AIR

$6.49

$

Usually ships in 2-4 days

0

15

Echo P021002811

STARTER ASSY

Note: Includes ITEMS 16-26

$80.99

$

Usually ships in 2-4 days

0

16

Echo 90016205014

BOLT 5×14

$1.49

$

In Stock, Qty 20+

0

17

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

18

Echo 17721532330

REEL, ROPE

$8.99

$

In Stock, only 1 left!

0

19

Echo 17722607060

ROPE, STARTER 4.0×950

Note: RePower BULK OPTION: 99944450000

$10.99

$

In Stock, Qty 9

0

20

Echo 90025304008

SCREW 4×8

$0.99

$

In Stock, only 2 left!

0

21

Echo 43314415130

PLATE, EYE

$1.99

$

In Stock, only 1 left!

0

22

Echo 17722107060

PLATE, STARTER

$10.99

$

In Stock, only 1 left!

0

23

Echo 17722002834

SPRING, RECOIL

$21.99

$

In Stock, Qty 9

0

24

Echo 17722102830

PLATE, STARTER

$5.99

$

In Stock, Qty 8

0

25

Echo 17722830830

GRIP, STARTER
(Superseded to 17722830832)

$5.99

$

Usually ships in 2-4 days

0

26

Echo 17722707060

GUIDE, ROPE

$17.99

$

Usually ships in 2-4 days

0

27

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

28

Echo 89011817930

LABEL, ECHO

$7.99

$

In Stock, Qty 9

0

29

Echo 17723419830

SPRING, RETURN
(Superseded to 17723419832)

Note: SERIAL NUMBERS: 03001001-03011691, 04001001-04001904

$3.49

$

In Stock, Qty 6

0

30

Echo 17724719830

SPACER, PAWL

Note: S/N: 03001001-03011691, 04001001-04001904

$1.99

$

Usually ships in 2-4 days

0

31

Echo 17721832630

PAWL, STARTER
(Superseded to P021009870)

Note: S/N: 03001001-03011691, 04001001-04001904

$16.99

$

In Stock, only 1 left!

0

32

Echo 900603-00005

WASHER 5.5×12×0.8

Note: S/N: 03001001-03011691, 04001001-04001904

$0.99

$

In Stock, Qty 20+

0

33

Echo 90016205014

BOLT 5×14

Note: S/N: 03001001-03011691, 04001001-04001904

$1.49

$

In Stock, Qty 20+

0

34

Echo 17723419832

SPRING, RETURN

Note: S/N: 03011692-03999999, 04001905-04999999

$3.49

$

In Stock, Qty 6

0

35

Echo V353000191

COLLAR 5
(Superseded to V353000192)

Note: S/N: 03011692-03999999, 04001905-04999999

$3.49

$

Usually ships in 2-4 days

0

36

Echo 17721832631

PAWL, STARTER
(Superseded to 17721832632)

Note: S/N: 03011692-03999999, 04001905-04999999

$5.49

$

Usually ships in 2-4 days

0

37

Echo 900603-00005

WASHER 5.5×12×0.8

Note: S/N: 03011692-03999999, 04001905-04999999

$0.99

$

In Stock, Qty 20+

0

38

Echo 90016205020

BOLT 5×20

Note: S/N: 03011692-03999999, 04001905-04999999

$1.49

$

In Stock, Qty 20+

0
