CS-670 - Echo Chainsaw (SN: C15204001001 - C15204999999) Chain Brake Asssembly, Guide Bar, Chain Parts Diagram

Chainsaw

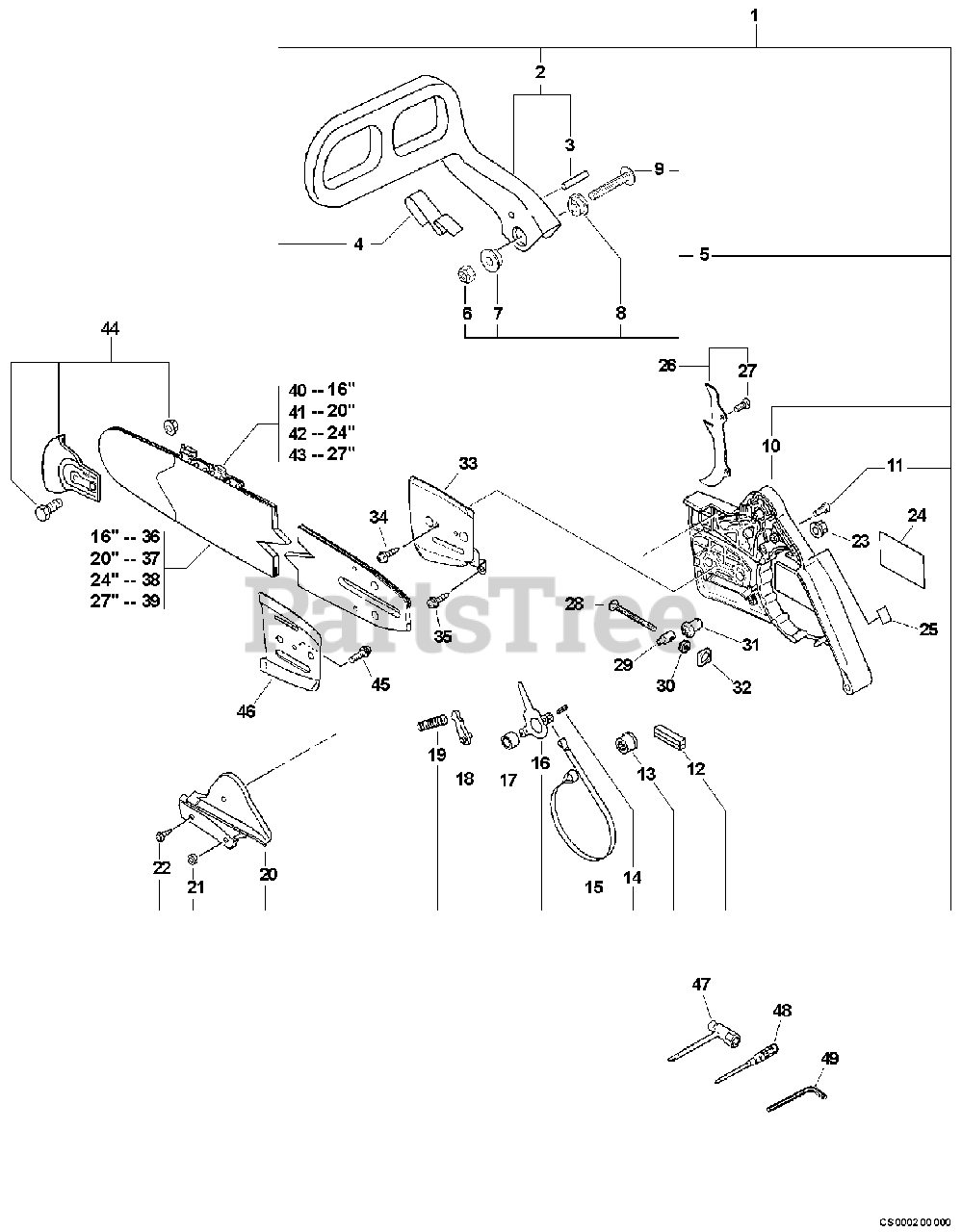

Chain Brake Asssembly, Guide Bar, Chain Parts Diagram

  • Title

1

Echo 43320232637

CHAIN BRAKE ASSY
(Superseded to 43320232638)

Note: INCLUDES ITEMS 2-22

$98.99

$

In Stock, only 1 left!

0

2

Echo 43310533530

LEVER, BRAKE
(Superseded to 43310533531)

Note: Includes ITEM 3

$

$

Not available

3

Echo 90033035260

PIN 3.5×26

$0.99

$

In Stock, Qty 7

0

4

Echo 43311438131

SPRING, FLAT

$6.99

$

Usually ships in 2-4 days

0

5

Echo 43311337539

SCREW KIT

Note: Includes ITEMS 6-9

$5.49

$

In Stock, Qty 14

0

6

Echo 90056200005

NUT, LOCK M5

$1.49

$

Usually ships in 2-4 days

0

7

Echo 43316739130

COLLAR 5.3×10×13×L5

$2.99

$

In Stock, Qty 10

0

8

Echo 43316739730

COLLAR 5

$2.99

$

In Stock, only 1 left!

0

9

Echo 90020905035

SCREW 5×35

$1.49

$

In Stock, only 4 left!

0

10

Echo P021002291

GUARD, SPROCKET
(Superseded to P021002292)

$

$

Not available

11

Echo 90022003018

SCREW 3×18

$0.99

$

In Stock, only 4 left!

0

12

Echo 43331232630

SEAL, BRAKE

$1.49

$

In Stock, Qty 7

0

13

Echo 43314235430

ADJUSTER, BRAKE

$3.49

$

In Stock, only 3 left!

0

14

Echo 90033040088

PIN, SPRING 4×8.8

$1.49

$

In Stock, only 3 left!

0

15

Echo 43312338131

BAND, BRAKE

$9.99

$

In Stock, only 1 left!

0

16

Echo 43320835431

LEVER, BRAKE

$19.99

$

Usually ships in 2-4 days

0

17

Echo 43311635430

SPACER 8×12×9

$5.49

$

In Stock, only 4 left!

0

18

Echo 43320935430

STOPPER, BRAKE

$4.99

$

Usually ships in 2-4 days

0

19

Echo 43312238130

SPRING, BRAKE

$6.99

$

Usually ships in 2-4 days

0

20

Echo 43331038230

COVER, BRAKE

$6.49

$

Usually ships in 2-4 days

0

21

Echo 90050000003

NUT 3 MM

$0.99

$

In Stock, only 2 left!

0

22

Echo 90025204012

SCREW 4×12

$0.99

$

In Stock, only 2 left!

0

23

Echo 43301912330

NUT, FLANGE M8×1.25
(Superseded to V265000200)

$1.99

$

In Stock, Qty 20+

0

24

Echo 89011815130

LABEL - ECHO

$1.99

$

In Stock, Qty 5

0

25

Echo X524000680

LABEL, OILER

$3.99

$

Usually ships in 2-4 days

0

26

Echo P021002880

SPIKE KIT, BUMPER

Note: Includes ITEM 27

$10.99

$

Usually ships in 2-4 days

0

27

Echo 90010505012

BOLT 5×12

$1.49

$

In Stock, Qty 20+

0

28

Echo V203000041

BOLT 5

$5.99

$

In Stock, Qty 10

0

29

Echo C309000030

TENSIONER, CHAIN

$4.49

$

In Stock, Qty 20+

0

30

Echo V651000010

GEAR, BEVEL
(Superseded to V651000011)

$7.99

$

In Stock, Qty 20+

0

31

Echo V651000000

GEAR, BEVEL
(Superseded to V651000001)

$7.99

$

In Stock, Qty 20+

0

32

Echo V355000270

COLLAR 8
(Superseded to V355000800)

$1.49

$

In Stock, Qty 20+

0

33

Echo C305000040

PLATE, GUIDE - OUTER

$6.99

$

In Stock, Qty 11

0

34

Echo 90024103006

SCREW 3×6

$0.99

$

In Stock, only 2 left!

0

35

Echo 90025304010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0

36

Echo 16D0PS3860

GUIDE BAR, 16" POWER MATCH

Note: GAUGE: .050"

$

$

Not available

37

Echo 20D0PS3870

GUIDE BAR, 20" POWER MATCH

Note: GAUGE: .050"

$

$

Not available

38

Echo 24D0PS3881

GUIDE BAR, 24" POWER MATCH
(Superseded to 24D0PS3881C)

Note: GAUGE: .050"

$133.99

$

In Stock, only 4 left!

0

39

Echo 27D0PS3893

GUIDE BAR, 27" POWER MATCH

Note: GAUGE: .050"

$124.99

$

Usually ships in 2-4 days

0

40

Echo 72V60CQ

SAWING CHAIN - 16" -- VANGUARD

Note: GAUGE: .050" / PITCH: .375"

$23.99

$

Usually ships in 2-4 days

0

41

Echo 72V70CQ

SAWING CHAIN - 20" -- VANGUARD

Note: GAUGE: .050" / PITCH: .375"

$

$

Currently unavailable

42

Echo 72V81CQ

SAWING CHAIN - 24" -- VANGUARD

Note: GAUGE: .050" / PITCH: .375"

$40.99

$

In Stock, only 1 left!

0

43

Echo 72V93CQ

CHAIN

Note: GAUGE: .050" / PITCH: .375"

$

$

Currently unavailable

44

Echo 2893201

KICK GUARD KIT

$5.49

$

In Stock, only 2 left!

0

45

Echo 900241-04008

SCREW 4×8

$0.99

$

In Stock, Qty 11

0

46

Echo 43301330830

PLATE, GUIDE - INNER

$5.49

$

In Stock, only 3 left!

0

47

Echo 89541006960

T-WRENCH 13×19×180
(Superseded to 89541006961)

$3.49

$

In Stock, Qty 7

0

48

Echo 89581203930

SCREWDRIVER, PHILLIPS

$4.49

$

In Stock, only 2 left!

0

49

Echo A605000100

WRENCH, ALLEN 4 MM

$

$

Currently unavailable
