CS-670 - Echo Chainsaw (SN: C15103001001 - C15103999999) Engine, Crankcase, Cylinder Cover Parts Diagram

Chainsaw

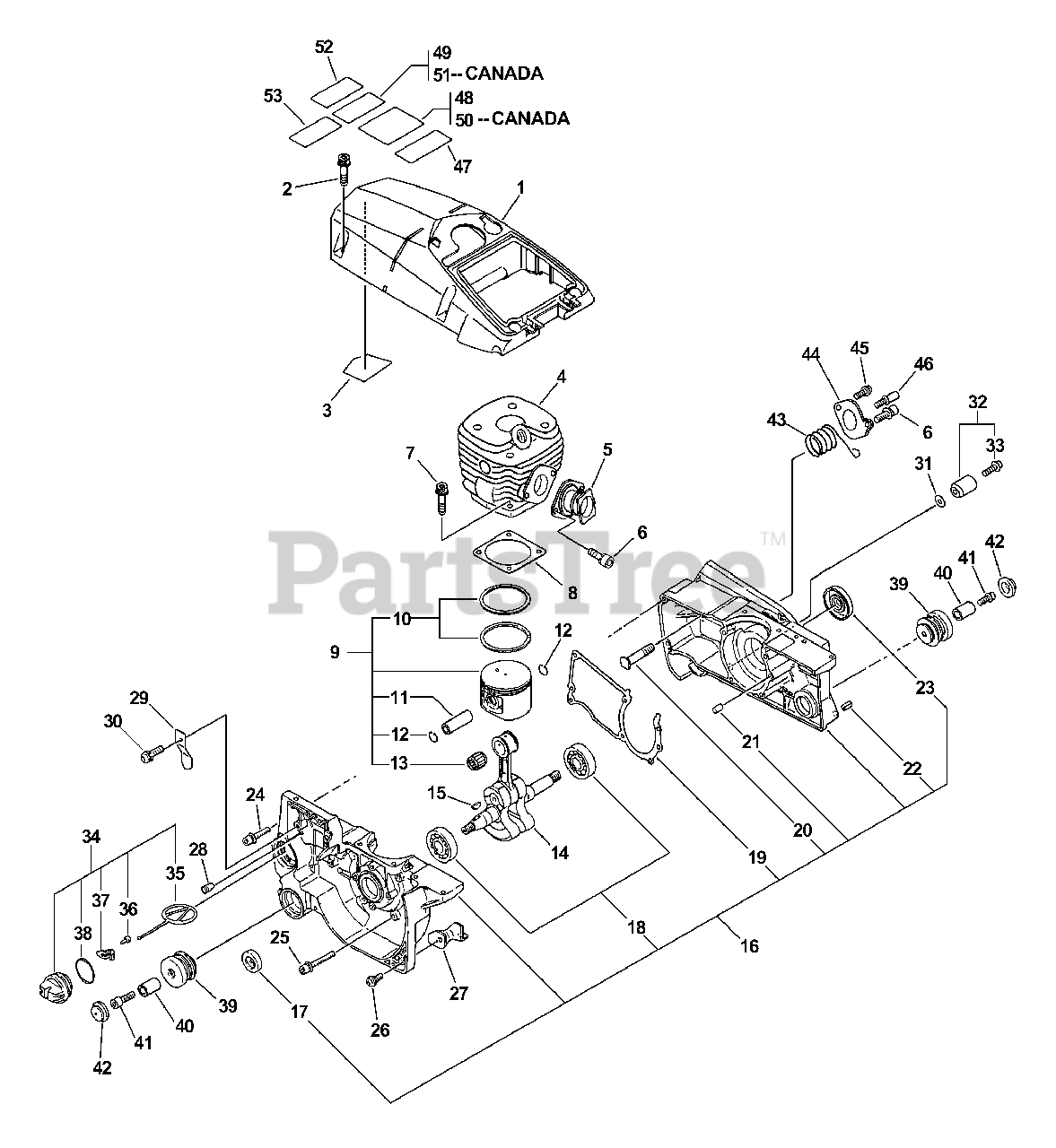

Engine, Crankcase, Cylinder Cover Parts Diagram

  • Title

1

Echo A160000210

COVER, ENGINE
(Superseded to A160000211)

$42.99

$

Usually ships in 2-4 days

0

2

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

3

Echo V341000010

SHIELD, HEAT

$4.99

$

Usually ships in 2-4 days

0

4

Echo A130000170

CYLINDER
(Superseded to A130000171)

$134.99

$

Usually ships in 2-4 days

0

5

Echo A202000010

BELLOWS, INTAKE
(Superseded to A202000011)

$21.99

$

Usually ships in 2-4 days

0

6

Echo 90016205014

BOLT 5×14

$1.49

$

In Stock, Qty 20+

0

7

Echo 90016205025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

0

8

Echo 10101032431

GASKET, CYLINDER

$2.49

$

In Stock, only 1 left!

0

9

Echo P021002790

PISTON KIT
(Superseded to P021002791)

Note: Includes ITEMS 10-13

$69.99

$

Usually ships in 2-4 days

0

10

Echo 10001132430

RING, PISTON
(Superseded to 10001132431)

$12.99

$

Usually ships in 2-4 days

0

11

Echo V610000000

PIN, PISTON 12

$3.99

$

Usually ships in 2-4 days

0

12

Echo V580000000

RING, SNAP

$0.99

$

Usually ships in 2-4 days

0

13

Echo 10001232430

BEARING, NEEDLE

$13.99

$

Usually ships in 2-4 days

0

14

Echo A011000130

CRANKSHAFT ASSY
(Superseded to A011000250)

$195.99

$

Usually ships in 2-4 days

0

15

Echo 10014230830

KEY, WOODRUFF

$1.49

$

In Stock, Qty 11

0

16

Echo 10020438133

CRANKCASE KIT
(Superseded to 10020438134)

Note: Includes ITEMS 17-23

$

$

Not available

17

Echo 10021219830

SEAL, OIL

$5.49

$

In Stock, only 1 left!

0

18

Echo 90081036202

BEARING, BALL 6202

$9.99

$

In Stock, Qty 6

0

19

Echo 10024232430

GASKET, CRANKCASE

$5.99

$

Usually ships in 2-4 days

0

20

Echo 43301119831

STUD, GUIDE BAR 8

$2.99

$

In Stock, only 2 left!

0

21

Echo 10021502830

PIN, LOCATING 5×10

$0.99

$

Usually ships in 2-4 days

0

22

Echo 90034550010

PIN, SPRING 5×10

$1.49

$

Usually ships in 2-4 days

0

23

Echo 10021232430

SEAL, OIL

$5.99

$

Usually ships in 2-4 days

0

24

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

25

Echo 90016205035

BOLT M5×35

$1.49

$

In Stock, Qty 6

0

26

Echo 90023805014

SCREW 5×14

$0.99

$

In Stock, Qty 12

0

27

Echo V401000060

CUSHION 5

$12.99

$

Usually ships in 2-4 days

0

28

Echo 436114-13930

VENT ASSY
(Superseded to 43611413930)

$6.49

$

Usually ships in 2-4 days

0

29

Echo V150000570

PLATE, EYE

$2.49

$

In Stock, only 1 left!

0

30

Echo 90024204008

SCREW 4×8

$0.99

$

In Stock, Qty 8

0

31

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

32

Echo 43300019831

CHAIN CATCHER KIT
(Superseded to 43300019832)

Note: Includes ITEM 33

$2.99

$

In Stock, Qty 6

0

33

Echo 90022005018

SCREW 5×18

$0.99

$

In Stock, Qty 5

0

34

Echo 43600139232

CAP ASSY, OIL
(Superseded to P021044580)

Note: INCLUDES ITEMS 35-38

$2.99

$

In Stock, Qty 20+

0

35

Echo A365-000050

CONNECTOR, CAP L= 60 MM
(Superseded to A365000050)

$2.49

$

In Stock, Qty 20+

0

36

Echo 90024603008

SCREW, TAPPING 3×8

$

$

Not available

37

Echo 13105019830

RETAINER, CONNECTOR
(Superseded to Discontinued)

$

$

Not available

38

Echo 90072502025

O-RING

$2.49

$

In Stock, only 2 left!

0

39

Echo V420000530

CUSHION

$7.49

$

In Stock, Qty 12

0

40

Echo V353000110

COLLAR 5

$3.49

$

In Stock, Qty 7

0

41

Echo 90010505025

BOLT 5×25

$1.49

$

In Stock, Qty 19

0

42

Echo 10091819830

CAP, CUSHION

$1.99

$

In Stock, Qty 9

0

43

Echo V450000150

SPRING, COMPRESSION

$8.99

$

In Stock, Qty 5

0

44

Echo V150000750

PLATE, EYE

$4.49

$

Usually ships in 2-4 days

0

45

Echo 90016204008

BOLT 4×8

$1.49

$

In Stock, Qty 8

0

46

Echo V203000050

BOLT 5

$2.49

$

Usually ships in 2-4 days

0

47

Echo 89019131731

LABEL, KICK BACK WARNING

$5.99

$

Usually ships in 2-4 days

0

48

Echo X524000720

LABEL
(Superseded to Discontinued)

$

$

Not available

49

Echo 89019130131

LABEL, UL - KICK BACK

$3.99

$

Usually ships in 2-4 days

0

50

Echo X524000710

LABEL - BAR & CHAIN
(Superseded to X524000711)

$5.99

$

Usually ships in 2-4 days

0

51

Echo X505000460

LABEL, KICK BACK - FRENCH

$3.99

$

Usually ships in 2-4 days

0

52

Echo 89017639431

LABEL, NOISE - ENGLISH/FRENCH

$3.99

$

Usually ships in 2-4 days

0

53

Echo X505000450

LABEL, KICK BACK

$4.49

$

Usually ships in 2-4 days

0
