CS-670 - Echo Chainsaw (SN: C15103001001 - C15103999999) Clutch Parts Diagram

Chainsaw

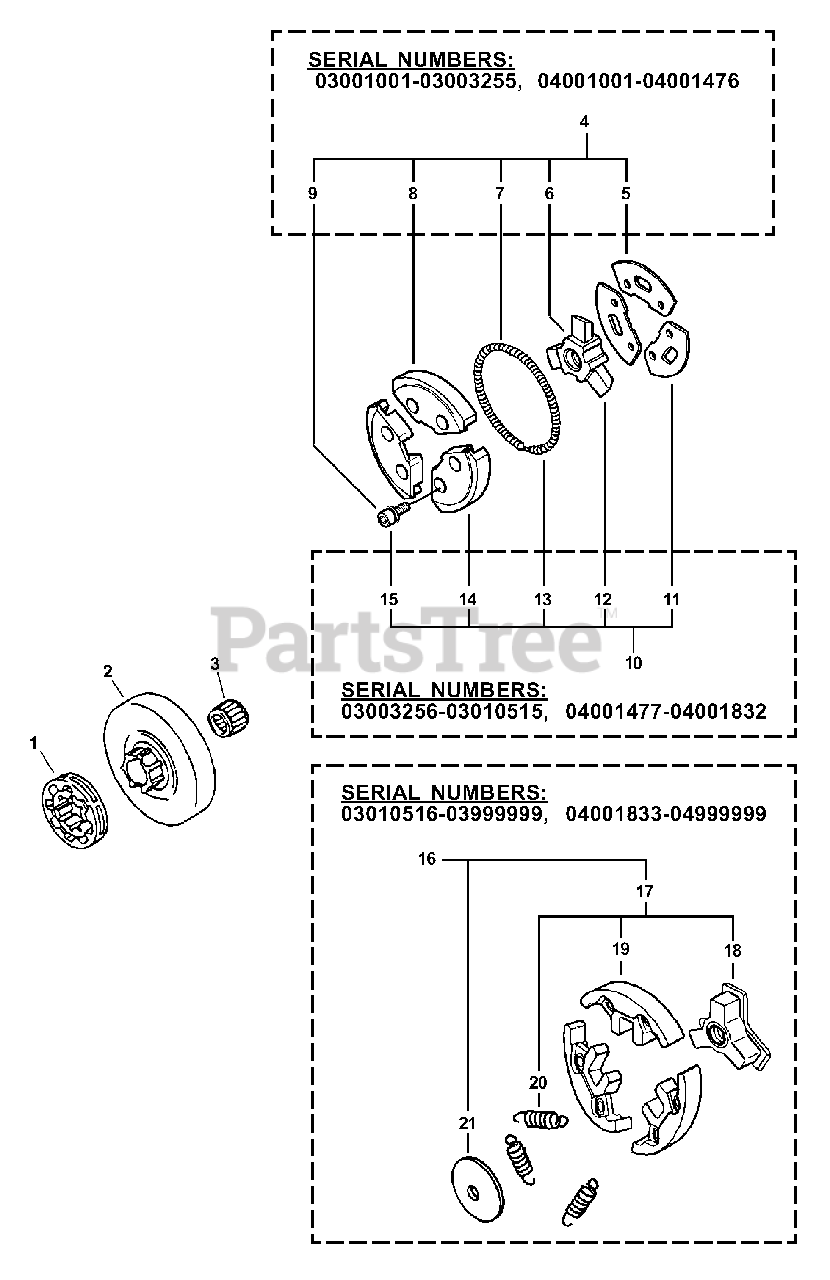

Clutch Parts Diagram

  • Title
1

Echo 682100

SPROCKET, RIM 3/8"×7T

$14.99

$

In Stock, only 3 left!

0

2

Echo 17510532430

DRUM, CLUTCH
(Superseded to 17510532431)

$40.99

$

In Stock, only 3 left!

0

3

Echo 17501232430

BEARING, NEEDLE

$13.99

$

In Stock, only 1 left!

0

4

Echo A056000040

CLUTCH ASSY
(Superseded to A056000041)

Note: INCLUDES ITEMS 5-9 S/N: 03001001-03003255, 04001001-04001476

$79.99

$

In Stock, only 1 left!

0

5

Echo A551000030

PLATE, CLUTCH

Note: S/N: 03001001-03003255, 04001001-04001476

$2.49

$

Usually ships in 2-4 days

0

6

Echo A552000030

HUB, CLUTCH
(Superseded to A552000031)

Note: S/N: 03001001-03003255, 04001001-04001476

$12.99

$

Usually ships in 2-4 days

0

7

Echo V451000260

SPRING, TENSION

Note: S/N: 03001001-03003255, 04001001-04001476

$4.99

$

Usually ships in 2-4 days

0

8

Echo P021002890

CLUTCH SHOE SET

Note: S/N: 03001001-03003255, 04001001-04001476

$55.99

$

Usually ships in 2-4 days

0

9

Echo 90010504006

BOLT 4×6

Note: S/N: 03001001-03003255, 04001001-04001476

$0.99

$

In Stock, Qty 6

0

10

Echo A056000041

CLUTCH ASSY
(Superseded to P021008200)

Note: Includes ITEMS 11-15 S/N: 03003256-03010515, 04001477-04001832

$79.99

$

In Stock, only 1 left!

0

11

Echo A551000030

PLATE, CLUTCH

Note: S/N: 03003256-03010515, 04001477-04001832

$2.49

$

Usually ships in 2-4 days

0

12

Echo A552000031

HUB, CLUTCH

Note: S/N: 03003256-03010515, 04001477-04001832

$12.99

$

Usually ships in 2-4 days

0

13

Echo V451000260

SPRING, TENSION

Note: S/N: 03003256-03010515, 04001477-04001832

$4.99

$

Usually ships in 2-4 days

0

14

Echo P021002890

CLUTCH SHOE SET

Note: S/N: 03003256-03010515, 04001477-04001832

$55.99

$

Usually ships in 2-4 days

0

15

Echo 90010504006

BOLT 4×6

Note: S/N: 03003256-03010515, 04001477-04001832

$0.99

$

In Stock, Qty 6

0

16

Echo P021008200

CLUTCH ASSY

Note: Includes ITEMS 17-21 S/N: 03010516-03999999, 04001833-04999999

$79.99

$

In Stock, only 1 left!

0

17

Echo A056000050

CLUTCH ASSY

Note: INCLUDES ITEMS 18-20 S/N: 03010516-03999999, 04001833-04999999

$68.99

$

Usually ships in 2-4 days

0

18

Echo A552000040

HUB, CLUTCH

Note: S/N: 03010516-03999999, 04001833-04999999

$16.99

$

Usually ships in 2-4 days

0

19

Echo P021007790

SHOE SET, CLUTCH (3PCS)

Note: S/N: 03010516-03999999, 04001833-04999999

$41.99

$

Usually ships in 2-4 days

0

20

Echo V451000430

SPRING, TENSION

Note: S/N: 03010516-03999999, 04001833-04999999

$3.49

$

In Stock, only 3 left!

0

21

Echo A551000051

PLATE, CLUTCH

Note: S/N: 03010516-03999999, 04001833-04999999

$9.99

$

Usually ships in 2-4 days

0
