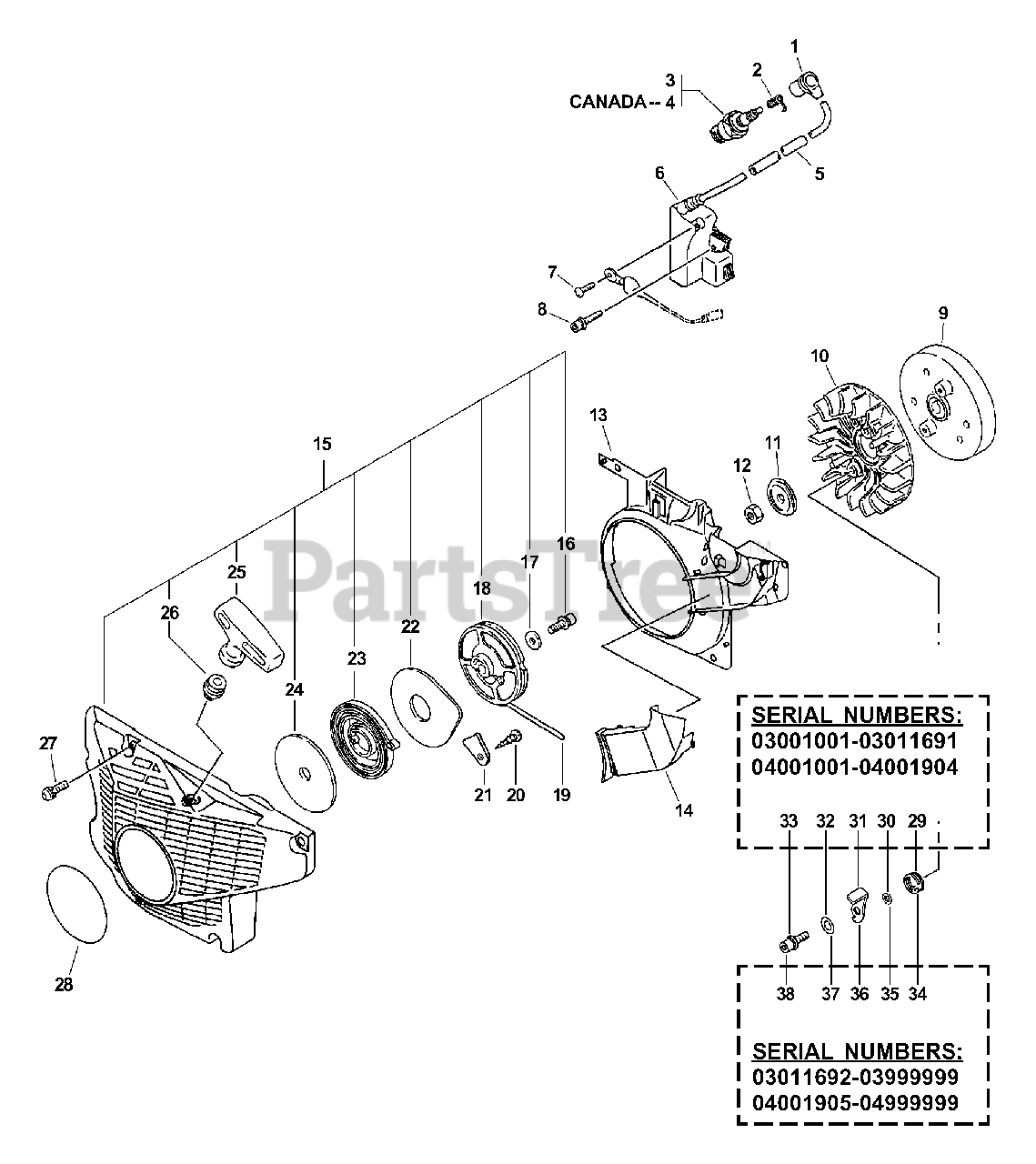

CS-670 - Echo Chainsaw (SN: 04001001 - 04999999) Ignition, Starter, Flywheel Parts Diagram

Chainsaw

Ignition, Starter, Flywheel Parts Diagram

  • Title

1

Echo A427000010

CAP, SPARK PLUG
(Superseded to A427000011)

$2.99

$

In Stock, Qty 20+

0

2

Echo A426000010

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 10

0

3

Echo 15901716431

SPARK PLUG -- CJ-6Y
(Superseded to Discontinued)

$

$

Not available

4

Echo 15901010230

SPARK PLUG -- BPMR-7A

$3.49

$

In Stock, Qty 20+

0

5

Echo 15061132430

TUBE
(Superseded to 15661119830)

$1.99

$

Usually ships in 2-4 days

0

6

Echo 15660132631

COIL, IGNITION
(Superseded to 15660132632)

$138.99

$

In Stock, only 1 left!

0

7

Echo 90024204008

SCREW - 4X8

$0.99

$

In Stock, Qty 8

0

8

Echo 90016204020

SCREW - 4X20

$1.49

$

In Stock, Qty 20+

0

9

Echo 15680032631

FLYWHEEL

$104.99

$

Usually ships in 2-4 days

0

10

Echo 10152132330

FAN

$14.99

$

Usually ships in 2-4 days

0

11

Echo 10014319830

WASHER - CUP

$1.49

$

In Stock, Qty 6

0

12

Echo 90050000008

NUT - 8

$0.99

$

In Stock, Qty 20+

0

13

Echo A172000130

COVER, FAN

$11.99

$

Usually ships in 2-4 days

0

14

Echo A161000020

DUCT, AIR

$6.49

$

Usually ships in 2-4 days

0

15

Echo P021002811

STARTER ASSY

Note: Includes ITEMS 16-26

$80.99

$

Usually ships in 2-4 days

0

16

Echo 90016205014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

17

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

18

Echo 17721532330

REEL, ROPE

$8.99

$

In Stock, only 1 left!

0

19

Echo 17722607060

ROPE, STARTER - 4X950

Note: RePower BULK OPTION: 99944450000

$10.99

$

In Stock, Qty 9

0

20

Echo 90025304008

SCREW - 4X8

$0.99

$

In Stock, only 2 left!

0

21

Echo 43314415130

RETAINER, BRAKE BAND

$1.99

$

In Stock, only 1 left!

0

22

Echo 17722107060

PLATE, STARTER

$10.99

$

In Stock, only 1 left!

0

23

Echo 17722002834

SPRING, REWIND

$21.99

$

In Stock, Qty 9

0

24

Echo 17722102830

PLATE, STARTER

$5.99

$

In Stock, Qty 8

0

25

Echo 17722830830

GRIP, STARTER
(Superseded to 17722830832)

$5.99

$

Usually ships in 2-4 days

0

26

Echo 17722707060

GUIDE, ROPE

$17.99

$

Usually ships in 2-4 days

0

27

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

28

Echo 89011817930

LABEL - ECHO

$7.99

$

In Stock, Qty 9

0

29

Echo 17723419830

SPRING, RETURN
(Superseded to 17723419832)

$3.49

$

In Stock, Qty 6

0

30

Echo 17724719830

SPACER

$1.99

$

Usually ships in 2-4 days

0

31

Echo 17721832630

PAWL, STARTER
(Superseded to P021009870)

$16.99

$

In Stock, only 1 left!

0

32

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

33

Echo 90016205014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

34

Echo 17723419832

SPRING, RETURN

$3.49

$

In Stock, Qty 6

0

35

Echo V353000191

SPACER, PAWL
(Superseded to V353000192)

$3.49

$

Usually ships in 2-4 days

0

36

Echo 17721832631

PAWL, STARTER
(Superseded to 17721832632)

$5.49

$

Usually ships in 2-4 days

0

37

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

38

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0
